Ranger Raptor & Wildtrak

$1,290.00

Ranger Raptor & Wildtrak

Next-Gen

Behind Grille Light Bar Kit

Ultra Vision

Description

Ranger Raptor & Wildtrak

Next-Gen

Behind Grille Light Bar Kit

Ultra Vision

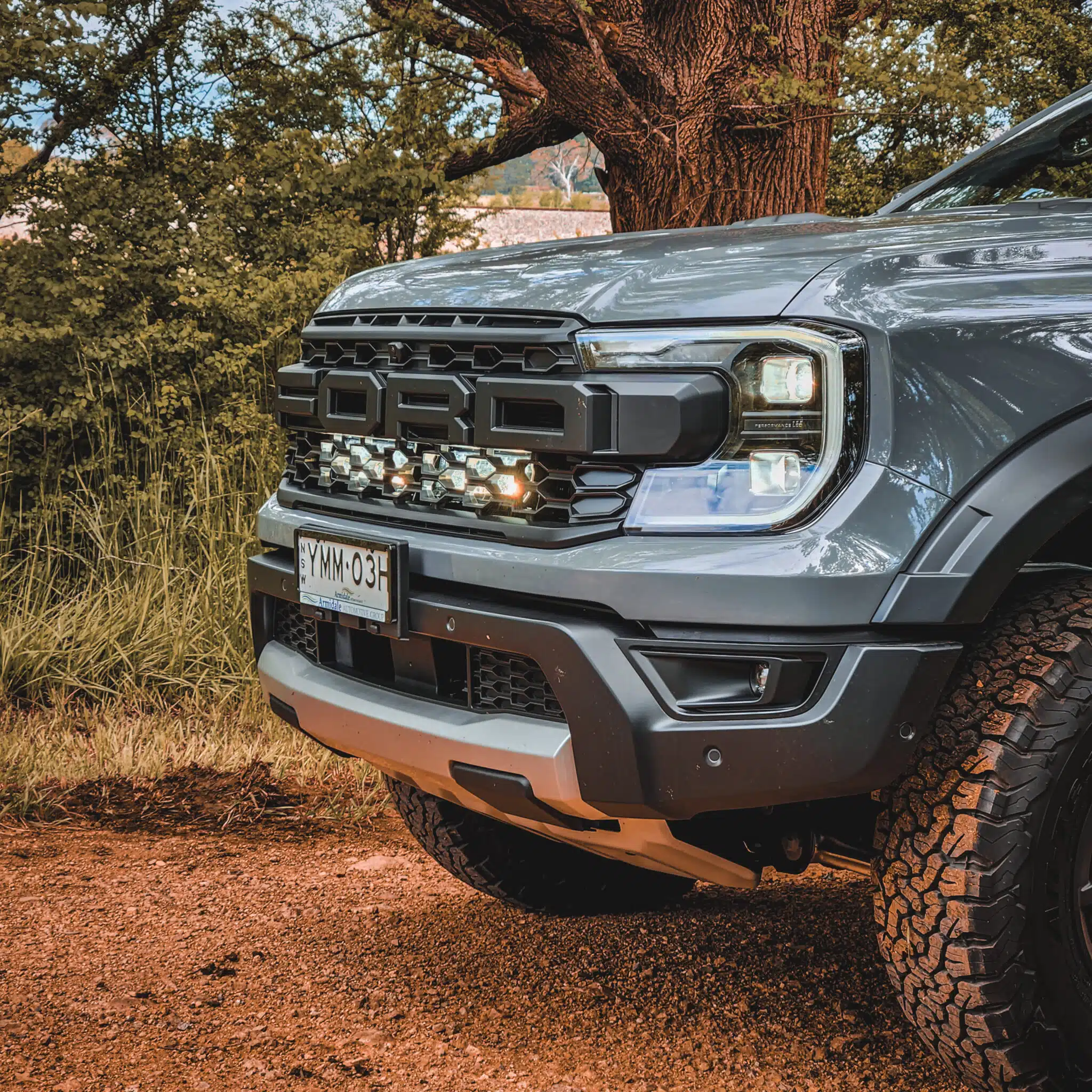

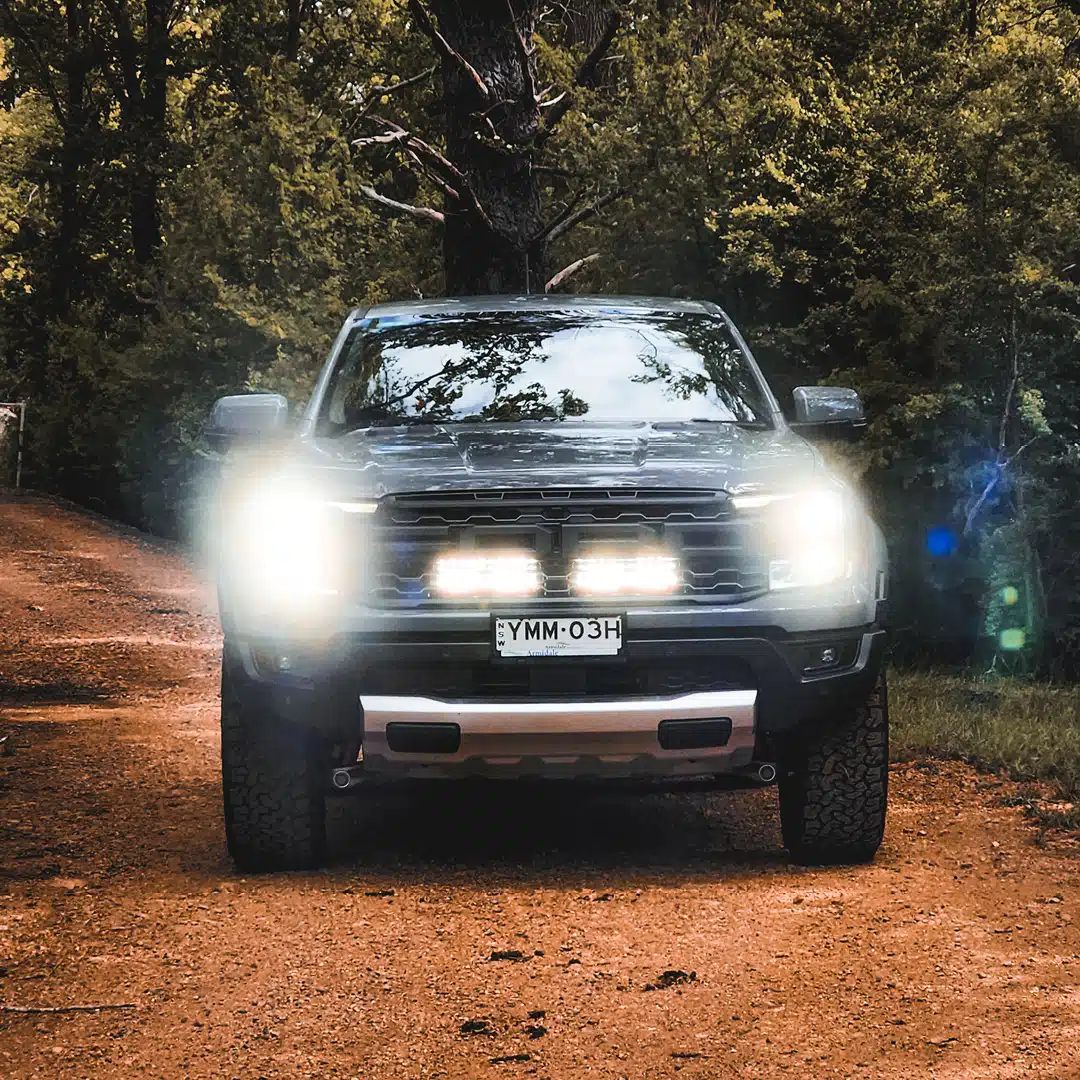

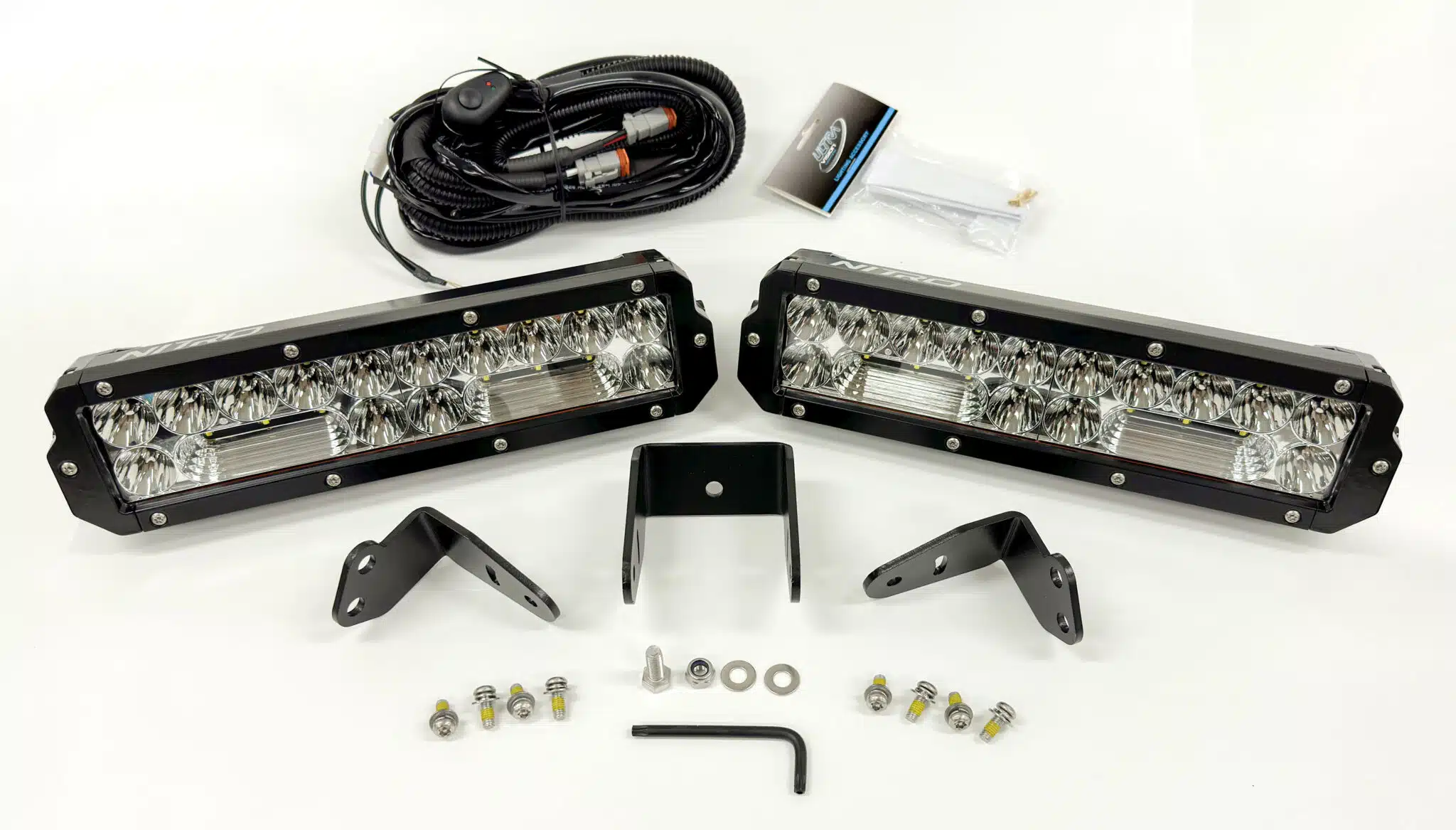

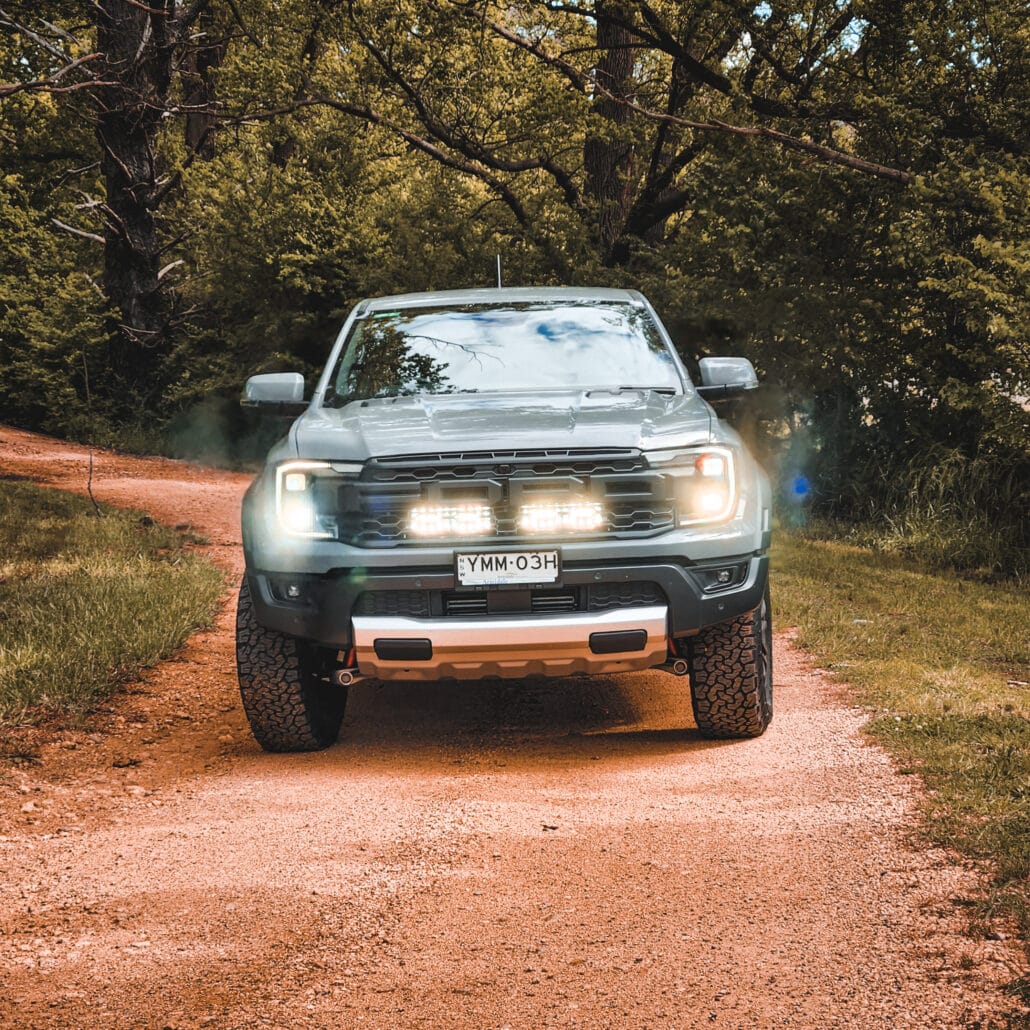

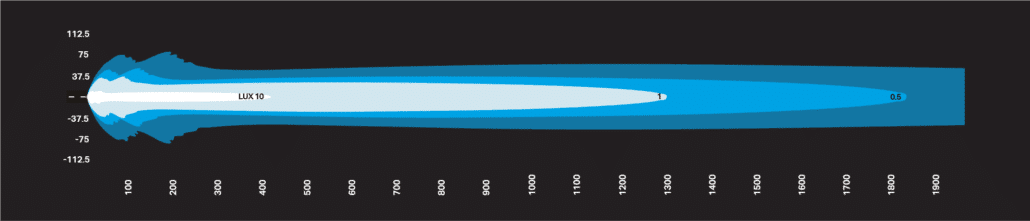

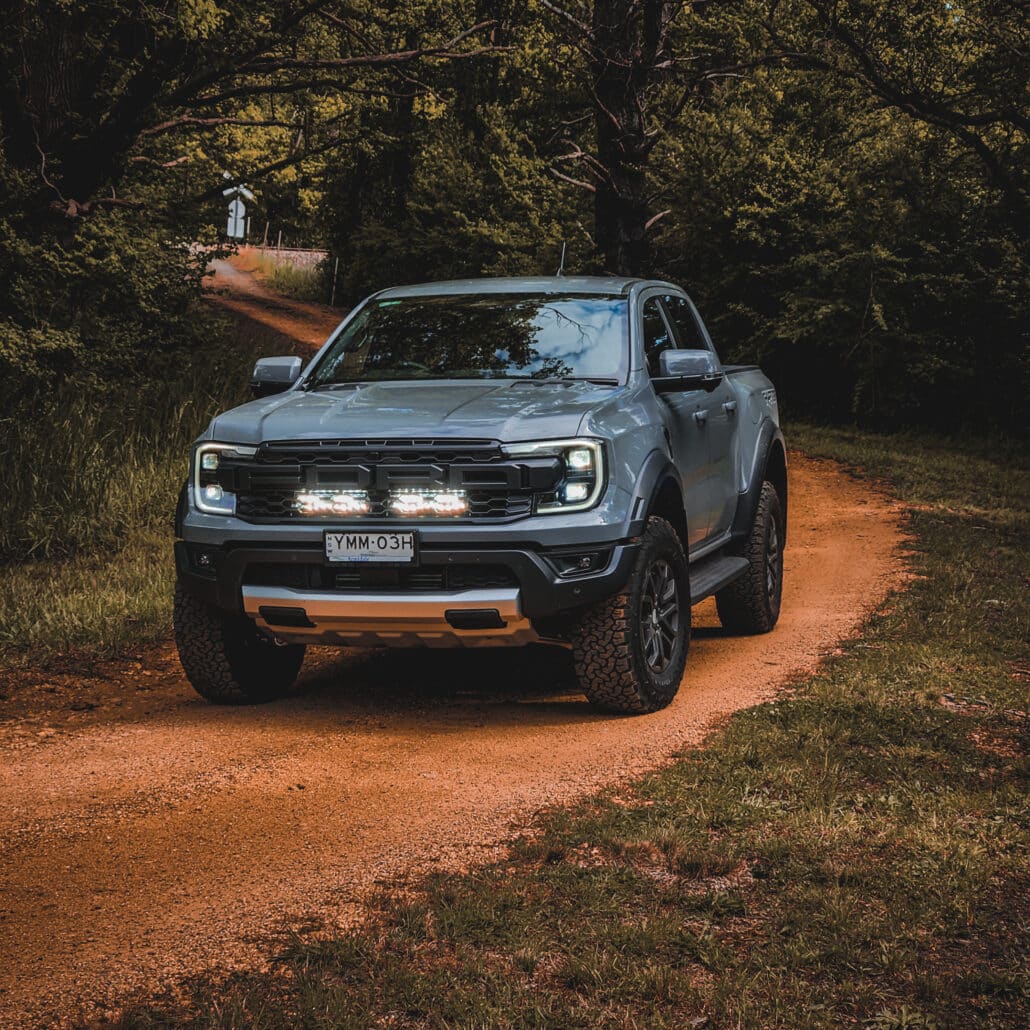

Ranger Raptor & Wildtrak integrate the power of Widr® Optic’s unique reflector into your Ranger Raptor without the need for a bull bar. Crafted in Australia for durability, this reflector delivers market-leading output with an impressive 1300 m of combined usable light. Enjoy hassle-free installation with no cutting or drilling required, ensuring a solid fitment that remains stable on rough roads. Backed by a 5-year warranty, this integration kit is specifically designed to seamlessly conceal two NITRO Maxx 105 W 13″ LED Light Bars on your Ranger. Engineered with precision, the bracket system mounts securely to existing body points, requiring only the temporary removal of the grille shroud beneath the bonnet for access. Plus, with the included high-beam plug & play wiring connection, installation is quick and straightforward. This comprehensive kit includes everything you need, from purpose-built Ranger light bar brackets to a complete twin wiring harness with inline fuse & cabin switch, mounting hardware, and fitting instructions. Illuminate your path confidently with Ultra Vision’s Ranger Raptor integration kit.

Ranger Raptor & Wildtrak

105W NITRO LIGHT BAR SPECIFICATIONS
Wattage 100 Watts
Light Source 20 x 5w LED’s
Light Output – Raw 12,320 Lumens
Light Output – Effective 8,865 Lumens
Voltage 9-36V
Current Draw 8A
Operating Temperature -40 to 80 Deg C
Waterproof Rating IP68
Connector Type Plugs 2 Pin std Deutsch
Housing 6063 T5 Aluminium
Outer Lens Construction Polycarbonate
Brackets Sliding Base / Side Mounts
Colour Temperature 5700K
Lifespan 50,000 Hours
Dimensions 324 x 92 x 84mm
Net Weight 1.9 kg
Beams Available Combo and Widr
Warranty 5 Years
Harness Included Yes

https://4wdlightsandcamping.com.au/product/nitro-80-lens-cover/

https://www.facebook.com/4wdlightsandcamping.com.au

Additional information

Weight 1 kg
Dimensions 10 × 10 × 10 cm
