Driving Lights


NITRO 140 Maxx LED Driving Lights

$1,439.00 – $1,549.00

Price Per Pair

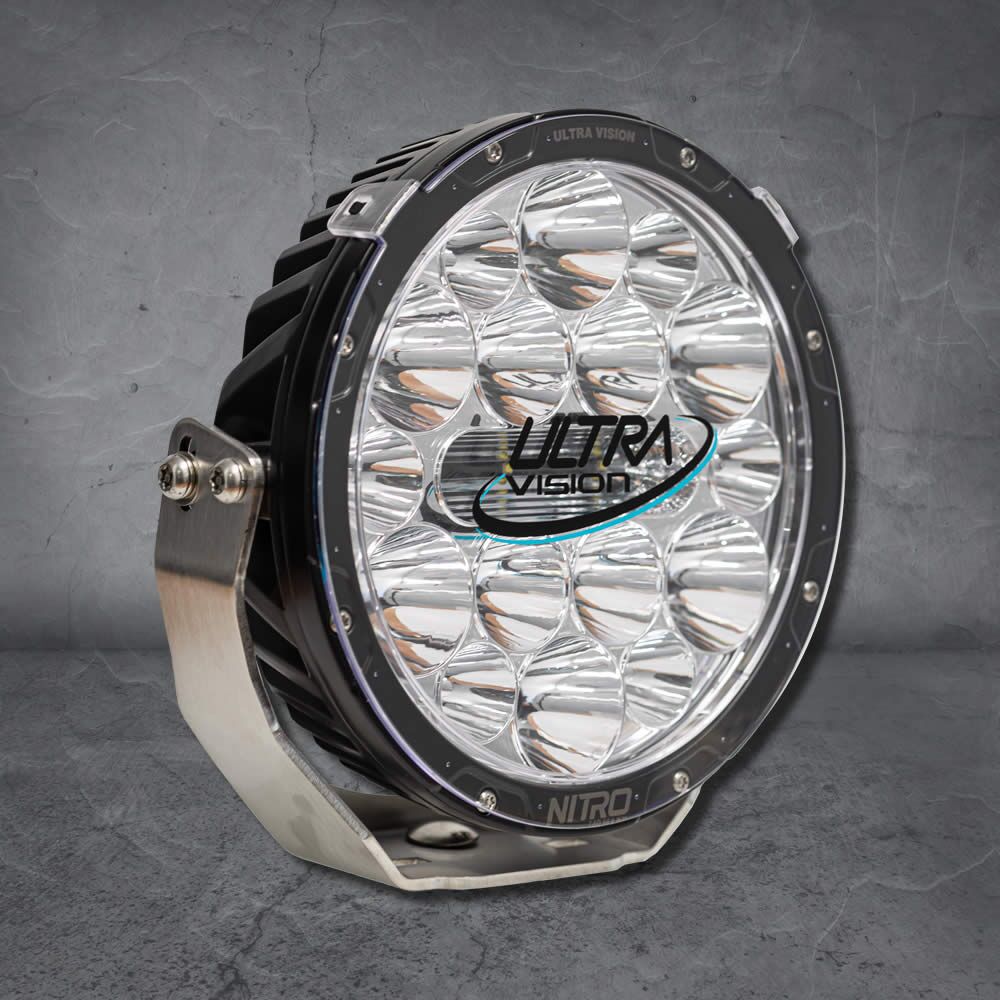

Driving Lights 140w Ultra-Vision Nitro Maxx LED 9″ 229mm (Pair)

$1,439.00 – $1,549.00

Price Per Pair

Driving Lights 140 w new Unrivaled performance.

  • These Driving Lights have NEW WIDR optic for powerful width outputs and distance.
  • NEW black brackets for a slick new look.
  • Lifetime warranty on all brackets.
  • UPDATED usable light – now 1600 M.
  • Designed and made in Australia for the toughest environments on earth.
  • Contrl® optic for optimum light pattern and unmatched penetrating beam.
  • Available with either 4500 k or 5700 k Colour Temperature.
  • 5 Year Warranty.
  • A wiring harness and anti-theft nuts are included free of charge.
  • Includes clear protective lens covers.

Now with improved performance.

The NITRO 140 Maxx is the latest generation of high-performance LED lighting. Utilizing a sophisticated Contrl® optic the light usage is optimized to give width and distance from one reflector. The Widr® option further increases the width, but still giving more than 1 lux at 1.6 kms. The new slim body design allows for fitment to the majority of vehicles and the reduced weight further improves options. Utilizing the proven stainless steel mounting bracket ensures years of trouble-free life. Units are supplied complete with clear poly carbonate lens covers, wiring harness and anti-theft nuts.

By investing in Nitro 140 Maxx’s you can be confident you’ve made the right choice.

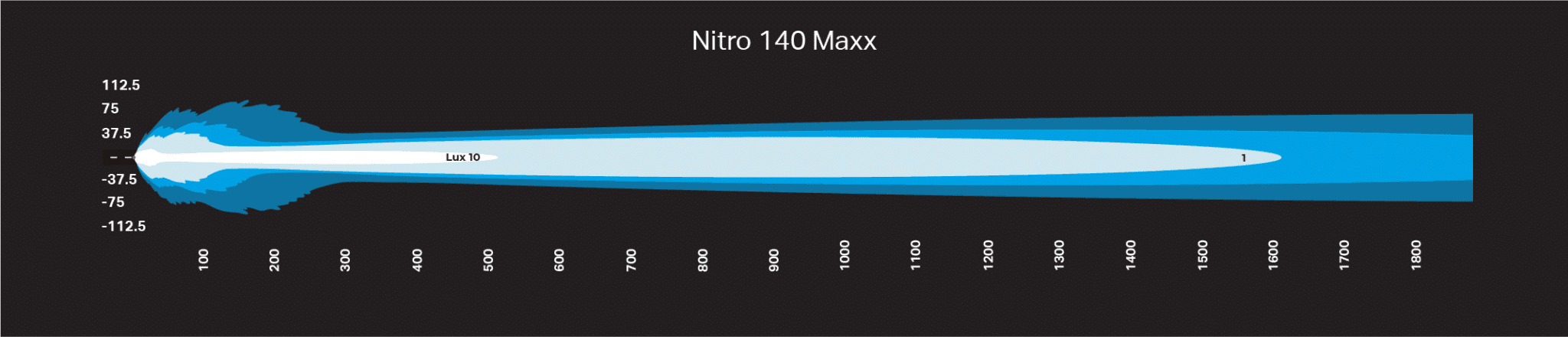

Beam Patterns

Need a Wiring Diagram?


Wattage 140 Watts
Light Source 19 x High Power LED’s (per light)
Light Output – Raw 28,328 Lumens (per pair)
Light Output – Effective 22,520 Lumens (per pair)
Voltage 9V-36V
Current Draw 10A @ 13.5V
Operating Temperature -40°C to +80°C
Waterproof rating IP68
Connector Type Plugs 2 Pin standard Deutsch
Housing Die-Cast Alloy
Outer Lens Construction Polycarbonate
Brackets 4mm Stainless Steel
Colour Temperature 4500K or 5700K
Lifespan 50,000 Hours
Diameter 230mm
Net Weight 2.95kg
Mounting Suitable All types
Beam Type Widr®
Warranty 5 Years
Harness and anti-theft nuts included Yes
Widr, 5700K, Black Rim PVM2314LEDW/PR
Widr, 4500K, Black Rim PVM2314LEDW4/PR
Widr, 5700K, Chrome Rim PVM2314LEDW-C/PR
Widr, 4500K, Chrome Rim PVM2314LEDW4-C/PR



Additional information

Weight N/A
Dimensions N/A

WiDr Beam

Colour Temperature

5700k, 4500k

Rim Colour

Black, Chrome
