Description

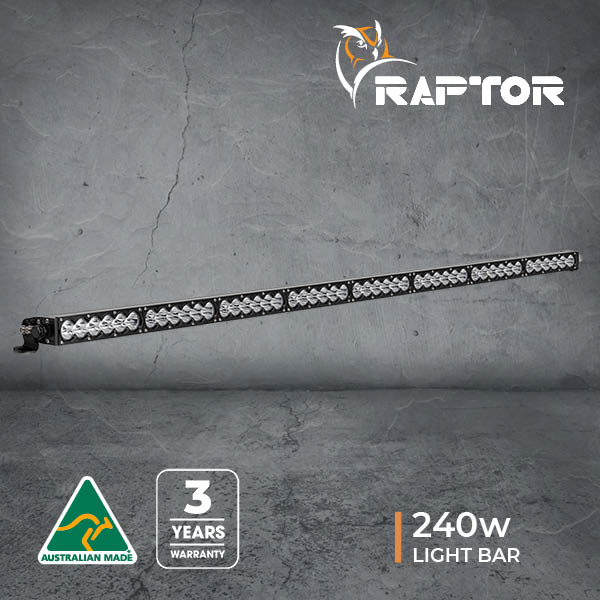

Light Bar 240w Raptor LED 51″
$899.00
Light Bar 240w made in Australia – Designed and built for the toughest environments on earth
Available with either 4000k or 5700k Colour Temperature
3 Year Warranty
Suits DV12HD Harness – Sold Separately
The RAPTOR LED Light Bars are manufactured from high pressure extruded aluminium, giving an extremely strong but light body. This, along with a high impact polycarbonate lens make the Raptor light bars exceptionally tough. The open-optic reflector gives a combination beam with very good distance and peripheral width of over 100° from one lamp type.
To ensure maximum driver comfort the light bars are available with either 4000k or 5700k Colour Temperature.
All RAPTOR lamps come complete with stainless steel pivot mounting brackets and stainless steel fixings. As with all Raptor products, the light bars are manufactured in Australia and covered by a 3-year warranty for total peace of mind.

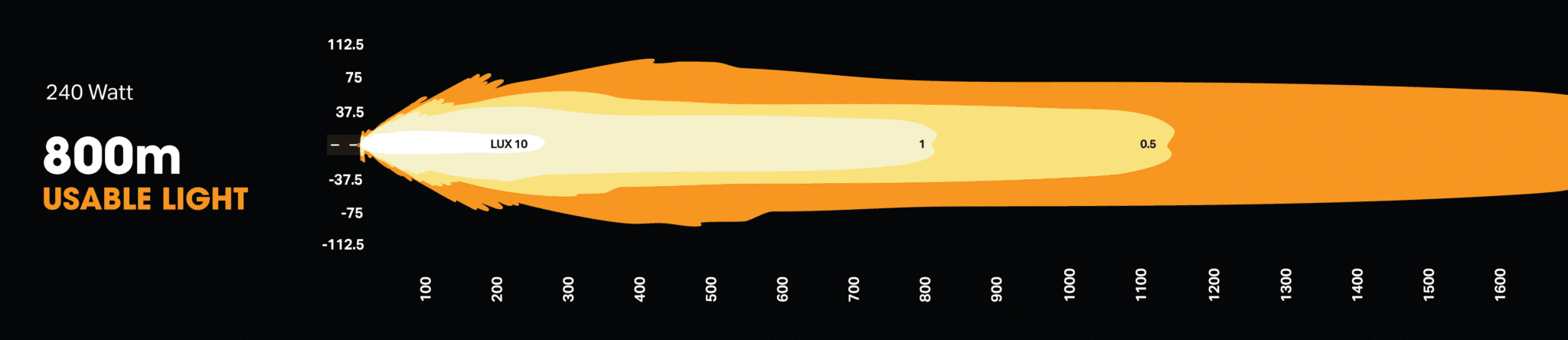

Beam Pattern
Need a Wiring Diagram?
GET ONE HERE
| 240W RAPTOR LIGHT BAR SPECIFICATIONS | |
|---|---|
| Wattage | 240 Watts |
| Light Source | 48 x 5w LED’s |
| Light Output – Raw | 28,850 Lumens |
| Light Output – Effective | 23,070 Lumens |
| Voltage | 9-36V |
| Current Draw | 19A |
| Operating Temperature | 40degC to +80degC |
| Waterproof Rating | IP67 |
| Connector Type Plug | 2 Pin Heavy Duty Deutsch |
| Housing | Aluminium |
| Lens Construction | Polycarbonate |
| Brackets | Stainless Steel |
| Colour Temperature | 4000K or 5700K |
| Lifespan | 50,000 Hours |
| Dimensions | 1303 x 45 x 73mm |
| Net Weight | 3.7kg |
| Mounting Suitable | Base Mounts |
| Beam Types | Combo or Spread |
| Warranty | 3 Years |
| Harness Included | Harness not included, purchased separately. Harness to suit: DV12H |
