Description
IGNITE 9″ ROUND LED DRIVING LAMP DRIVING BEAM 9-36V 120W BLACK 12,000Lms
Additional Information
9″ Round LED SPOTLIGHTS Hulk Professional Round LED Driving Lamp 9 – 36 Volt 120 Watt.
With White or Amber Front Position Lamp function – Black Fascia.
Driving Beam Pattern.
4 x 20 Watt High Intensity CREE LED’s and 4 x 10 Watt High Intensity CREE LED’s.
as a result there is 12,000 Raw and 10,200 Effective Lumens and 5,700 K.
1 Lux @ 469 m and 215,000cd Peak Beam Intensity.
Current Draw: 8.9 amp @ 12 Volt and 4.3amp @ 24 Volt.
Combined Polycarbonate Reflector Focusing Optic Drive Technology and Proprietary Polycarbonate TIR.
Optical System Reflector Technology with Lexan Polycarbonate Lens.
Integrated Electronic Thermal Management (ETM).
Black Powder coated Die Cast Aluminium Alloy (ADC12) Housing with integrated Heat-Sink, and Pressure Equalizing Vent.
Stainless Steel (SUS304) Multiple Bolt Mount Bracket and Hardware – Black finish.
500 mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant to 15 G
Anti-rust, Corrosion and Freezing Resistance.
50,000 Hours LED Lifespan.
ECE R112 (Ref 45), R10, R7 and CE Approved.
IP68 and IP69K Rating.
Environment Temperature: -40°C ~ +60°C.
9″ Round LED Year Warranty
Weight: 2.1kg
| Specifications | |
| Series | Other |
| Type | LED |
| Shape | Round |
| Voltage | Multivolt |
| Watts | Other |
| Beam Type | Other |
| No. of LED | 8 |
| Mount | Other |

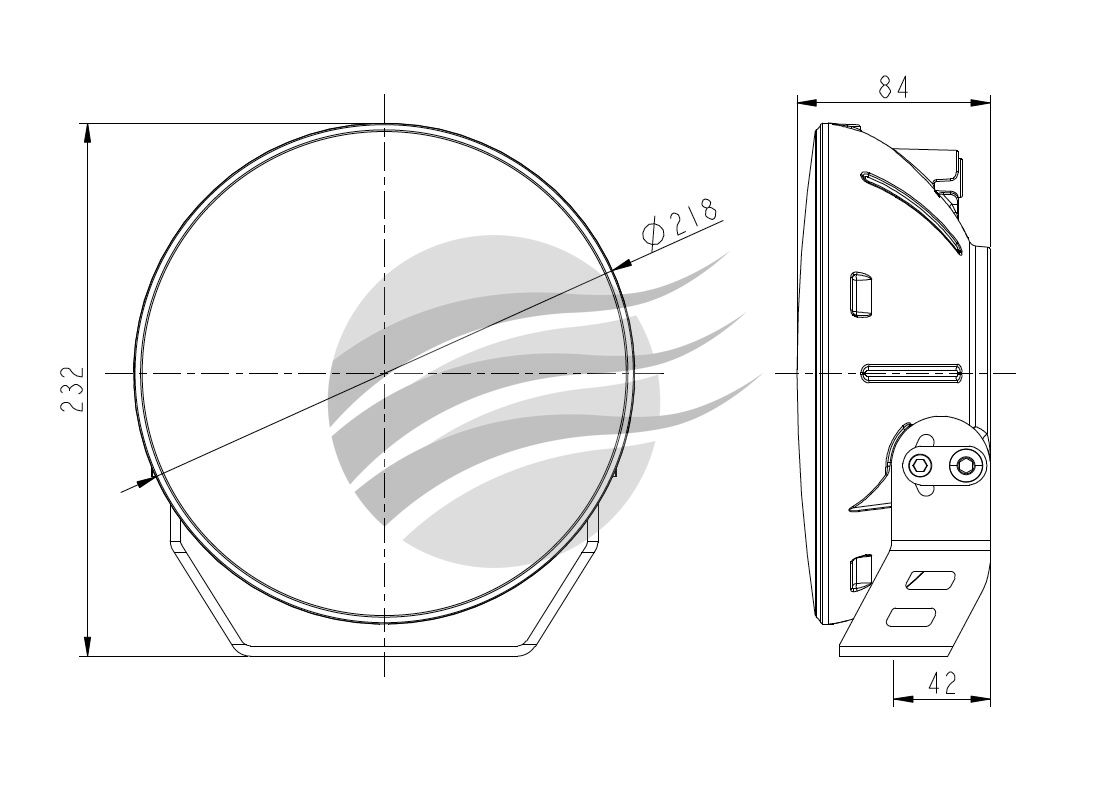

| Width (mm) | 218 |
| Height (mm) | 232 |
| Depth (mm) | 84 |
IDL1210BRS
.
Spare Parts:-
IDL1210A Amber Protective Lens Cover
IDL1210C Clear Protective Lens Cover
