Ultra Vision Nitro 255 Watt

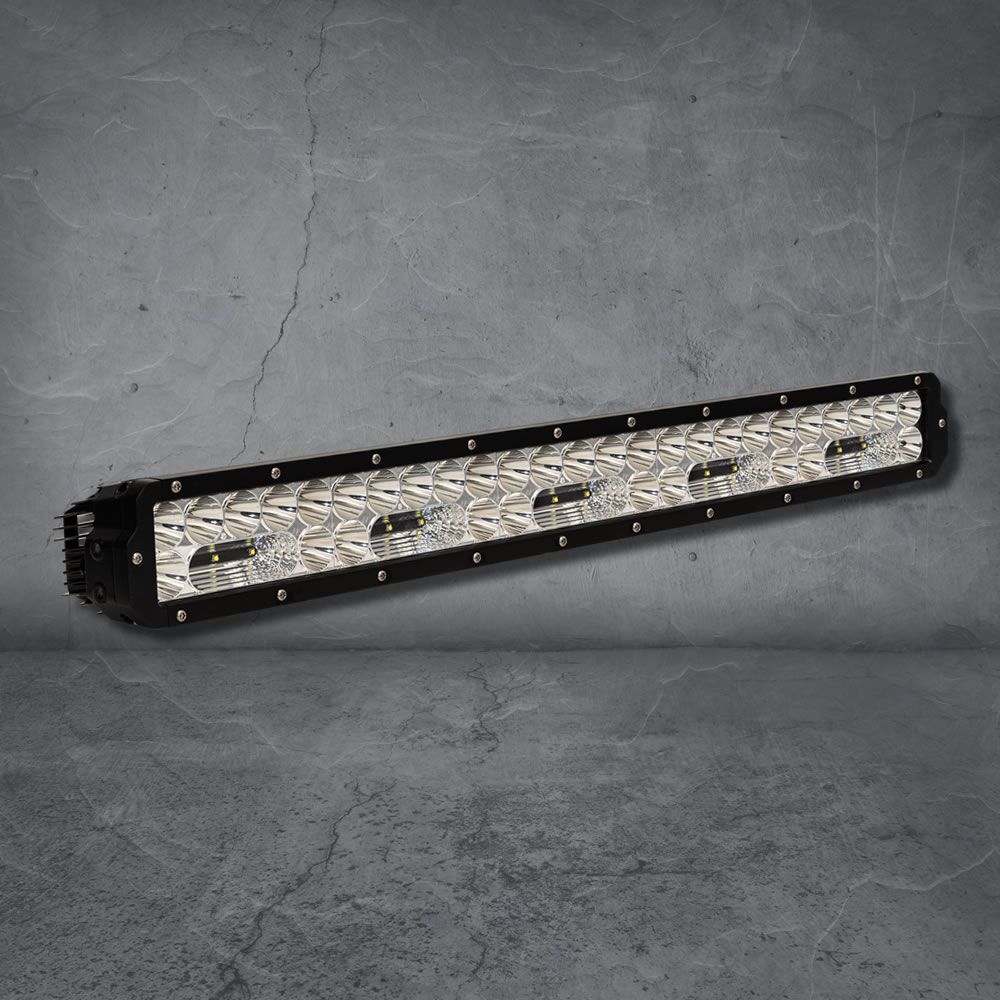

Ultra Vision NITRO 255 Watt LED 30″ 762mm Light Bar


Light Bar 255 Watt Maxx Ultra Vision NITRO 255 Watt LED 30″ 762mm

$1,159.00 – $1,219.00

Light Bar Ultra Vision Nitro 255 Watt with NEW Performance you won’t believe – unrivaled distance and width outputs

NEW Widr® Optic – This unique reflector delivers market leading output, achieving huge distance with excellent spread

NEW Usable light – now 1400 M

Designed and Made in Australia for the toughest environments on earth

Available with either 4500 k or 5700 k Colour Temperature

Full length bracket available with lifetime warranty

Both side and base mounts are available

5 Year Warranty

A wiring harness and anti-theft nuts are included free of charge

Includes clear protective lens covers

The new Ultra Vision Nitro 255 watt Maxx range of light bars now have boosted performance, with the updated 255W LED light bar delivering an increased beam distance of 64%.

The Nitro light bars have become a hugely popular addition to the Nitro Maxx range. Featuring the Widr® optic for width and a Contrl® optic for distance, the Nitro Light Bar takes performance to another level.

Hi/Lo function provides you with an even greater amount of flexibility in a range of driving conditions.

  • The Hi-Beam function utilizes all the LEDs in the light bar using 5700k temperature LEDs: Perfect for open road driving.
  • The Lo-Beam function uses only the spread optics with warmer, 4500k LEDs, reducing glare on road signs and fog.

Both side and base mounts are available, ensuring that fitment is simple in any application.

A wiring harness and anti-theft nuts are supplied with each bar. Please specify base or side mounting at the time of ordering.

Beam Pattern

Need a Wiring Diagram?

Wattage 250 Watts
Light Source 50 x 5w LED’s
Light Output – Raw 30,800 Lumens
Light Output – Effective 22,175 Lumens
Voltage 9-36V
Current Draw 18A
Operating Temp. -40 to 80 Deg C
Waterproof Rating IP68
Connector Type Plug 2 Pin std Deutsch
Housing 6063 T5 Aluminium
Outer Lens Construction Polycarbonate
Brackets Sliding Base / Side Mounts
Colour Temperature 4500K or 5700K
Lifespan 50,000 Hours
Dimensions 745 x 92 x 84mm
Net Weight 4.3kg
Mounting Suitable Base and Side Mount
Beam Types Combo and Widr
Warranty 5 Years
Harness Included Yes






Additional information

Weight N/A
Dimensions N/A
Color Temperature

4500k, 5700K



Mounting Type

Side Mount kit, Base Mount KIT

Rim Colour

Black, Chrome
