Description

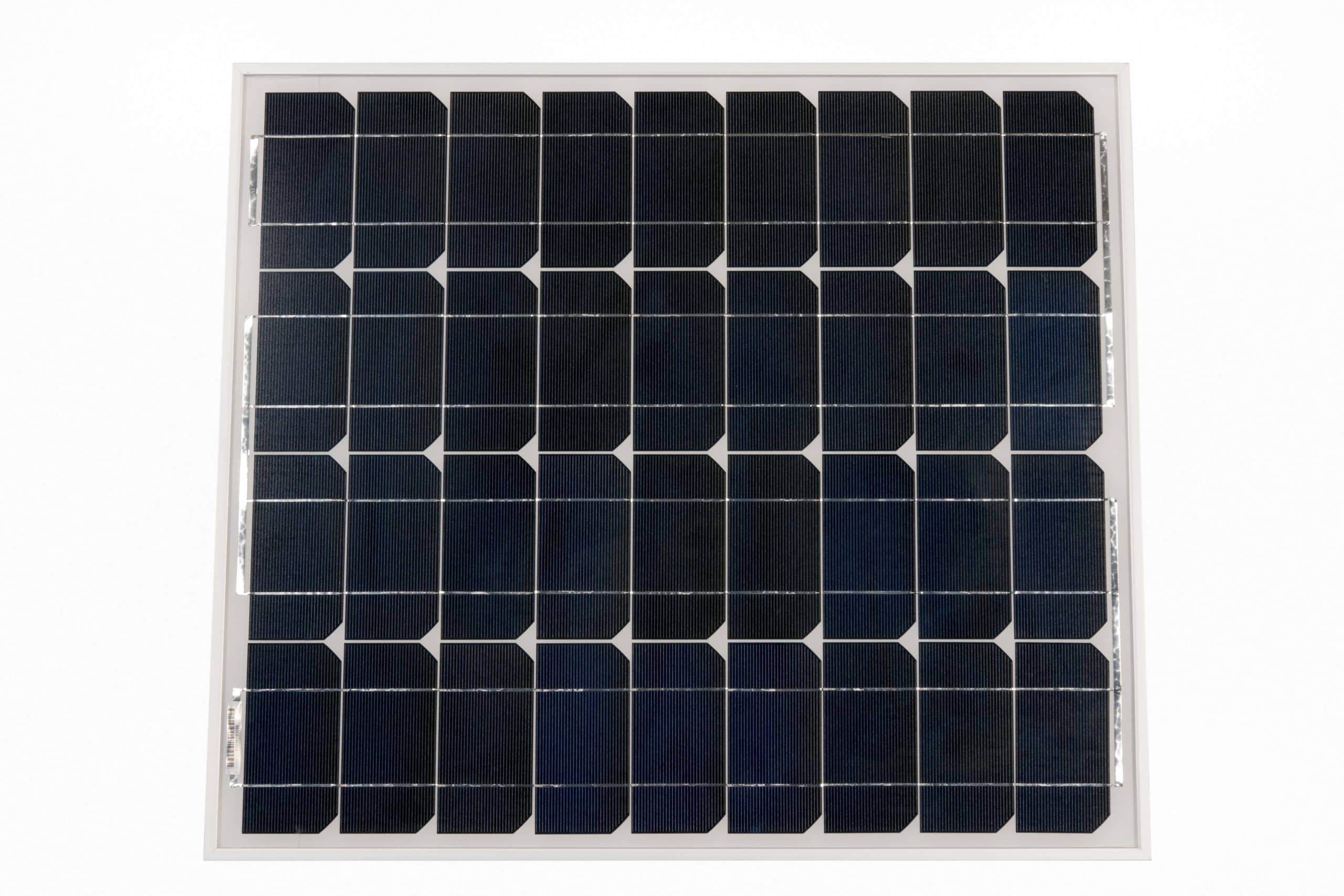

Solar Panels Victron Series 4a and 4b
Solar panels Victron monocrystalline and polycrystalline series 4a and 4b.
BlueSolar Monocrystalline Panels
• Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-Year limited warranty on power output and performance.
• 5-Year limited warranty on materials and workmanship.
• Sealed, waterproof, multi-functional junction box gives high level of safety.
• High performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the
most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of
standard mounting systems.
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors.
Solar Panels Victron
BlueSolar Polycrystalline Panels
Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-Year limited warranty on power output and performance.
• 5-Year limited warranty on materials and workmanship.
• Sealed, waterproof, multi-functional junction box gives high level of safety.
• High performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the
most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of
standard mounting systems.
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors.
| Solar Panels | MOQ 5 | Solar Panel 20W-12V Mono 440x350x25mm series 4a | SPM040201200 | x 450 x 360 | 2.6 | $ 73.00 |
| MOQ 5 | Solar Panel 30W-12V Mono 560x350x25mm series 4a | SPM040301200 | x 570 x 360 | 2.9 | $ 75.00 | |
| MOQ 5 | Solar Panel 40W-12V Mono 425x668x25mm series 4a | SPM040401200 | x 680 x 435 | 3.9 | $ 86.00 | |
| MOQ 5 | Solar Panel 55W-12V Mono 545x668x25mm series 4a | SPM040551200 | x 680 x 555 | 4.7 | $ 95.00 | |
| MOQ 4 | Solar Panel 90W-12V Mono 780×668×30mm series 4a | SPM040901200 | x 790 x 680 | 7.1 | $ 145.00 | |
| MOQ 4 | Solar Panel 130W-12V Mono 1200x668x30mm series 4a | SPM041301200 | x 1200 x 675 | 9.9 | $ 156.00 | |
| MOQ 4 | Solar Panel 150W-12V Mono 1485x668x30mm series 4a | SPM041501200 | x 1488 x 675 | 11.9 | $ 166.00 | |
| MOQ 4 | Solar Panel 185W-12V Mono 1485x668x30mm series 4a | SPM041851200 | x 1488 x 675 | 11.9 | $ 178.00 | |
| MOQ 4 | Solar Panel 215W-24V Mono 1580x705x35mm series 4b | SPM042152402 | x 1590 x 820 | 12.7 | $ 231.00 | |
| MOQ 4 | Solar Panel 305W-20V Mono 1658x1002x35mm series 4b | SPM043052002 | x 1670 x 1015 | 20.2 | $ 295.00 | |
| MOQ 4 | Solar Panel 360W-24V Mono 1980x1002x40mm series 4b | SPM043602402 | x 1990 x 1015 | 24.3 | $ 369.00 | |
| MOQ 5 | Solar Panel 20W-12V Poly 440x350x25mm series 4a | SPP040201200 | x 450 x 360 | 2.6 | $ 47.00 | |
| MOQ 5 | Solar Panel 30W-12V Poly 655x350x25mm series 4a | SPP040301200 | x 665 x 360 | 3.5 | $ 53.00 | |
| MOQ 5 | Solar Panel 45W-12V Poly 425x668x25mm series 4a | SPP040451200 | x 680 x 435 | 3.8 | $ 68.00 | |
| MOQ 5 | Solar Panel 60W-12V Poly 545x668x25mm series 4a | SPP040601200 | x 680 x 555 | 5.0 | $ 78.00 | |
| MOQ 4 | Solar Panel 90W-12V Poly 780x668x30mm series 4a | SPP040901200 | x 790 x 680 | 7.1 | $ 115.00 | |
| MOQ 4 | Solar Panel 115W-12V Poly 1030x668x30mm series 4b | SPP041151202 | x 1040 x 680 | 9.5 | $ 125.00 | |
| MOQ 4 | Solar Panel 175W-12V Poly 1485x668x30mm series 4a | SPP041751200 | x 1495 x 680 | 12.5 | $ 169.00 | |
| MOQ 4 | Solar Panel 270W-20V Poly 1640x992x35mm series 4a | SPP042702000 | x 1650 x 1005 | 20.2 | $ 211.00 | |
| MOQ 4 | Solar Panel 280W-20V Poly 1650x992x35mm series 4a | SPP042802000 | x 1653 x 1000 | 19.6 | $ 218.00 | |
| MOQ 4 | Solar Panel 330W-24V Poly 1980x1002x40mm series 4b | SPP043302402 | x 1990 x 1010 | 24.3 | $ 240.00 |
