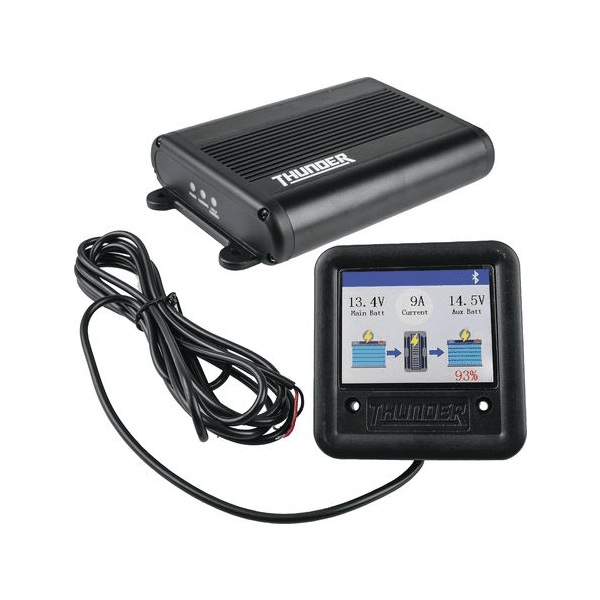

THUNDER BATTERY CHARGER DC-DC 20A WITH SOLAR INPUT TDR02021
Product Description
Thunder 20 Amp DC-DC Charger with Solar Input, 1 Year Warranty.
Battery Charger dc-dc is compact in size and easy to install, the new Thunder DC-DC Charger is the smart way to charge your auxiliary battery, no matter your vehicle. Utilizing a unique pulse charging algorithm with the intelligence to determine the best charge rate for your auxiliary battery, this charger is the perfect addition to any vehicle requiring the management of a dual battery setup.
One of the greatest features of the new DC-DC Battery Charger, is the new remote Bluetooth LCD screen, giving you better visibility on your battery’s state of charge. The new charger also features Modular Sense Technology (MST) allowing you to link multiple units together giving you a 20, 40 or 60A output without having to outlay for a larger unit upfront.
Suitable for Gel, AGM, Calcium, Lead Acid and now Lithium batteries.
Thunder’s new DC-DC Charger is an ideal addition for caravans, camper trailers and 4WD’s.
Sleek new heavy duty aluminum case.
Easy to read remote mount Bluetooth LCD screen.
12-24V System input with 12V output.
Upgraded operating temperature of 0-90° allowing under bonnet mounting.
IP67 Rated – water and dust proof, ready for harsh environments.
New linkable design to easily increase amperage outputs using Modular Sense Technology.
Microchip monitoring and control fully automates high frequency multistage charging.
Pulse mode technology that reduces oxidation and minimizes temperature equating to longer battery life.
Unit will automatically change charge rate mapping for GEL, AGM and standard Lead Acid.
New Lithium battery charging profile option.
Internal charger temperature monitoring and power output control.
Over charging, short circuit and over temperature protection.
Reverse polarity protection.
New 50V solar input with MPPT regulated output allowing 300W of solar.
The LCD screen.
While your vehicle is charging, the LCD screen will show the Vehicle Car Charge screen, allowing you to see the main and auxiliary battery voltages, auxiliary battery percentage and how much current is flowing into the battery. It will also show if Lithium mode is being used.
After the vehicle’s engine has been turned off and the battery voltage in the main battery has reached a loaded voltage of 12.2V, the LCD screen will move to the Solar Charge screen showing battery voltages, percentages and the flow of the solar charge.
THE REMOTE MOUNT DIFFERENCE
Clear visual display of state of charge of all batteries.
IP67 rating and 90°C operating temperature means the charger can be installed in an engine bay with a reduced likelihood of it de-rating due to the harsh under bonnet environment.
Easily identify and rectify battery faults.
You can Easily identify if your batteries are charged by the alternator or solar.
Bluetooth active.
Main battery voltage.
Auxiliary battery voltage.
DC-DC current output.
Vehicle charge flow.
Auxiliary battery percentage.
Main battery charge level.
The auxiliary battery charge level.
Battery fault indicator.
Display switch.
Lithium mode.
Bluetooth active.
Main battery voltage.
Auxiliary battery voltage.
Solar charge flow.
Main battery percentage.
Shows the auxiliary battery percentage.
Main battery charge level.
Auxiliary battery charge level.
Has a battery fault indicator.
Display switch.
Shows lithium mode.
https://www.facebook.com/4wdlightsandcamping.com.au
https://4wdlightsandcamping.com.au/product/light-bar-300w/
Product Description
| Part No. | TDR02021 |
| Type | DC-DC & ISOLATORS |
| Brand | THUNDER |
| Unit of Measure | EACH |
| Description | Thunder DC-DC Battery Charger 20A With Solar Input |
| Warranty | One Year |
| Length | 190mm |
| Voltage | 12/24V |
| Note | Come’s with LCD Bluetooth Screen |
| Width | 120mm |
| Height | 40mm |
| Battery Type | GEL, AGM, Led Acid and Lithium |
| Environmental | IP67 |
| Temp Range | 0-90 Deg |
| Features | Easy to read remote mount Bluetooth LCD screen 12-24V system input with 12V output 0-90° Operating Temperature IP67 Modular design to easily increase amperage outputs using MST (Modular Sense technology) Lithium battery charging profile Internal charger temperature monitoring and power output control Over charging, short circuit and temperature protection Reverse polarity protection 50V solar input with MPPT regulated output allowing 300W of Solar Unit: 190x125x40mm Screen: 75x75x20mm |
| Product Group 1 | AUTO ELEC ACCESSORIES |
| Product Group 2 | VOLTAGE CONTROL |
