Description

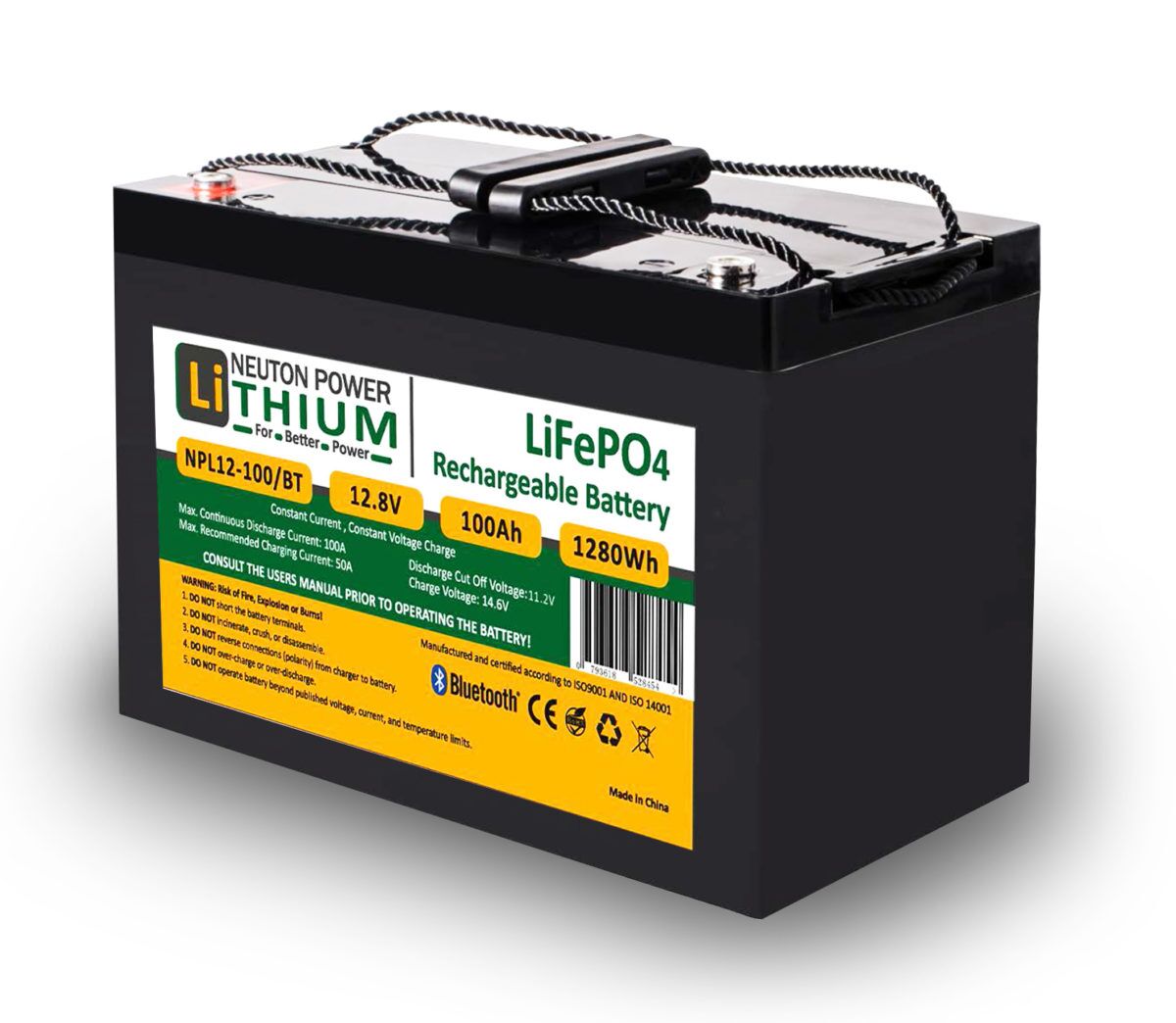

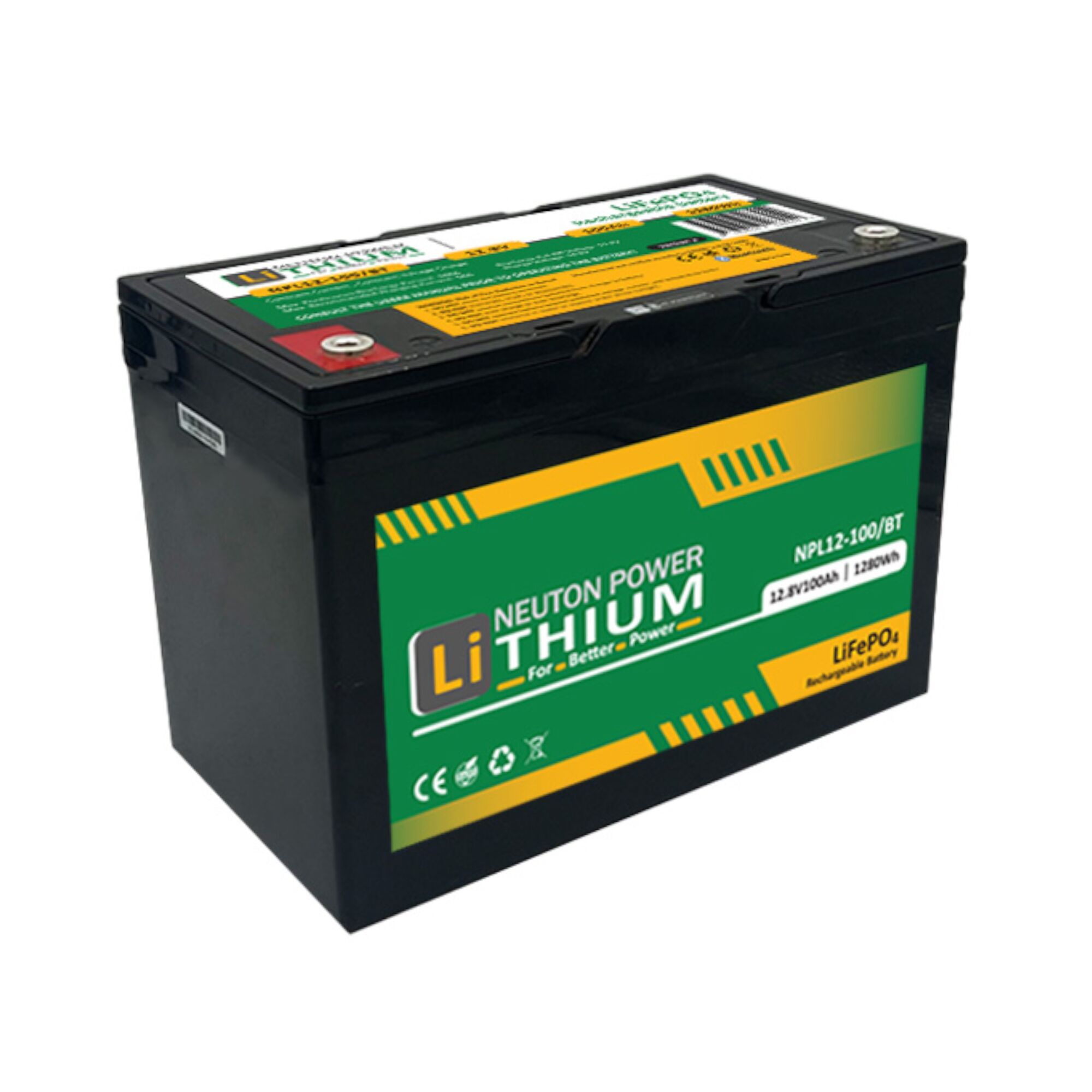

Lithium Battery 100Ah with Bluetooth
NPL12-100BT 100Ah
Product Information for this Lithium Battery
| Weight | 13.2 kg |
|---|---|
| Dimensions | 306 × 168 × 215 mm |
| Voltage | 12V |
| C10 Rate | 100AH |
Features of this Lithium Battery:
Lithium Battery Bluetooth Prismatic LiFePO4 cells, High consistency, long cycle life and much more safety.
UN38.3, CE certification for system. The cycle life over 3500 times @80%DOD
Neuton Power (12.8V) LFP – Bluetooth (BT) Series.
Neuton Power NPL12-100/BT: Neuton Power NPL12-100FT/BT: Front Terminal (Slim Design) No: Yes: Cell: 3.2V 100AH: 3.2V 100AH: Cell Series & Parallels: 4S1P: 4S1P: Rated Voltage: 12.8V: Rated Capacity: 100 AH: 100 AH: Rated Energy: 1.28 KWh: 1.28 KWh: Max Charge Current A: 100A: Recommended Charge Current A: 50A: Max Discharge Current A: 100A: Life Cycle @25 celcius,0.5C/0.25C,80%DOD >3500.
BMS Specification
The battery 12v integrates LiFePO4 type Battery Management System (BMS) inside which can monitor
and optimize each single prismatic cell during charge & discharge and protect the battery pack from
overcharge, over discharge, high temperature, low temperature and short circuit. Overall, the BMS
helps to ensure safe and accurate operation of the battery.
The Bluetooth communication is provided to monitor battery information.
NEUTON POWER Lithium Battery 12.8V 100AH With Bluetooth
Terminals: M8
| Model & overall Specs | Neuton Power NPL12-100/BT | Neuton Power NPL12-100FT/BT |
| Front Terminal (Slim Design) | No | Yes |
| Cell | 3.2V 100AH | 3.2V 100AH |
| Cell Series & Parallels | 4S1P | 4S1P |
| Rated Voltage | 12.8V | |
| Rated Capacity | 100 AH | 100 AH |
| Rated Energy | 1.28 KWh | 1.28 KWh |
| Max Charge Current A | 100A | |
| Recommended Charge Current A | 50A | |
| Max Discharge Current A | 100A | |
| Life Cycle @25 celcius,0.5C/0.25C,80%DOD | >3500 | |
| Warranty Period | 5 Yr or 3000 cycles | |
| End of discharge voltage | 11.2V | |
| Operating temperature-Charge | 0~50 °C | |
| Operating temperature-Discharge | -20~55 °C | |
| IP Rating | IP65 | |
| Series Support | <=4 | |
| Parallel Support | <=2 | |
| Bluetooth connectivity | Yes | |
Note:
1. 80% DOD and to 80% of initial capacity.
2. To install Bluetooth App, search “Neuton Power” at Apple App store or Google play.
more details and a bar code you can scan to get the APP click this link Datasheet 12.8V 40Ah-Neuton Power.indd (yhipower.com.au)
