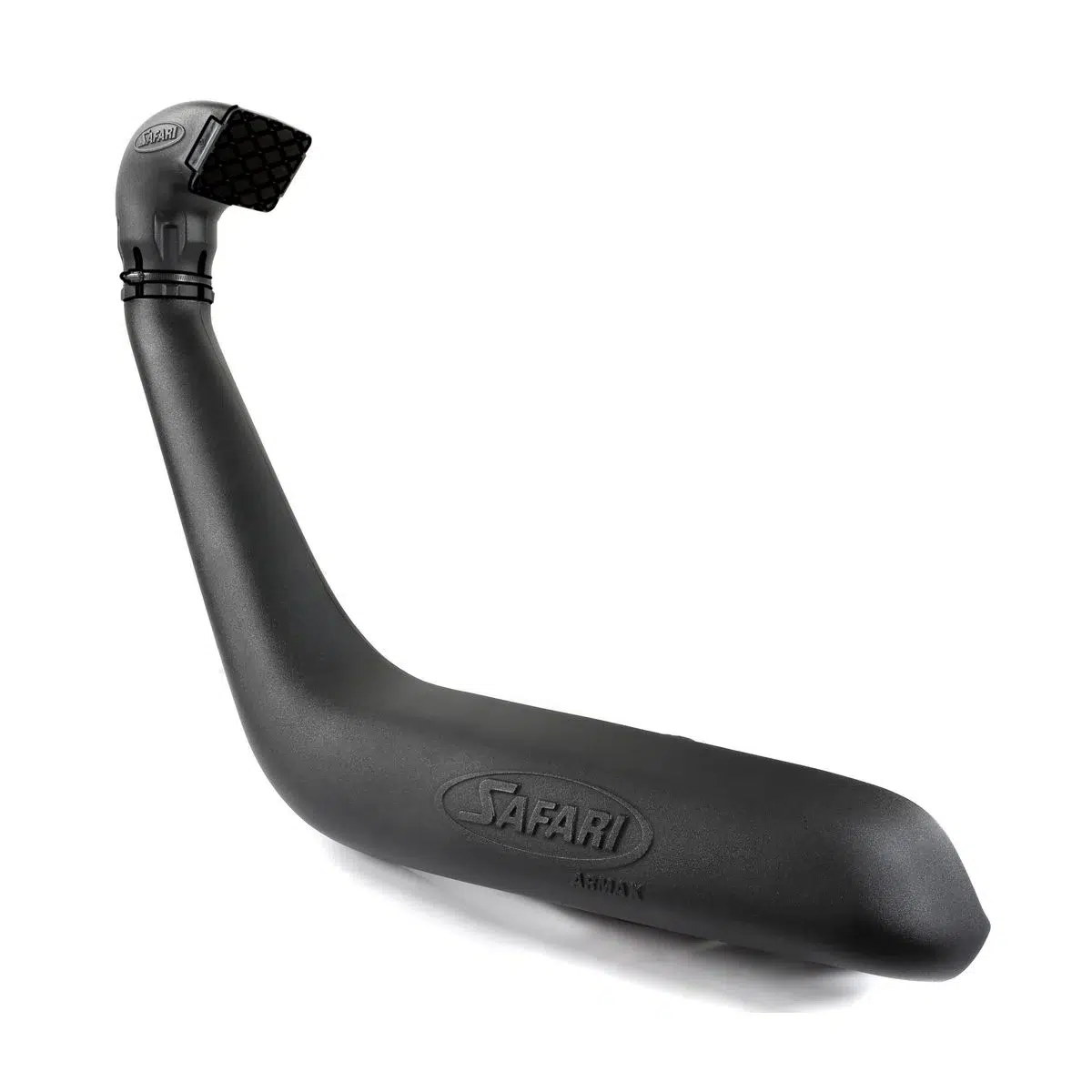

Safari Armax Snorkel System

$509.00

Safari Armax Snorkel System – SS123HP

SAFARI ARMAX SNORKEL
To Suit: TOYOTA HILUX (Oct 2015 onwards)
2.4L & 2.8L Turbo Diesel D-4D (2GD-FTV & 1GD-FTV Engines),
4.0L V6 (1GR-FE Engine)
NOTE: WIDE BODY MODELS ONLY

SKU: SS123HP Category: Tags: ,

Description

Safari Armax Snorkel System – SS123HP

SAFARI ARMAX SNORKEL
To Suit: TOYOTA HILUX (Oct 2015 onwards)
2.4L & 2.8L Turbo Diesel D-4D (2GD-FTV & 1GD-FTV Engines),
4.0L V6 (1GR-FE Engine)
NOTE: WIDE BODY MODELS ONLY

Safari Armax Snorkel System maximize horsepower in your 4×4 or SUV with the Safari Armax Snorkel. Engineered for turbo diesel or modified rigs, it ensures ample airflow. Designed for larger capacity or modified diesel 4X4’s and SUVs, the Armax Safari Snorkel captures clean cool air, vital for performance. Don’t compromise; the Armax Safari Snorkel delivers proven results. Safari’s new designs increase airflow by 25% to 70%, perfect for modern-day SUVs. Prevent water entry and engine damage with its sealed design. With over 40 years of expertise, Safari guarantees premium quality and reliability. Trust Safari for seamless integration and optimum airflow. Fit a Safari Armax Snorkel and conquer any trail with confidence.

  • Designed and flow tested for maximum performance
  • Dynamometer tested to ensure proven results
  • Development and verification in conjunction with other ARMAX™ performance enhancement products
  • Air Ram with a 4” (101.6mm) outlet and an optimised air flow, low restriction grill
  • Watertight raised air intake for ultimate engine protection against water and dust.
  • Industrial Spec UV Stabilised Polyethylene material.
  • Lifetime warranty.

Parts List
ITEM PART NO. DESCRIPTION QTY
1 322-133-600 BODY – SNORKEL (SS123HP) 1
2 000-135-960 4” AIR RAM ASSEMBLY 1
3 322-032-600 BRACKET – UPPER MOUNTING 1
4 000-002-100 BOLT – HEX – 6mm x 1.0 x 14mm (SEMS) – S/S 2
5 000-951-300 SCREW – S/T – 4.2mm x 16mm – S/S 3
6 000-960 INSERT – PLASTIC 3
7 000-110 STUD – 8mm x 1.25 x 25mm – S/S 6
8 000-311-300 WASHER – BODY – 8mm x 30mm – S/S 6
9 000-205-300 NUT – NYLOC – 8mm x 1.25mm – S/S 6
10 322-024-600 HOSE – AIR ENTRY 1
11 000-910 CLAMP – HOSE – 90/110mm – S/S 1
12 000-1911 CLAMP – HOSE – 100/120mm – S/S 1
13 322-967-600 PLATE – INNER GUARD SUPPORT – S/S 1
14 000-1027-300 BOLT – B/H CAP SCREW 10mm x 1.5 x 20mm – S/S 1
15 000-303-300 WASHER – FLAT – 10mm x 20mm x 2.0mm – S/S 2
16 000-206-300 NUT – NYLOC – 10mm x 1.5mm – S/S 1
Copyright Safari 4×4 Engineering Pty Ltd Melbourne Victoria Australia – www.safari4x4.com.au
Page 2 of 14
17 000-1020-300 BOLT – B/H CAP SCREW 5mm x 12mm – S/S 4
18 000-320-350 WASHER – BODY – 5mm x 15mm – S/S 8
19 000-221-300 NUT – NYLOC – 5mm x 0.8mm – S/S 4
20 000-1931/B CLAMP – HOSE – SIZE 64 (BLACK) 1
21 322-017-600 TEMPLATE – GUARD PANEL 1
Copyright Safari 4×4 Engineering Pty Ltd Melbourne Victoria Australia – www.safari4x4.com.au
Page 3 of 14

Click here for Installation Instructions:

https://www.facebook.com/4wdlightsandcamping.com.au

https://4wdlightsandcamping.com.au/product/century-battery-charger/



Additional information

Weight 6 kg
Dimensions 1.3 × .42 × .22 cm
