Description
Solar Charge Controller

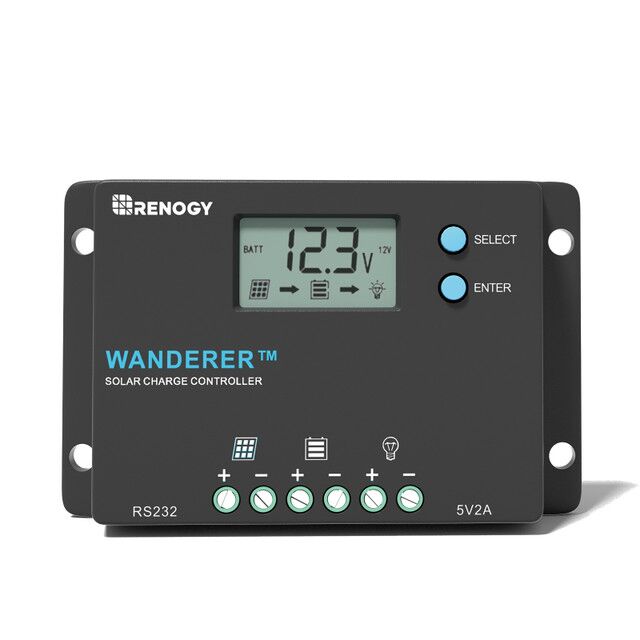

Renogy CORE Wanderer 12V/24V 10A Pwm Negative Ground Solar Charge Controller
Solar Charge Controller automatically detects 12V/24V system voltage.
– Full system protection to safeguard your energy system.
– Maximum flexibility with multiple load control modes.
– Extremely low self-consumption.
– Real-time monitoring with integrated RS232 port.
The Specs
| Wanderer 10A PWM Charge Controller | |
|---|---|
| Nominal Voltage: 12V/24V Auto Recognition for non-lithium batteries | Rated Charge Current: 10A |
| Max. PV Input Voltage: 50 VDC | Max. PV Input Watt: 130W |
| Max Gauge Size: Up to 12AWG | Self-Consumption: <10mA |
| Working Temperature: -31°F to 113°F / -25°F to +45°F | USB port：5V, 2A max |
| Weight: 0.27 lbs / 122.47g | Dimensions: 4.68 x 2.95 x 1.08 inch |
Warranty Information
| Charge Controller | 2-year material warranty |
Certification
 |
Monitoring Your Energy System Anytime and Anywhere
Seamlessly integrate with the BT-1 to provide instant data on your DC Home app & Renogy ONE M1.
Customize Your System Parameters
Blacklit LCD screen for displaying system operation, diverse load control and error codes.
All-round Protection for Your Batteries
Providing all-round protections against overcharging, over-discharging, short-circuit, overload, reverse polarity, reverse current, and temperature compensation.
SKU: RNG-CTRL-WND10-G1-AU
