Description

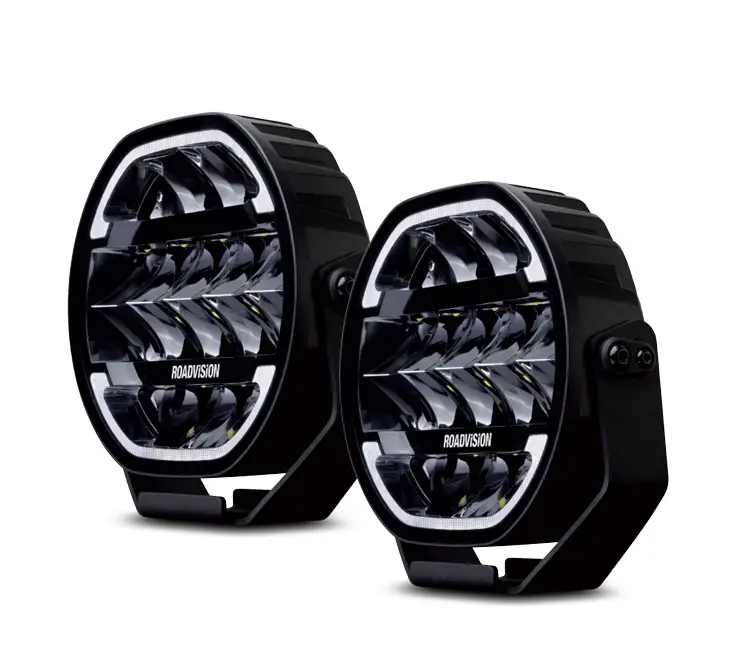

Roadvision Dynamilux 8″ LED Driving Lights 180W Combination Beam – RDL7800C
The Roadvision Dynamilux 8″ LED Driving Lights are built for drivers who demand serious performance, modern styling, and long-term reliability. Designed for touring, off-road adventures, rural driving, and highway use, these premium driving lights deliver outstanding visibility while adding a distinctive look to your vehicle.
Featuring powerful Osram LEDs, a dynamic dual-colour DRL, and an impressive beam distance of up to 834 metres at 1 lux per pair, the Dynamilux Series provides exceptional lighting performance when you need it most.
Whether you’re driving a 4WD, ute, touring vehicle, or work truck, these lights are engineered to perform in Australia’s toughest conditions.
Powerful Long-Range Illumination
The Roadvision Dynamilux Series uses 18 premium 10W Osram LEDs per light to produce an impressive 9,900 lumens per light and 19,800 lumens per pair.
As a result, drivers benefit from outstanding visibility across highways, country roads, and remote tracks.
The combination beam pattern provides the ideal balance between distance and spread. Consequently, you can see further ahead while also maintaining excellent side visibility.
Performance includes:
- 9,900 lumens per light
- 19,800 lumens per pair
- 590 metres at 1 lux per light
- 834 metres at 1 lux per pair
- 1,180 metres at 0.5 lux per pair
- Crisp 5700K colour temperature
Therefore, obstacles, wildlife, road signs, and changing terrain become easier to identify during night driving.

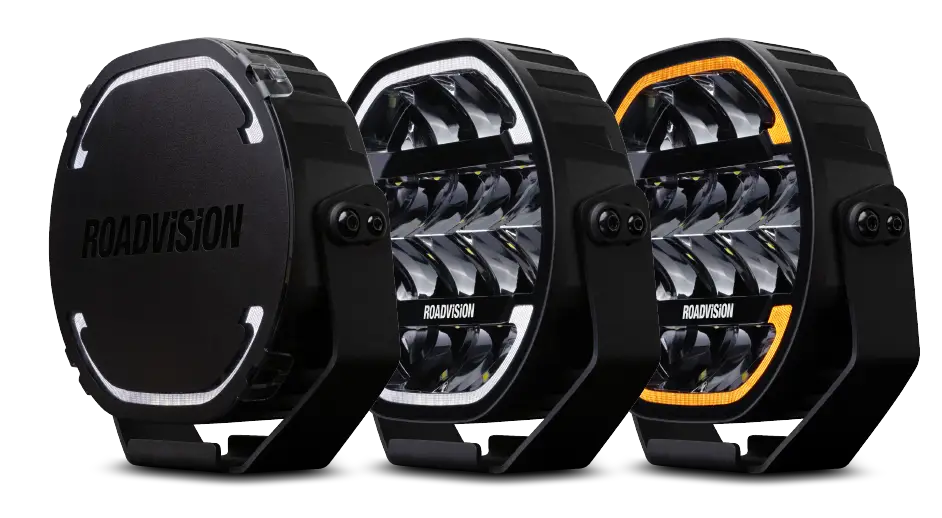

Dynamic Dual-Colour DRL Technology
One of the standout features of the Dynamilux Series is the integrated Dynamic Start-Up Daytime Running Light system.
Drivers can select either:
- White Dynamic DRL
- Amber Dynamic DRL
The dynamic start-up sequence creates a premium modern appearance while improving daytime visibility.
Additionally, the included black protective cover features dedicated DRL windows. This allows the DRL function to remain visible while protecting the lens when the driving lights are not in use.
Premium Osram LED Performance
Roadvision has equipped the Dynamilux Series with genuine Osram LEDs for maximum performance and reliability.
Osram LEDs are widely recognised throughout the automotive lighting industry for their:
- High output
- Consistent performance
- Long lifespan
- Superior efficiency
Furthermore, the LEDs offer a lifespan of up to 50,000 hours thanks to advanced solid-state technology.
This means years of dependable operation with minimal maintenance.
Advanced Thermal Management Technology
Heat management plays a major role in LED performance.
For this reason, Roadvision incorporates advanced Thermal Management Technology into every Dynamilux driving light.
This system helps maintain optimal operating temperatures while protecting internal components from excessive heat.
As a result, the LEDs can deliver maximum brightness while extending service life.
Built Tough for Australian Conditions Roadvision Dynamilux 8in Driving Lights 180W RDL7800C
The Dynamilux Series is engineered to handle demanding off-road and touring environments.
The housing is manufactured from lightweight yet durable die-cast aluminium, while the lens uses high-strength polycarbonate construction.
Key durability features include:
- Tough die-cast aluminium housing
- Impact-resistant polycarbonate lens
- IP67 waterproof rating
- Dustproof construction
- Over-voltage protection
- Under-voltage protection
- Reverse polarity protection
Consequently, these lights are ready for mud, rain, dust, corrugations, and harsh Australian weather.
Radio Interference Approved
Many LED driving lights can create interference with radios and communication systems.
Fortunately, the Dynamilux Series is EMI and EMC approved.
This means the lights meet radio interference standards and help minimise disruption to:
- UHF radios
- AM/FM radios
- Communication equipment
- Vehicle electronics
As a result, you can maintain reliable communications while travelling.
Multi-Volt Compatibility Roadvision Dynamilux 8in Driving Lights 180W RDL7800C
The RDL7800C operates across a wide 10V to 30V DC input range.
Therefore, it is suitable for:
- 12V vehicles
- 24V vehicles
- 4WDs
- Utes
- Trucks
- Touring vehicles
- Commercial fleets
Its efficient design also keeps current draw low at only 10.2 amps at 13.8V.
High-Power Mode Function Roadvision Dynamilux 8in Driving Lights 180W RDL7800C
The Dynamilux Series includes an intelligent power mode system.
The light initially starts in low-power mode after startup.
To permanently switch the light into high-power mode:
- Turn the lamp on and off four times within 50 seconds.
- Allow approximately one to two seconds between each cycle.
- The light will then remain in high-power mode until the process is repeated.
This feature allows drivers to customise performance to suit their driving requirements.
Easy Installation Roadvision Dynamilux 8in Driving Lights 180W RDL7800C
Installation is simplified through the included 4-pin Deutsch connector.
Wiring configuration includes:
- Red – Positive
- Black – Negative
- Yellow – Amber DRL
- White – White DRL
The package also includes blackout mounting hardware and protective covers.
For best results, Roadvision recommends pairing the lights with a compatible dual-colour DRL wiring harness.
Why Choose Roadvision Dynamilux Driving Lights?
The Dynamilux Series combines modern styling with proven lighting performance.
Benefits include:
- Powerful 19,800 lumens per pair
- Dynamic amber or white DRL
- Genuine Osram LEDs
- Combination beam pattern
- 834 metre beam distance at 1 lux per pair
- Tough aluminium construction
- IP67 waterproof protection
- Multi-voltage compatibility
- Radio interference approved
- Protective covers included
- 7-year warranty
Consequently, these driving lights are ideal for drivers seeking premium performance, outstanding durability, and modern styling.
Specifications
- Part Number: RDL7800C
- Beam Pattern: Combination
- Maximum Output: 9,900 lumens per light
- Maximum Output Pair: 19,800 lumens
- Lux @ 10m: 3,480 lux per light
- Lux @ 10m Pair: 6,960 lux
- Beam Distance @ 1 Lux: 590m per light
- The Beam Distance @ 1 Lux Pair: 834m
- Beam Distance @ 0.5 Lux Pair: 1,180m
- Voltage: 10-30V DC
- Power Consumption: 180W
- LEDs: 18 x 10W Osram LEDs
- Current Draw: 10.2A @ 13.8V
- Lens Material: Polycarbonate
- Housing Material: Die-Cast Aluminium
- Connector: 4 Pin Deutsch Plug
- Dimensions: 220 x 80 x 229mm
- Waterproof Rating: IP67
- Colour Temperature: 5700K
- Warranty: 7 Years
