Light Bar 60w

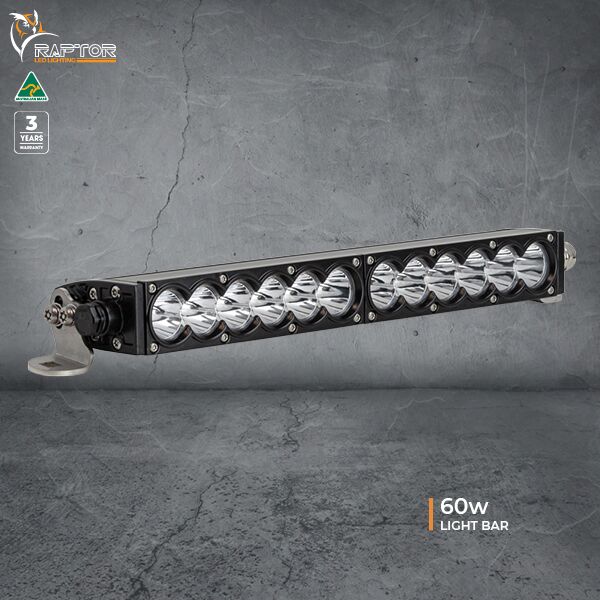

Raptor 60W 15″ LED Light bar


Light Bar 60w Raptor LED 14.5″ 369mm


Light Bar 60w made in Australia – Designed and built for some of the toughest environments on earth, Available with either 4000k or 5700k Colour Temperature, 3 Year Warranty.

Suits DV12H Harness – Sold Separately

The RAPTOR LED Light Bars are manufactured from high pressure extruded aluminium, giving an extremely strong but light body.  This, along with a high impact polycarbonate lens make the Raptor light bars exceptionally tough. The open-optic reflector gives a combination beam with very good distance and peripheral width of 100° from one lamp type.

To ensure maximum driver comfort the light bars are available with either 4000k or 5700k Colour Temperature.

All RAPTOR lamps come complete stainless steel pivot mounting brackets and stainless steel fixings. As with all Raptor products, the light bars are manufactured in Australia and covered by a 3-year warranty for total peace of mind.

Need a Wiring Diagram for this Light bar 70w?

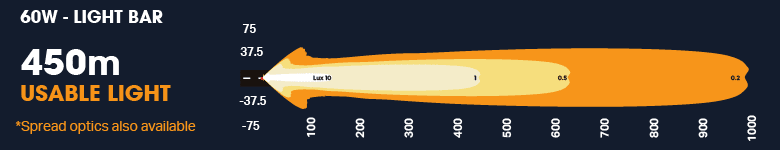

Beam Pattern


Wattage 60 Watts
Light Source 12 x 5w LED’s
Light Output – Raw 7,200 Lumens
Light Output – Effective 6,088 Lumens
Voltage 9-36V
Current Draw 4.5A @ 13.5V
Operating Temperature -40 to 80 Deg C
Waterproof Rating IP67
Connector Type Plug 2 Pin Heavy Duty Deutsch
Housing Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel
Colour Temperature 4000K or 5700K
Lifespan 50,000 Hours
Dimensions 367 x 45 x 73mm
Net Weight 1.3kg
Mounting Suitable Side Mounts
Beam Type Spread or Combo
Warranty 3 Years
Harness Harness not included, purchased separately. Harness to suit: DV12H
Part Number
Combo, 5700K RAP060LBv2
Spread, 5700K RAP060LBSv2
Combo, 4000K RAP060LB4v2
Spread, 4000K RAP060LB4Sv2


Additional information

Weight 1.5 kg
Dimensions 39 × 6 × 8.5 cm

5700K, 4000K


Combo, Spread
