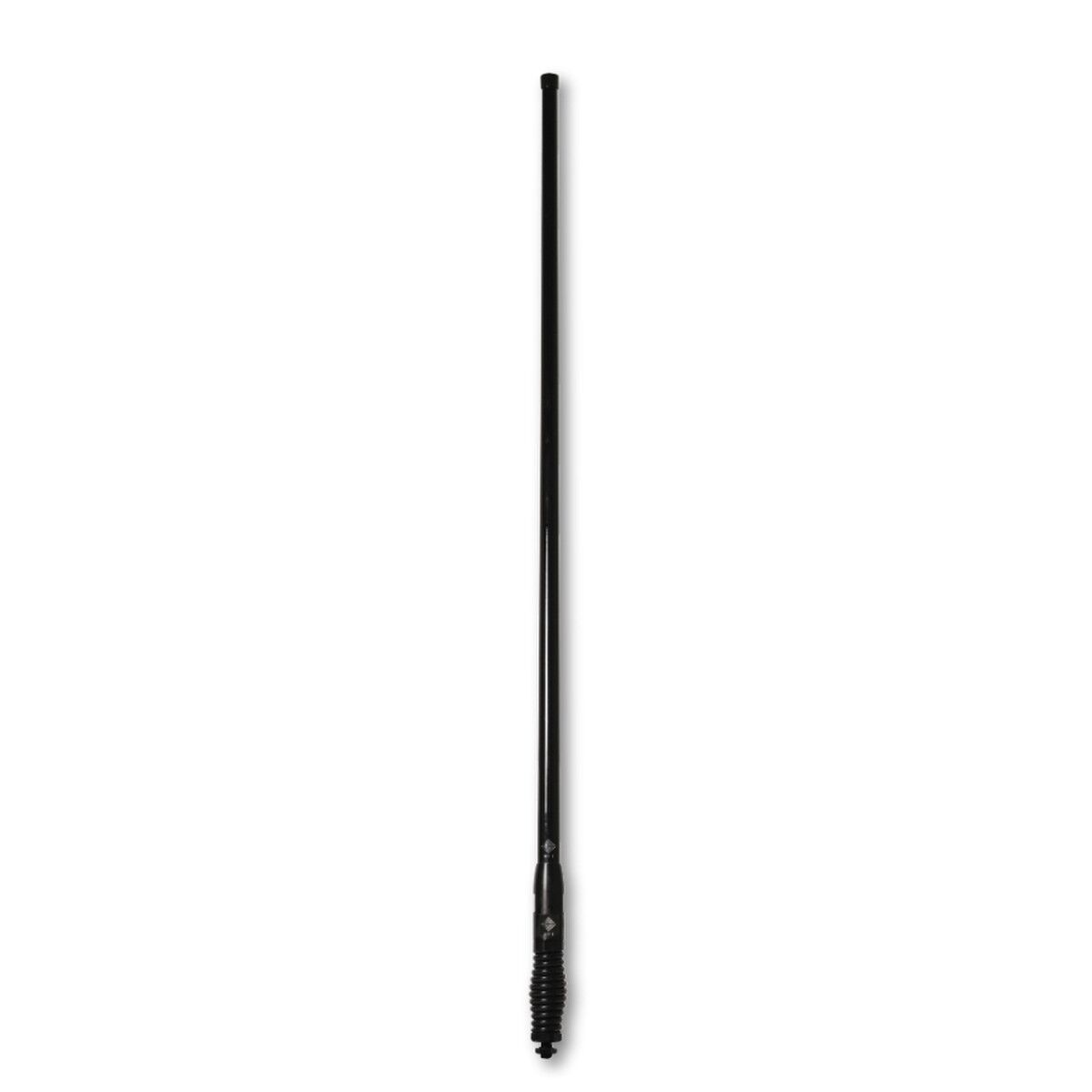

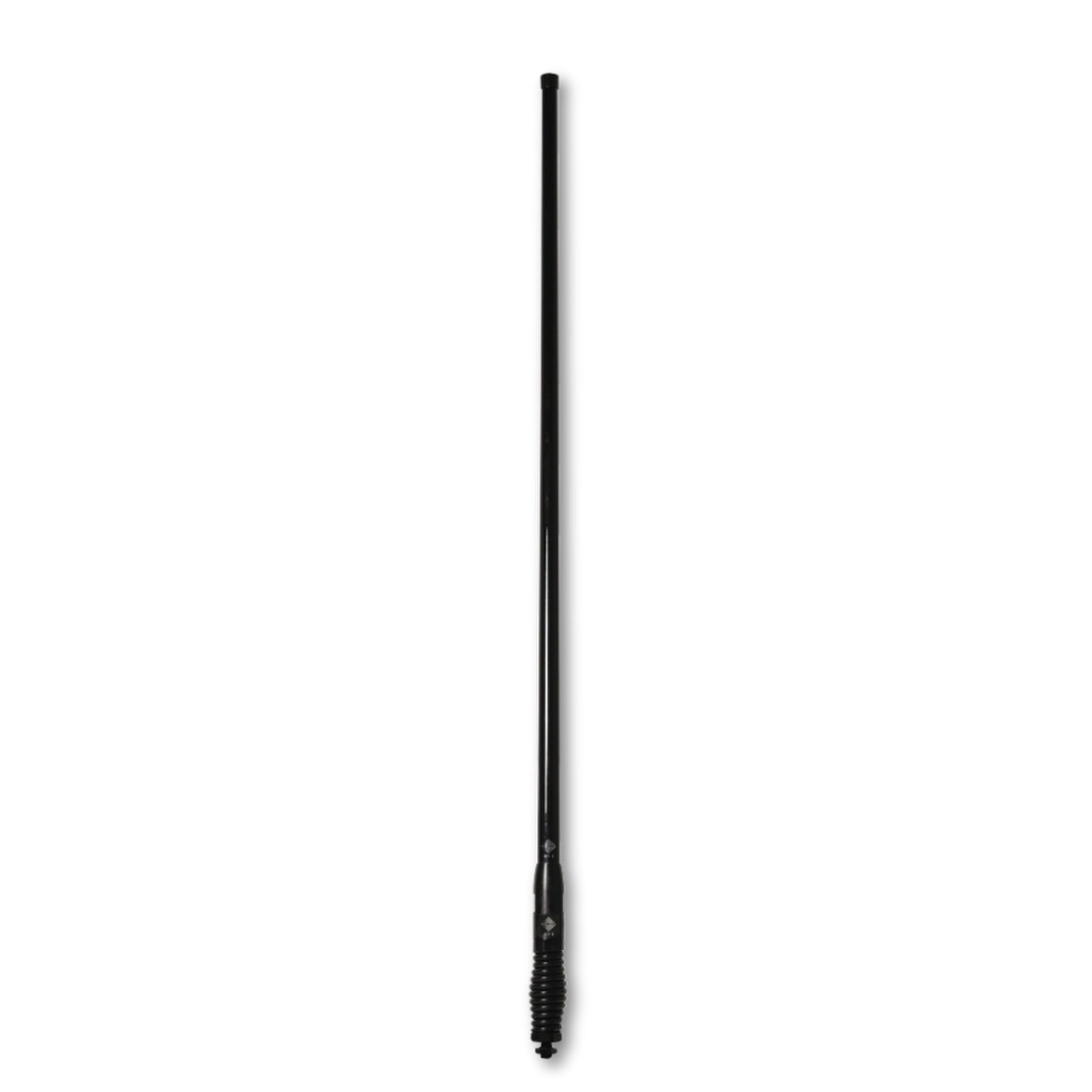

RFI UHF CB 5dBi Collinear Antenna (477 MHz); 5m FME(F) UHF(A) – Black With Long Radome

SKU: CDQ5000-BL Category: Tags: ,


RFI UHF CB 5dBi Collinear Antenna (477 MHz); 5m FME(F) UHF(A) – Black With Long Radome

RFI UHF CB CDQ5000-BL antenna is designed to match the same height profile of the cellular CDQ 8197. Based on our successful CD5000 antenna with the revolutionary unique PCB radiator delivering an extraordinary performance. The patented Meander™ circuit delivers exceptional consistency in gain and pattern.


Did you know that you can also match the new CDQ5000-BL UHF CB  with our  CDQ8197-B Cellular Antenna.

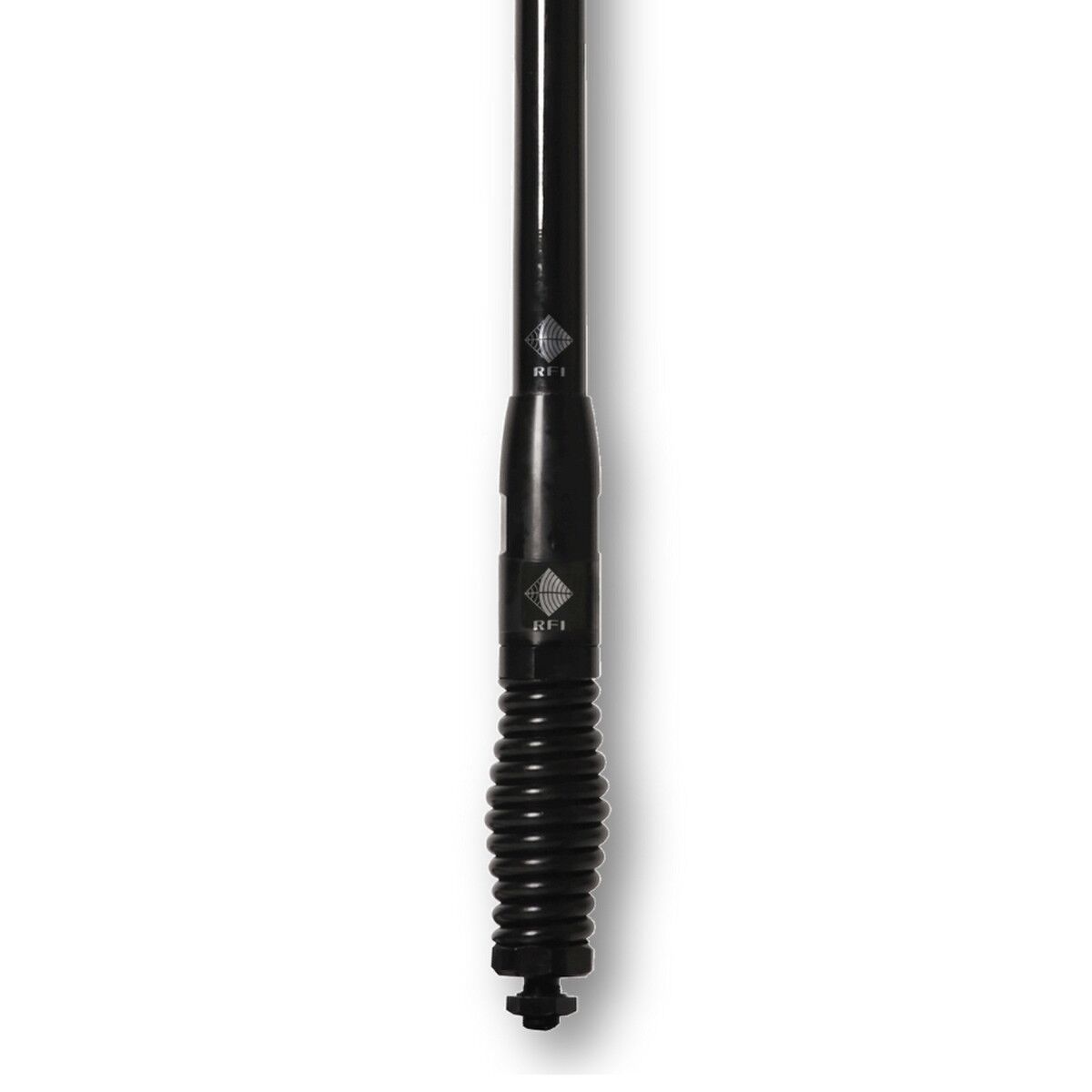

The CDQ5000-BL employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antenna is supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed. With a heavy-duty electro polished stainless steel spring, the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four-wheel drives and trucks.

– Height profile match with CDQ8197 cellular antenna.
– Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
– 5 dBi gain across the full 477 MHz UHF CB band. – Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security.
– Ground Independent


Brand RFI
Mounting Threaded Stud
Length [mm] 1210
Frequency MHz 477
Tuned Bandwidth Full. No tuning required
Radome Diameter Mm 22.5 – 15.6
VSWR <1.5:1
Nominal Gain [dBi] 5
Power [W] 25
Frequency Range [MHz] 470 – 490
Connector FME(F), UHF(M)
Band 477MHz
Tuning Supplied pre-tuned
Cable And Connector 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
Whip Material PCB radiating element housed in tapered high impact fibreglass
Packaging Clear hanging bag
Antenna Type Omni
Antenna Application Vehicle Antenna
Frequency Band UHF 380-520 MHz
Antenna Configuration SISO



Additional information

Weight 4 kg
Dimensions 130 × 105 cm
