Description

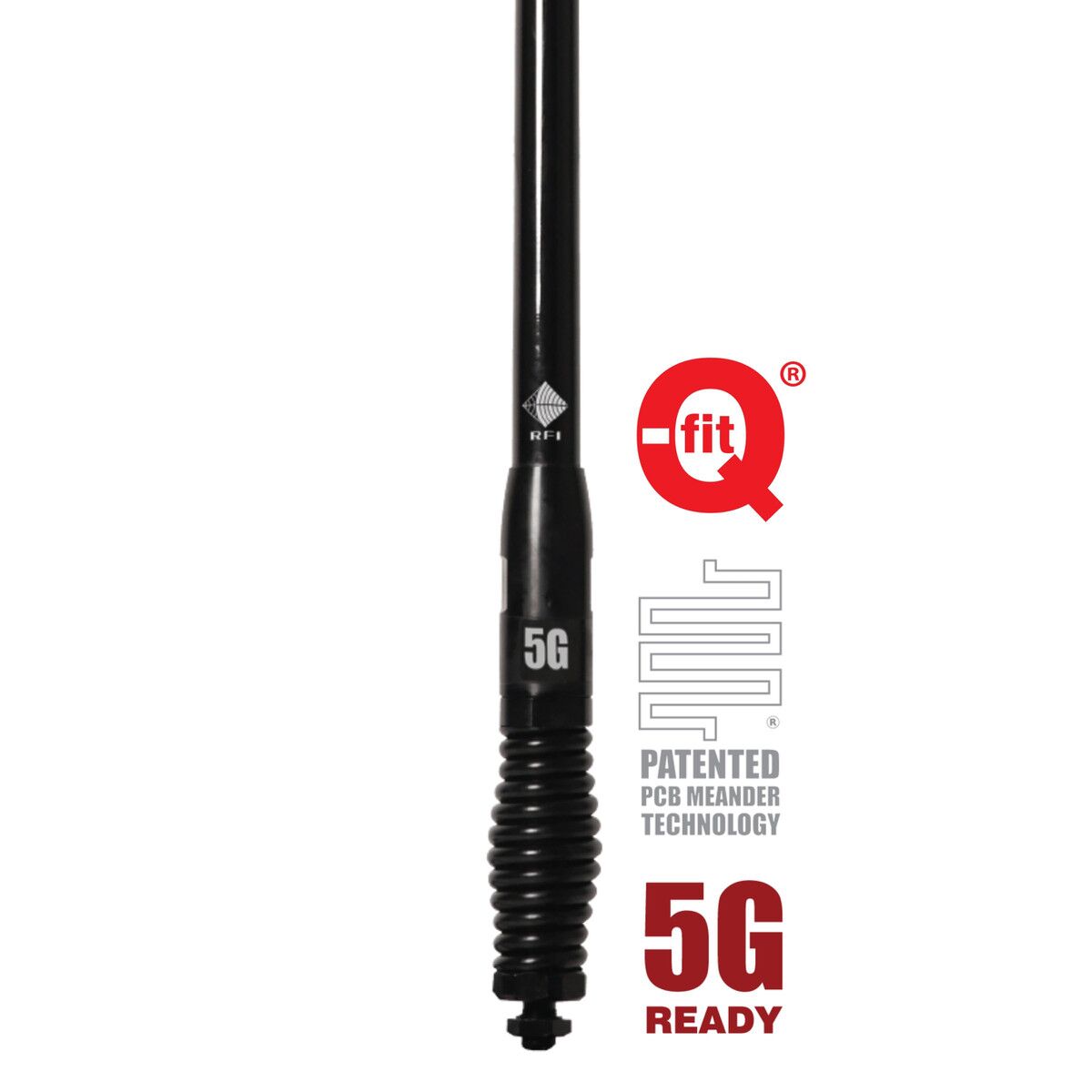

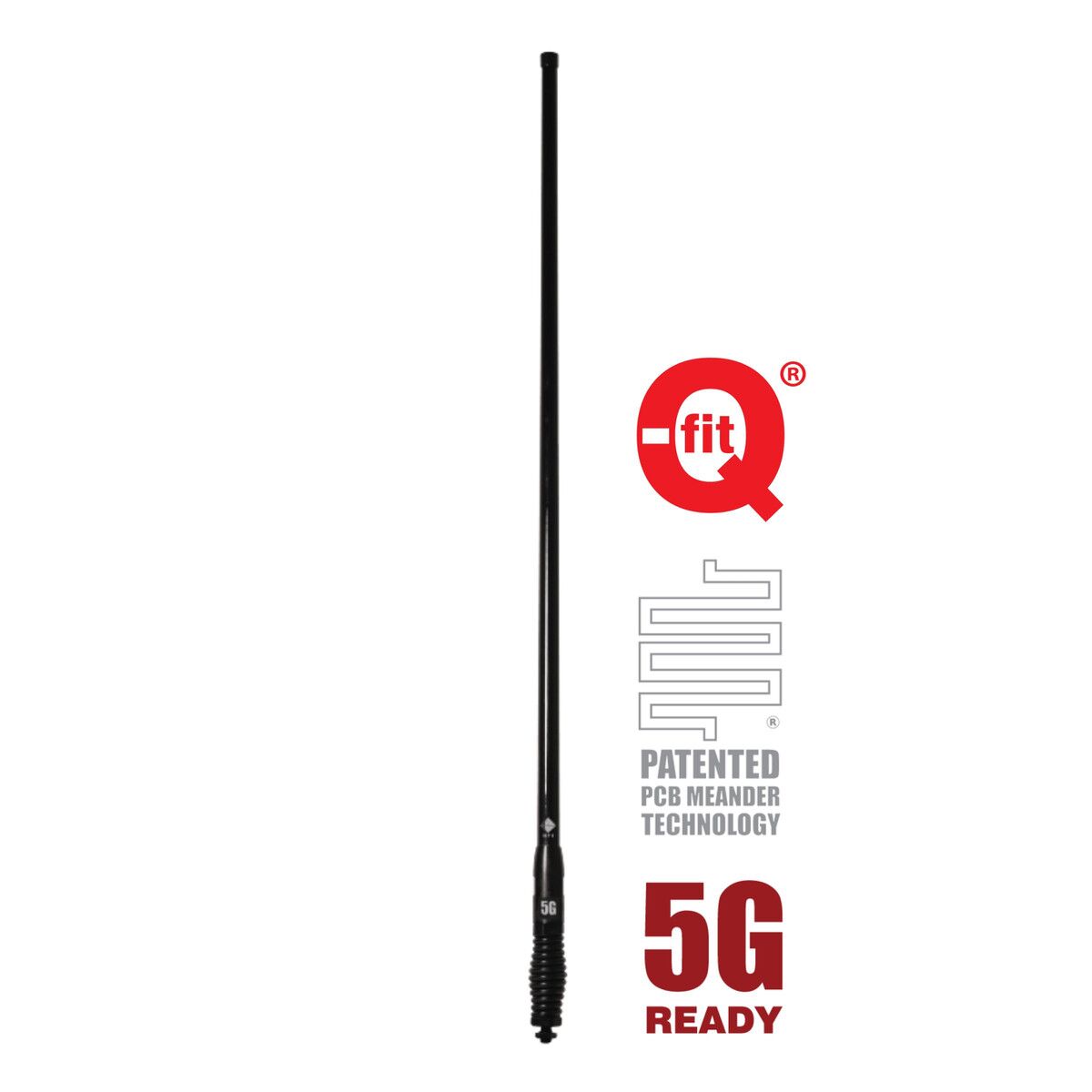

RFI 5G LTE 7.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) – Black
Mobile Phone Antenna
RFI 5G LTE the new CDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).
It is ideal for use with cellular modems & active repeaters, especially when the signal is poor.The outstanding performance of the CDQ8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern, and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in one unit.
It is our flagship product and is designed for harsh Australian conditions. Includes an integrated spring with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and the N female connector on the spring assembly.
SKU: CDQ8197-B
Key Features:
– Patented PCB-based collinear design offering the ultimate in pattern and gaining stability.
– Ideal for new 5G/LTE networks with true multi-band coverage.
– High gain across all bands making it suiting fringe and rural applications.
– Q-Fit® removable whip system for ease of removal in low-height environments such as multi-story car parks, car washes, or for security.
If You Want the same in a UHF antenna click here
| Brand | RFI |
| Mounting | 16mm mounting hole |
| Length [mm] | 1210 |
| Frequency MHz | 698-960, 1710-2170 & 2300-2700MHz |
| Tuned Bandwidth | Full |
| Radome Diameter Mm | 22.5 – 15.6 Tapered |
| VSWR | <2.5:1 |
| Polarisation | Vertical |
| Nominal Gain [dBi] | 7.5 / 4.5 / 5.5 |
| Power [W] | 10 |
| Frequency Range [MHz] | 1710 – 2170, 2300 – 2700, 3400 – 3800, 698 – 960 |
| Cable And Connector | 5m of 9006 low loss cable terminated with SMA male connector |
| Packaging | Retail Hang Sell |
| Colour | Black |
| Technology Type | 5GNR, LTE |
| Antenna Type | Omni, Spring Mount |
| Antenna Application | Vehicle Antenna |
| Antenna Features | Multi Band Capable, Omnidirectional |
| Frequency Band | Multi-Band 700 to 3800 |
| Cable Length (M) | 5 |
| Antenna Configuration | SISO |
