Invicta Xero 12V 100Ah lithium battery with Bluetooth and CAN bus IP67 (SNLX12V100BT)

Invicta Xero 12V 100Ah

Reverse CameraFord Ranger PX

$989.00

SKU: SNLX12V100BT Category: Brand:

Description

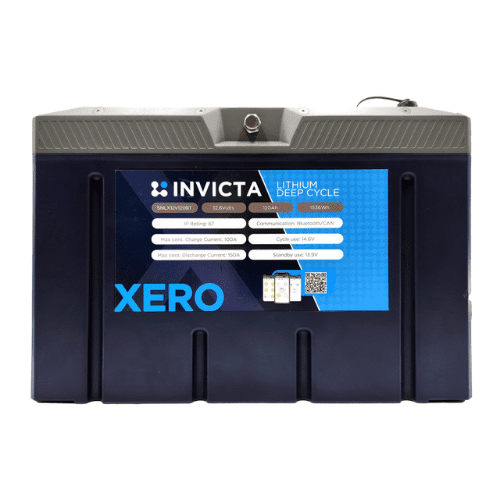

Invicta Xero 12V 100Ah Lithium Battery with Bluetooth (SNLX12V100BT)

If you want a strong, modern replacement for a similar-size lead acid battery, the Invicta Xero 12V 100Ah is a solid upgrade. It uses LiFePO4 chemistry, so you get stable performance and long life. Plus, it brings smarter monitoring for touring, camping, and work setups.

Because the battery includes an integrated BMS, it actively protects against over-charge, over-discharge, temperature issues, and short circuits. As a result, you get a safer battery system, especially when your loads change quickly. In addition, the BMS supports 150A continuous discharge and 500A pulse (3 seconds), so it can handle many inverter builds.

Monitoring also stays simple. For example, you can use Bluetooth to check essential battery data from your phone. However, if you want a more advanced setup, you can also use the open CAN bus to connect devices directly to the battery’s BMS. Therefore, your system can read accurate information without guesswork.

The build suits Australian conditions too. The case is IP67 rated, so it seals out dust and water. Moreover, it uses a high energy-density design, so it weighs far less than SLA. Finally, the detachable mounting feet help you secure the battery neatly in your application.

Key features and benefits Invicta Xero 12V 100Ah Lithium Battery with Bluetooth

  • LiFePO4 chemistry for safe, stable power

  • Integrated BMS for protection and control

  • Bluetooth monitoring for easy checks

  • Open CAN bus / RS485 for advanced integration

  • 150A max discharge, plus 500A pulse (3 sec)

  • 3000+ cycles at 100% DoD (as specified)

  • IP67 sealed for Australian conditions

  • High energy density and lower weight than SLA

  • Detachable mounting feet for easier mounting

  • IEC 62619 certified

Series and parallel setup Invicta Xero 12V 100Ah Lithium Battery with Bluetooth

You can scale your system as your needs grow. For example, run up to 4 in series, or up to 16 in parallel. You can also combine series and parallel as specified (4S/16P/4S+4P). As a result, the same battery suits simple and large builds.

How to use it (simple guide)

1) Pick the right charger

Use a LiFePO4-compatible charger. Also set the profile to lithium where possible. This helps protect cycle life.

2) Install it securely

Mount the battery firmly. Because it has detachable mounting feet, you can fit it neatly. Then keep terminals tight and protected.

3) Size your cables properly

Use quality cables and the right fuse. Otherwise, voltage drop can hurt performance. Also keep cable runs as short as you can.

4) Add a fuse and isolator

Fit a fuse close to the battery. Then add an isolator, so you can shut power off fast. This is safer, especially for touring.

5) Using it with an inverter Invicta Xero 12V 100Ah Lithium Battery with Bluetooth

This battery supports 150A continuous and 500A pulse. So it can run many common 2000W inverters. However, choose an inverter that matches your loads.

6) Monitor it in real time

Use Bluetooth for quick checks on your phone. If you run a larger system, use CAN bus for more detailed integration.

7) Temperature tips

Charge the battery between 0–60°C. Also discharge it between -20–55°C. If it’s hotter than that, improve airflow or relocate the battery.

Specifications Invicta Xero 12V 100Ah Lithium Battery with Bluetooth

  • Nominal Voltage: 12.8V

  • Nominal Capacity (25°C, 0.33C): 100Ah

  • Terminal: M8

  • Size (L x W x H): 308 x 168 x 211mm (approx)

  • Terminal Height: 220mm (approx)

  • Weight: 12.5kg

  • Max Charge Voltage: 14.5V

  • Standby: 13.8V

  • Cut-off Voltage: 11V

  • Max Discharge Current: 150A

  • Has a Max Pulse Discharge (3 sec): 500A

  • Max Cha rge Current: 100A

  • Cycle Life (100% DoD): >3000

  • Operating Temp (Charge): 0–60°C

  • Operating Temp (Discharge): -20–55°C

  • Communication: Bluetooth + CAN/RS485

  • Certification: IEC62619

  • IP Rating: IP67

https://www.facebook.com/4wdlightsandcamping.com.au

https://4wdlightsandcamping.com.au/product/best-battery-box-with-inverter/

Additional information

Weight 12.8 kg
Dimensions 33 × 20 × 24 cm
