Description

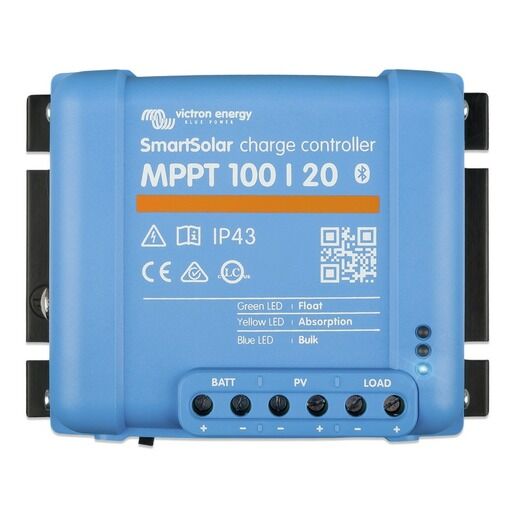

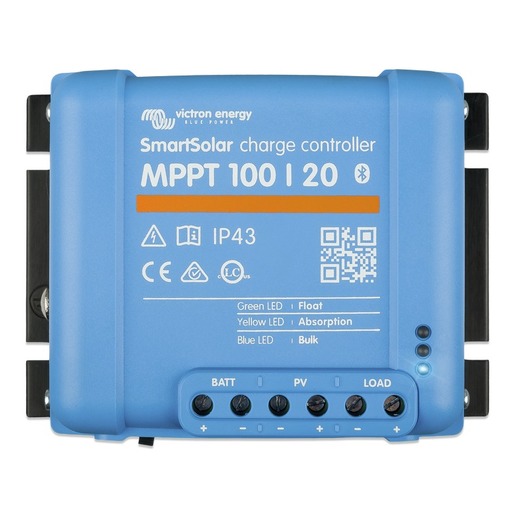

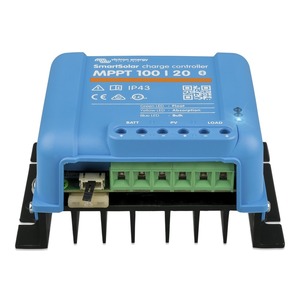

Victron SmartSolar MPPT Solar Regulator; 20A 12-48V / 100V
VICTRON SMARTSOLAR CHARGE CONTROLLERS MPPT 100/20 – 12/24/48V 20A WITH LOAD OUTPUT AND BLUETOOTH SCC110020160R
Victron SmartSolar MPPT Solar Regulator; 20A 12-48V / 100V Suits 12/24/48V Batteries, max 100V PV arrays, 20A battery charging, 20A Load supply, with Screw Terminals
Victron’s SmartSolar MPPT Solar Charge Controller is a fully customisable, fully featured, connected, regulator solution.
KEY FEATURES
– Flexible charging algorithms, customisable charging allows for SmartSolar regulators to be used on a variety of battery chemistries including Lithium.
– Advanced MPPT charging algorithm for optimised charging even in shaded conditions
– Outstanding Conversation Efficiency with over 98% efficiency.
– Bluetooth Smarts Built-in for easy wireless setup, monitoring, and system synchronisation, including connections to VictronConnect.
– Connections to GX products, PC or other devices.
– GX devices allow for integration into Victron Remote Management Portal (VRM) for monitoring and management.
Introducing the Victron SmartSolar MPPT, a cutting-edge solar charge controller engineered for efficient charging and maintenance of 12V, 24V, or 48V lead-acid or LiFeP04 batteries from 12/24V solar panels.
Therefor with its ultra-fast MPPT controller and advanced tracking algorithms, this charger optimizes solar panel output, ensuring maximum performance even in cloudy conditions. It boasts charging currents up to 15A, delivering rapid battery replenishment.
The charger’s adaptive 3-stage battery charging – bulk, absorption, and float – swiftly charges batteries while preserving their health. Choose from 8 preset charge algorithms or fully customize settings to suit your needs.
Activate equalization or BatteryLife modes for extended battery lifespan. The DC load output automatically disconnects devices at a set voltage to prevent over-discharging and battery damage. Monitor and control the charger via Bluetooth® enabled devices, ensuring seamless operation. Safety features include over-current, over-temperature, over-voltage, reverse battery or PV polarity, and output short circuit protection.
FEATURES:
- Supports Lead-acid and LiFeP04 Batteries
- Ultra-fast MPPT Controller
- Fully Programmable Battery Charge Algorithm
- Bluetooth® Enabled for App Control
SPECIFICATIONS Victron SmartSolar MPPT:
- Battery Voltage: 12/24V/48V (auto-select)
- Rated Charge Current: 15A
- Nominal PV Power: 220W/12V, 440W/24V
- PV Short Circuit Current: Max 15A
- PV Open Circuit Voltage: Max 75V
- Peak Efficiency: 98%
- Charge Voltage:
- Absorption: Adjustable between 14.4V/28.8V.
- Float: Adjustable between 13.8V/27.6V.
- Continuous Load Current: 20A.
- Low Voltage Load Disconnect: Adjustable options.
- Low Voltage Load Reconnect: Adjustable options.

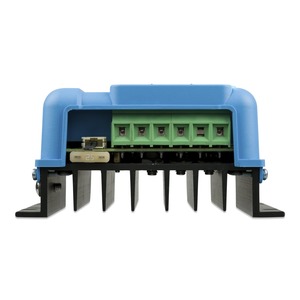

- Screw Terminals: 6mm2 (AWG10).
