Description
TOYOTA HILUX ALTERNATOR 12V 130A C/P OE REG SUITS TOYOTA HI-ACE, HI-LUX ENG 1KD-FTV 3.0L DIESEL CLUTCH
JAS Alternator 12V 130A C/P OE Reg – Suits Toyota HiAce, Hilux 1KD-FTV 3.0L Diesel
Product Code: ANJ249
The JAS Toyota Hilux Alternator 12V 130A power your Toyota with confidence.is built to meet the demanding electrical needs of modern 4WDs. Designed specifically for the 3.0L 1KD-FTV diesel engines, this alternator is a perfect match for both Toyota HiAce and Hilux models.
Whether you’re running extra lighting, dual batteries, fridges, or accessories, this heavy-duty alternator keeps your system fully charged. It’s a direct OE replacement, so installation is easy and fuss-free.
Built for Aussie Conditions Toyota Hilux Alternator
Let’s face it—Australia’s harsh conditions demand better gear. That’s why the JAS 130A alternator is engineered for reliability and performance. Rain, heat, dust, or long drives? No problem. This unit handles it all.
Additionally, it features a clutch pulley system, which reduces strain on the drive belt. This means longer belt life, smoother operation, and less wear on your engine components.
Key Specifications Toyota Hilux Alternator
-
Voltage: 12V
-
Amperage: 130A
-

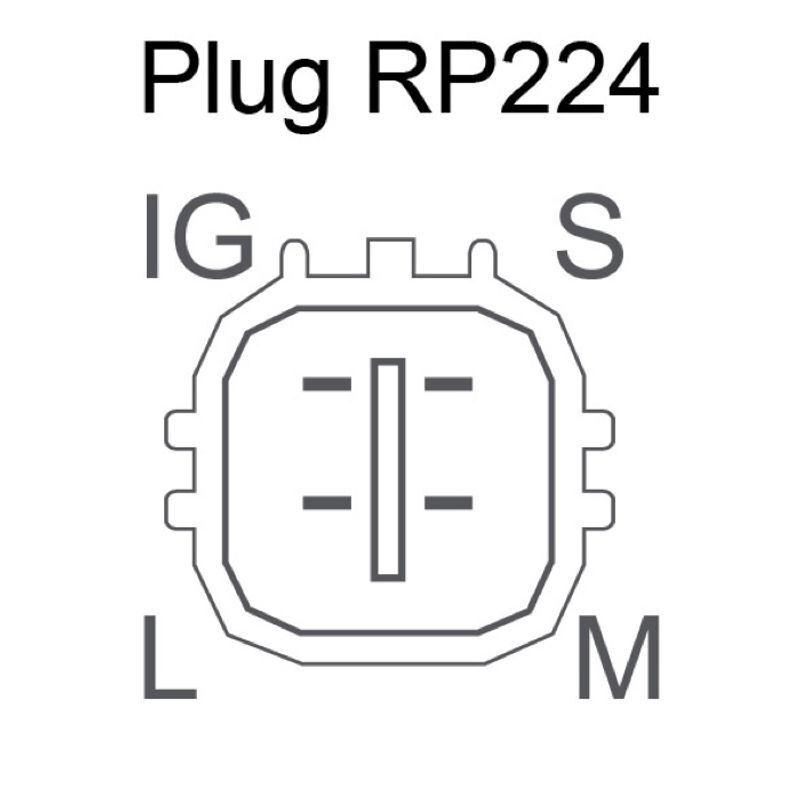

Plug Type: RP224 (common Toyota type)
-
Pulley Diameter: 63mm
-
Number of Grooves: 7PV (serpentine)
-
Adjust Hole: M8 x 1.25
-
Pivot Hole: 10mm
-
Adjust Hole to Pivot Hole Centre: 163mm
-
Pivot Length: 60mm
-
Product Code: ANJ249
These specs ensure a perfect fit for many Toyota HiAce and Hilux models running the 1KD-FTV 3.0L diesel engine.
Why Choose a 130A Alternator?
Modern 4WDs and work vehicles often run power-hungry accessories. Think winches, LED light bars, UHF radios, fridges, inverters, and dual battery setups. The stock alternator might struggle to keep up.
That’s where this 130A upgrade comes in.
It delivers more charging power while maintaining the same fitment and plug configuration. No need for custom brackets or wiring. Just bolt it in and go.
Designed for the 1KD-FTV 3.0L Diesel Engine
This engine is known for reliability, torque, and long life. It’s found in popular models like:
-
Toyota HiAce (various diesel models)
-
Toyota Hilux (3.0L D4-D turbo diesel)
The JAS alternator is tailored to suit this engine family. It mounts using the factory points, accepts the stock belt, and uses the OE-style plug for plug-and-play convenience.
High Output, Low Hassle Toyota Hilux Alternator
With 130 amps on tap, you’ll never have to worry about low battery voltage. Even while idling, this unit supplies strong current. Perfect for slow crawls in 4WD terrain or while using accessories at a job site.
In addition, the internal regulator helps manage output safely and effectively. Your battery stays healthy, your electronics stay powered, and you stay confident.
OE-Style Reliability
JAS alternators are known for quality. This unit meets or exceeds OE specifications, offering performance equal to, or better than, the factory-fitted unit.
Because it’s based on OE design, installation is a breeze. There’s no cutting, splicing, or guessing. Everything lines up the way it should.
Perfect For:
-
Tradies running high-draw tools and inverters
-
Tourers with fridges, DC-DC chargers, and solar
-
Campers running dual batteries or lithium setups
-
4WDers with winches, lights, and air compressors
Clutch Pulley Benefits
One standout feature is the clutch pulley. This helps absorb torsional vibrations, especially during engine shut-down. The result? Reduced wear on the alternator and belt.
This system also helps prevent belt squeal and slippage, which can be common under high load. It’s a small detail that makes a big difference in long-term performance.
Easy Installation
Because it’s an OE-style replacement, installation is straightforward. No rewiring. No adaptors. Just unbolt the old alternator and drop this one in.
The included RP224 plug connects directly to your existing harness. The 7PV pulley accepts your standard serpentine belt. All mounting points are factory-correct.
Backed by JAS Quality Toyota Hilux Alternator
JAS Electrical is a trusted name in automotive electrical systems. With strict quality control, high-grade components, and precision engineering, you’re getting a product that’s built to last.
So, whether you’re off-road, on-site, or anywhere in between—this alternator delivers peace of mind.
Summary
✅ Heavy-duty 130A output
✅ Suits Toyota HiAce and Hilux 1KD-FTV 3.0L Diesel
✅ OE-style fitment with RP224 plug
✅ 7PV clutch pulley for smooth operation
✅ Built tough for Aussie conditions
✅ Easy installation, no modifications required
Don’t Get Left in the Dark
Your vehicle powers more than just headlights. Don’t let a weak alternator leave you short. Upgrade to the JAS 12V 130A Alternator (ANJ249) and keep everything running strong—from your tools and lights to your fridge and battery system.
Order yours today and drive with confidence!
