Description

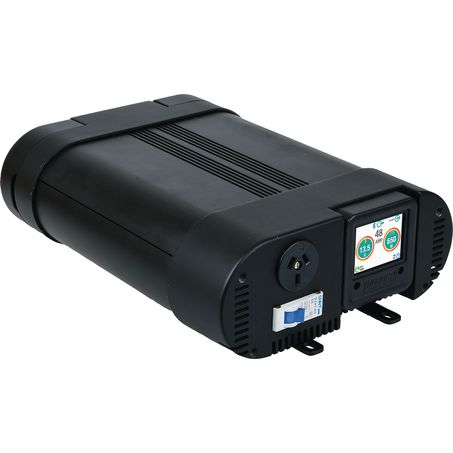

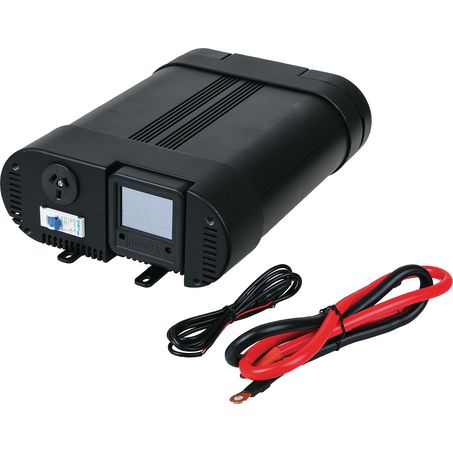

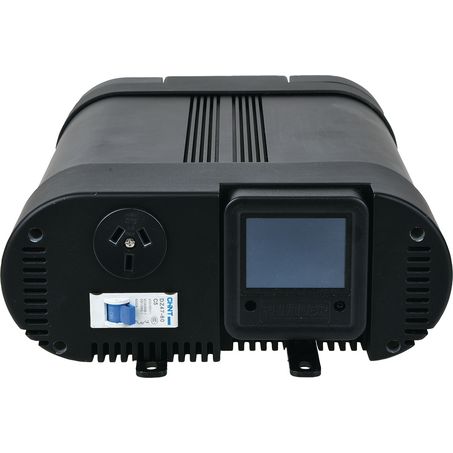

TDR021000 – THUNDER 1000W PURE SINE WAVE INVERTER
Thunder 1000 watt Inverter can be used on Camping Trips or while caravaning around or Camper Trailers Just connect to a deep cycle Battery Connect solar panels to your solar Regulator, Connect your regulator to the battery then connect the inverter to the Battery, plug in your laptop phones lights what ever power requirements you may need. the display on the inverter will tell you battery power levels.
Specifications for Thunder 1000 watt Inverter:
Continuous Output Power: 1000W.
Peak Power (only for a short time): 2000W
Output Overload Protection (manual restart): 1100W.
Output Voltage: 240V.
Efficiency (full load): 90%.
Safety Switch: 5A250VAC.
Input Cable Type Supplied: 70cm AWG6 (13.3mm2).
External Fuse Specification: 80A.
Measurements: 310x233x95mm (80mm C2CMount holes).
Minimum Input Voltage: 11V.
Output Frequency: 50Hz.
Output Waveform: Pure Sine Wave.
Input Voltage Range: 11-15V.
The Input Low Voltage Warning: 11.5V.
Input Low Voltage Cut-off: 11V.
Input Over-Voltage Cut-Off (automatically resets): 15.5V.
Standby Current (when main switch is off): 11mA.
No Load Working Current (when main switch is off): 0.5-0.6A.
Protection Systems (output): Over/under-voltage protection, overheating protection, overload protection, output short circuit protection.
LCD Display Functions Displays: output power, input voltage, input current and also has an on/off button for switching unit on/off.
LCD Screen Extra Cable Length: 0.3m and 1.7m extension cable for LCD display unit power supply.
Internal Operating Temperature Range: -10C – 50C.
Internal Over-Temperature Protection (requires manual reset): 60C – 65C.

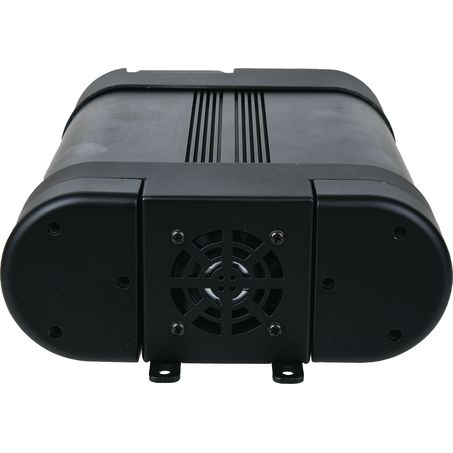

Cooling Fan: Single brushless fan (automatic operation).
Fan Control Method: Temperature maintained at 40C 10C.
Approvals: CE, EMC, AS/NZS 4763:2011.
Part No. | TDR021000 |
Type | INVERTORS |
Brand | THUNDER |
Unit of Measure | EACH |
Description | Thunder 1000W Pure Sine Wave Inverter |
Warranty | Three Years |
Watts | 1000 |
Voltage From | 11 |
Voltage To | 15 |
Inverter Type | Pure Sine Wave |
Item Type | Inverter |
Material Type | Aluminium Housing |
Surge Rating | 2000 |
Features | Removable 2.4inch Bluetooth colour LCD display with touch screen functionality for switching main unit on/off and displays inverter input voltage, amperage, output wattage and also low voltage warning. Single 240VAC outlet. Safety switch to turn on/off unit 240VAC output and for instantaneous output cut-off in the event of an accidental short circuit. Shuts down output at 11V along with warning icon on LCD screen. Over/under voltage, output short circuit, over temperature protection. |
