Description

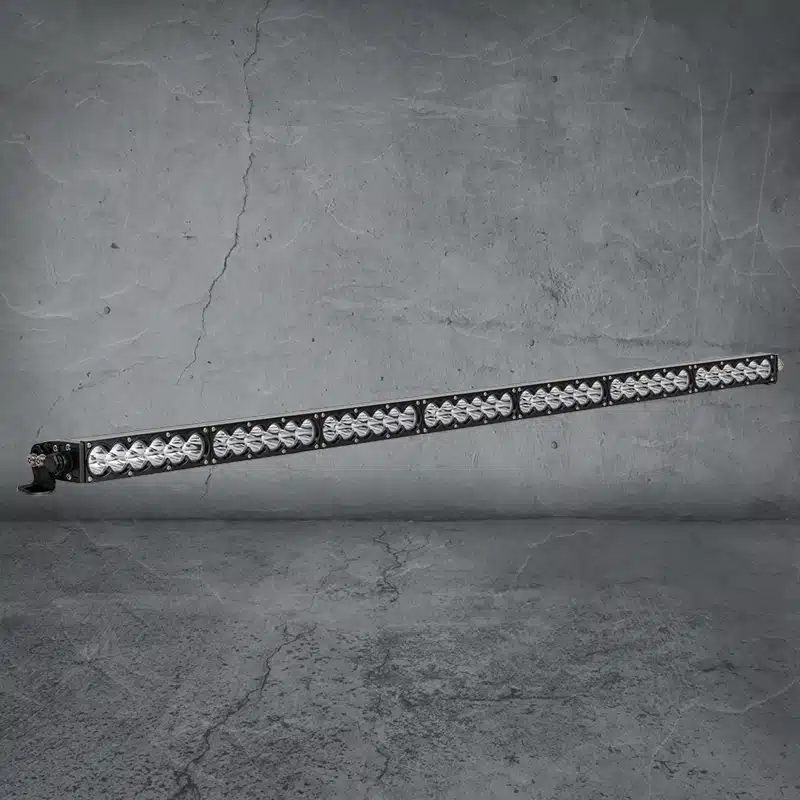

Raptor 210 LED 45″ Light Bar (210W) – Made in Australia
The Raptor 210 LED 45″ Light Bar is built for harsh Aussie conditions and serious night driving. It’s made in Australia, and it’s designed for the toughest environments on earth. Choose 4000K for a warmer light or 5700K for a crisp white beam. Also, you can select Combo or Spread to match your driving style.
Raptor 210 LED 45″ Light Bar features
The Raptor 210 LED 45″ Light Bar uses a high pressure extruded aluminium body, so it stays strong while remaining lightweight. Plus, the high impact polycarbonate lens adds extra protection. As a result, this bar handles corrugations, vibration, and off-road punishment.
Light Bar beam pattern options

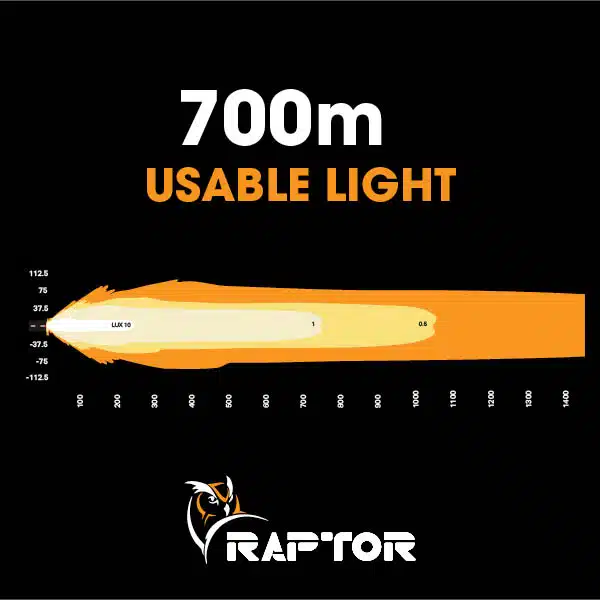

The 210 watt LED 45″ Light Bar uses an open-optic reflector that delivers strong distance and wide peripheral coverage. In addition, you get over 100° width from one lamp type. Therefore you can see further down the road while still spotting hazards on the edges.
Choose your beam type:
- Combo beam for distance and spread
- Spread beam for wider coverage on tracks and work zones
Raptor 210 LED 45″ Light Bar colour temperature options (4000K or 5700K)
The 210 watt LED 45″ Light Bar comes in two colour temperatures, so you can tune visibility and comfort.
- 4000K: warmer tone, often easier on the eyes in dust and rain
- 5700K: crisp white light for clear, sharp visibility
Raptor 210 LED 45″ Light Bar mounting and included hardware
The Raptor 210 LED 45″ Light Bar includes stainless steel pivot brackets and stainless fixings. Also, it includes a 3-metre lead for roof rack mounting. So you can install it neatly and keep it secure.
Light Bar warranty and harness note
The Raptor 210 LED 45″ Light Bar includes a 5-year warranty, with the option to extend by a further year. However, the wiring harness is not included. This bar suits the DV12HD harness, sold separately.
Raptor 210 LED 45″ Light Bar specifications
- Wattage: 210W
- Light source: 42 × 5W LEDs
- Light output (effective): 20,185 lumens
- Voltage: 9–36V
- Current draw: 15.5A
- Light output (raw): 25,000 lumens
- Operating temperature: -40°C to +80°C
- Waterproof rating: IP67
- Connector: 2-pin heavy duty Deutsch plug
- Housing: Aluminium
- Lens: Polycarbonate
- Brackets: Stainless steel
- Colour temperature: 4000K or 5700K
- Lifespan: 50,000 hours
- Dimensions: 1147 × 45 × 73mm
- Net weight: 3.4kg
- Mounting: Side mounts
- Beam types: Combo or Spread
- Warranty: 5 years
- Harness included: No (DV12HD harness required)
Raptor 210 LED 45″ Light Bar part numbers (variants)
Spread
- 4000K: RAP210LBRRS4v2
- 5700K: RAP210LBRRSv2
Combo
- 4000K: RAP210LBRR4v2
- 5700K: RAP210LBRRv2
