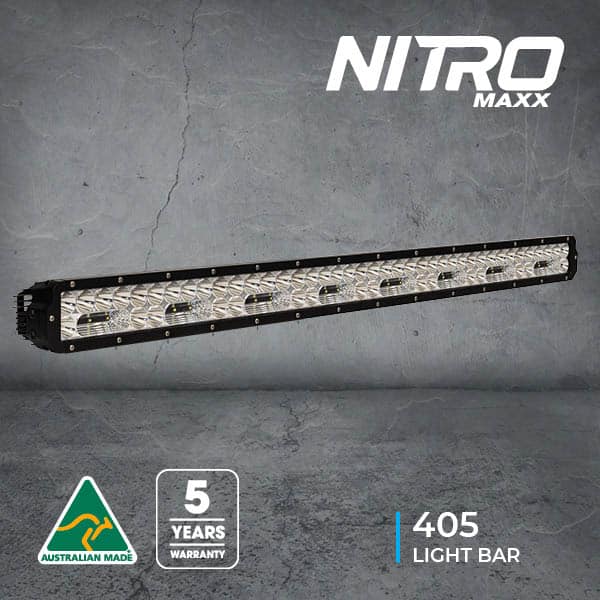

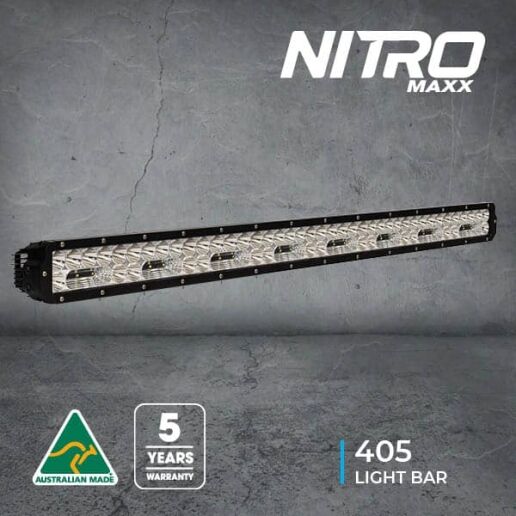

NITRO Maxx 405W 45″ LED Light Bar | Widr® Optic + Hi/Lo
The NITRO Maxx 405W 45″ LED Light Bar delivers serious performance with huge distance and width. It’s designed and made in Australia for the toughest environments on earth. Plus, the unique Widr® Optic reflector gives market-leading output with excellent spread.

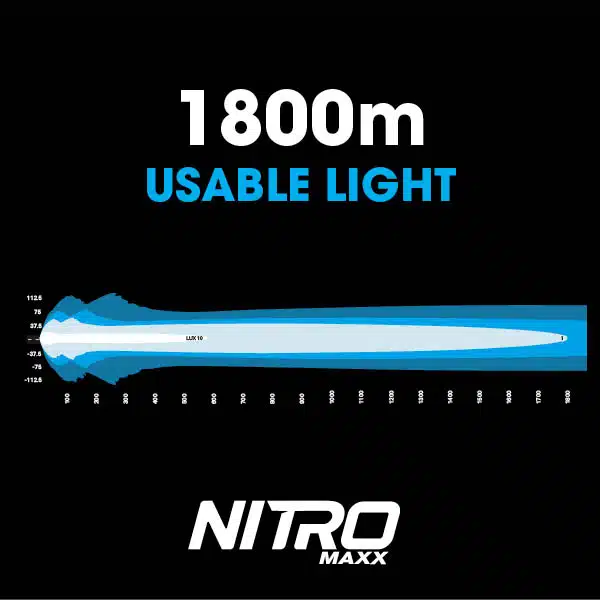

You also get usable light out to 1800m, so night driving feels safer and more confident.
405W 45″ LED Light Bar performance and beam
This bar uses reflector tech that’s built to push light further while keeping width strong. So you get a beam that suits open-road touring, as well as off-road tracks.
Beam types:
- Combo and Widr® beam options
- Up to 170° spread on Widr® models (great for shoulder visibility)
Also, the updated 405W model delivers an increased beam distance compared with earlier versions.
NITRO Maxx 405W 45″ LED Light Bar colour temperature options
Pick the light colour that suits your driving comfort.
- 4500K option for a warmer tone and reduced glare in dust or rain
- 5700K option for a crisp white output and sharp detail
So you can match the bar to your environment and preference.
NITRO Maxx 405W 45″ LED Light Bar Hi/Lo function options
The Hi/Lo models add extra flexibility in changing conditions.
- Hi Output gives you maximum performance for open roads
- Lo Output reduces output for dusty, foggy, or sign-glare conditions
Please note: Lo output reduces the light bar’s output while high beam is still on. It does not run alongside the vehicle’s low beam.

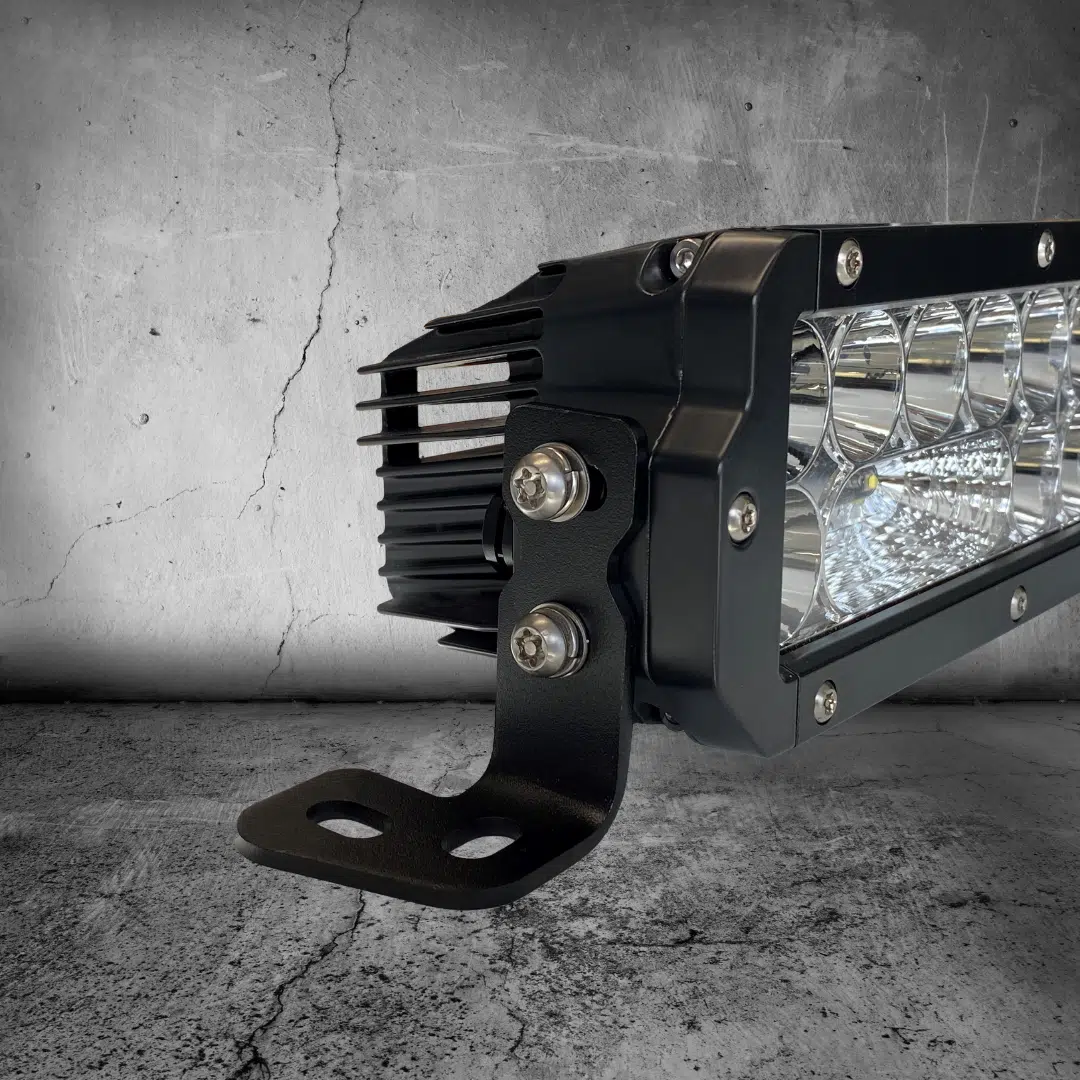

45″ LED Light Bar mounts and fitment
Both base and side mounts are available. Also, the bar uses sliding base / side mounts, so fitment is easier on more setups. Therefore it suits bull bars, bumpers, and roof rack builds.
NITRO Maxx 405W 45″ LED Light Bar inclusions
You get a premium kit ready to install:
- Wiring harness included: Yes (DV12HD)
- Anti-theft nuts included free of charge
- Clear protective lens covers included
So you can install it faster and protect it from day one.
NITRO Maxx 405W 45″ LED Light Bar build quality
This light bar is built for harsh conditions and heavy use:
- Housing: 6063 T5 aluminium
- Outer lens: polycarbonate
- Waterproof rating: IP68
- Connector: 2-pin standard Deutsch
As a result, it’s made to handle water, dust, vibration, and heat.
NITRO Maxx 405W 45″ LED Light Bar specifications
- Wattage: 400W
- Light source: 80 × 5W LEDs
- Light output (raw): 48,800 lumens
- Light output (effective): 37,750 lumens
- Voltage: 9–36V
- Current draw: 26A
- Operating temperature: -40°C to +80°C
- Waterproof rating: IP68
- Connector: 2-pin standard Deutsch
- Housing: 6063 T5 aluminium
- Outer lens: polycarbonate
- Brackets: sliding base / side mounts
- Colour temperature: 4500K or 5700K
- Lifespan: 50,000 hours
- Dimensions: 1165 × 92 × 84mm
- Net weight: 7.7kg
- Mounting: base or side mount
- Beam types: Combo and Widr®
- Warranty: 5 years
- Harness included: Yes (DV12HD)
NITRO Maxx 405W 45″ LED Light Bar part numbers
- Black Rim, 4500K: DVM405LEDBW4
- Black Rim, 5700K: DVM405LEDBW
- Widr®, Chrome Rim, 5700K: DVM405LEDBW-C
- Black Rim, 4500K, Hi/Lo: DVM405LEDBW4/3
- Widr®, Black Rim, 5700K, Hi/Lo: DVM405LEDBW/3
