Description

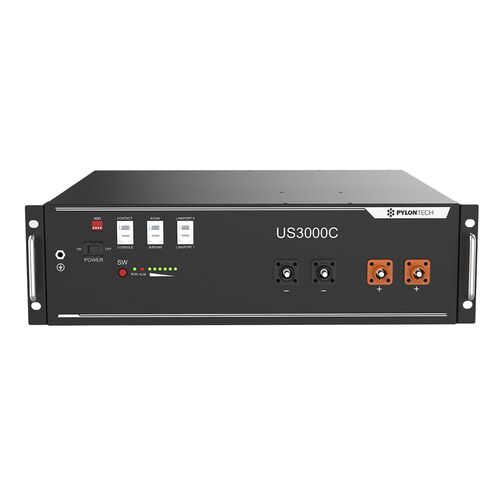

Pylontech US3000C Lithium Battery Module (48V, 3.5kWh)
Pylontech US3000C is the latest ESS battery system provided by Pylontech. Therefor it’s designed around providing a longer service life at higher power output/density per module. Besides its high storage capacity and ease of installation it provides the ability to scale up to commercial sized storage systems and are used effectively in these high power demand environments.
Note that a Pylontech cable kit will be required to connect a single battery or battery bank to an inverter charger.
Features and benefits of the
- The expected design life is 15+ years
- Warranty of 10 years (>6000 cycles with 80% end-of-life capacity)
- Greater depth of discharge (DOD 90%)
- Usable capacity of 3.2kWh @ 48VDC
- Working temperatures of between 0°C to 50°C
- The internal molecular structure of the LFP batteries is more stable and therefore safer, allowing an increase in the combustion temperature of 600°C compared to 300°C relative to NMC and LCO
- Advanced BMS that allows you to report alarms in real-time
Specifications
| Nominal Voltage(V) | 48 | ||||
| Nominal Capacity (Wh) | 3552 | ||||
| Usable Capacity (Wh) | 3200 | ||||
| Dimension(mm) | 442x420x132 | ||||
| Weight(Kg) | 32 | ||||
| Discharge Voltage(V) | 45~53.5 | ||||
| Charge Voltage(V) | 52.5~53.5 | ||||
| Charge / Discharge Current (A) | 37 (Recommend) | ||||
| 74 (Max) | |||||
| 100 (Peak@15s) | |||||
| Communication Port | RS485ˈCAN | ||||
| Single string quantity(pcs) | 8 | ||||
| Working Temperature/ć | 0~50 | ||||
| Shelf Temperature/ć | -20~60 | ||||
| Humidity | 5%~85% | ||||
| Altitude (m) | <2000 | ||||
| Design life | 15+ Years (25ć/77̧) | ||||
| Cycle Life | >6000, 25℃ | ||||
| Authentication Level | IEC62619/CE /UN38.3 |
| SKU | PYL.US3000 |
| Model # | US3000C |
| Brand | Pylontech |
| Shipping Weight | 38.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.300m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.108000000m3 |
| Assembled Length | 0.420m |
| Assembled Height | 0.132m |
| Assembled Width | 0.442m |
About
They have over 10 years operation specialising in stationary battery energy storage systems (BESS) or stand-alone power systems (SAPS). Pylontech has delivered an incredible storage capacity of over 3GWH, in over 80 countries, making them top 3 in the world.
Pylontech specialize in reliability and performance with safe LFP technology for voltages of 12V (extra low voltage) to 1500V (high voltage).
Pylontech’s high quality is very popular as the core component for other brands such as Sonnen and Redback.
The Pylontech range includes rack mounted and stackable models that are Clean Energy Council (CEC) approved as a pre-assembled Battery System.
Pylontech managed lithium batteries can be used to deliver a fully integrated and supported system with Victron Energy, Selectronic and SMA inverter/chargers.
Pylontech batteries are compatible with over 40 of the world’s best-known inverters. Click here for a complete list of approved inverters.
Pylontech is a vertically integrated manufacturer of tier one ‘smart’ or ‘managed’ lithium batteries. It controls every facet of production from the lithium mines, to the silicon chips and cell production – nothing is outsourced.
