Description
Light Bar Ford Ranger – Power Meets Style
When you own a Ford Ranger Raptor, you want performance that matches its looks. That’s where the Ultra Vision Light Bar Ford Ranger Kit shines. It’s designed specifically for the Next-Gen Ranger Raptor (2022-on).

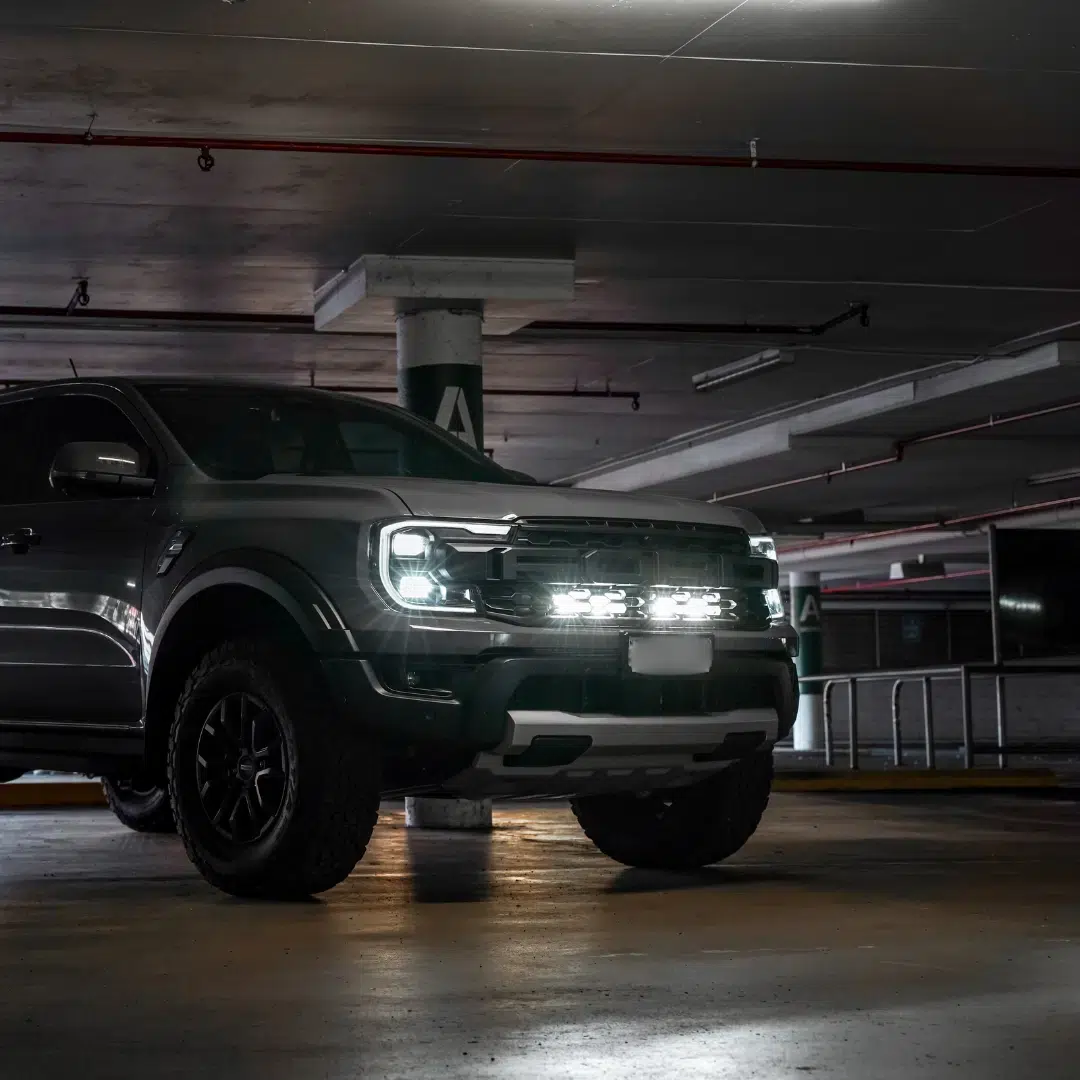

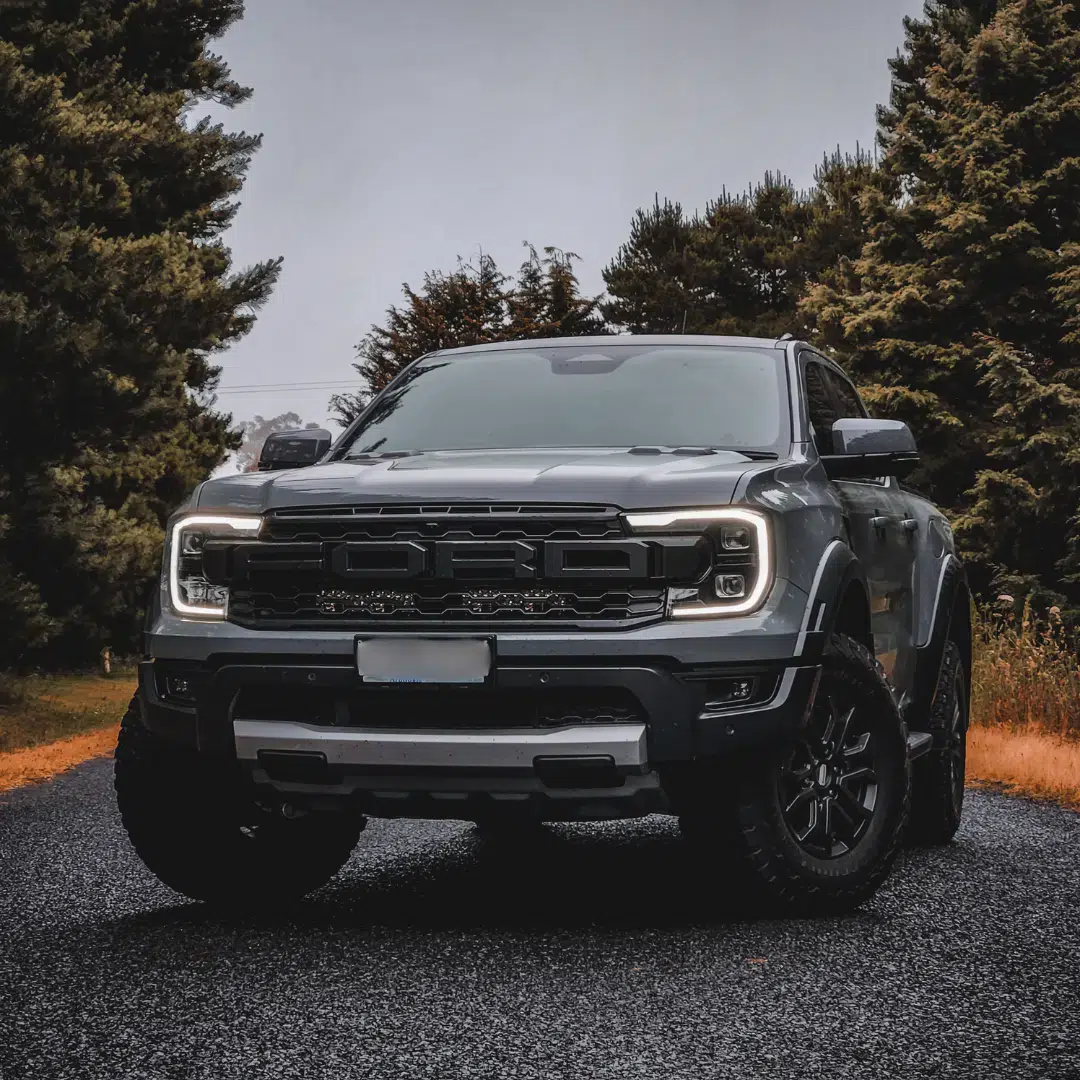

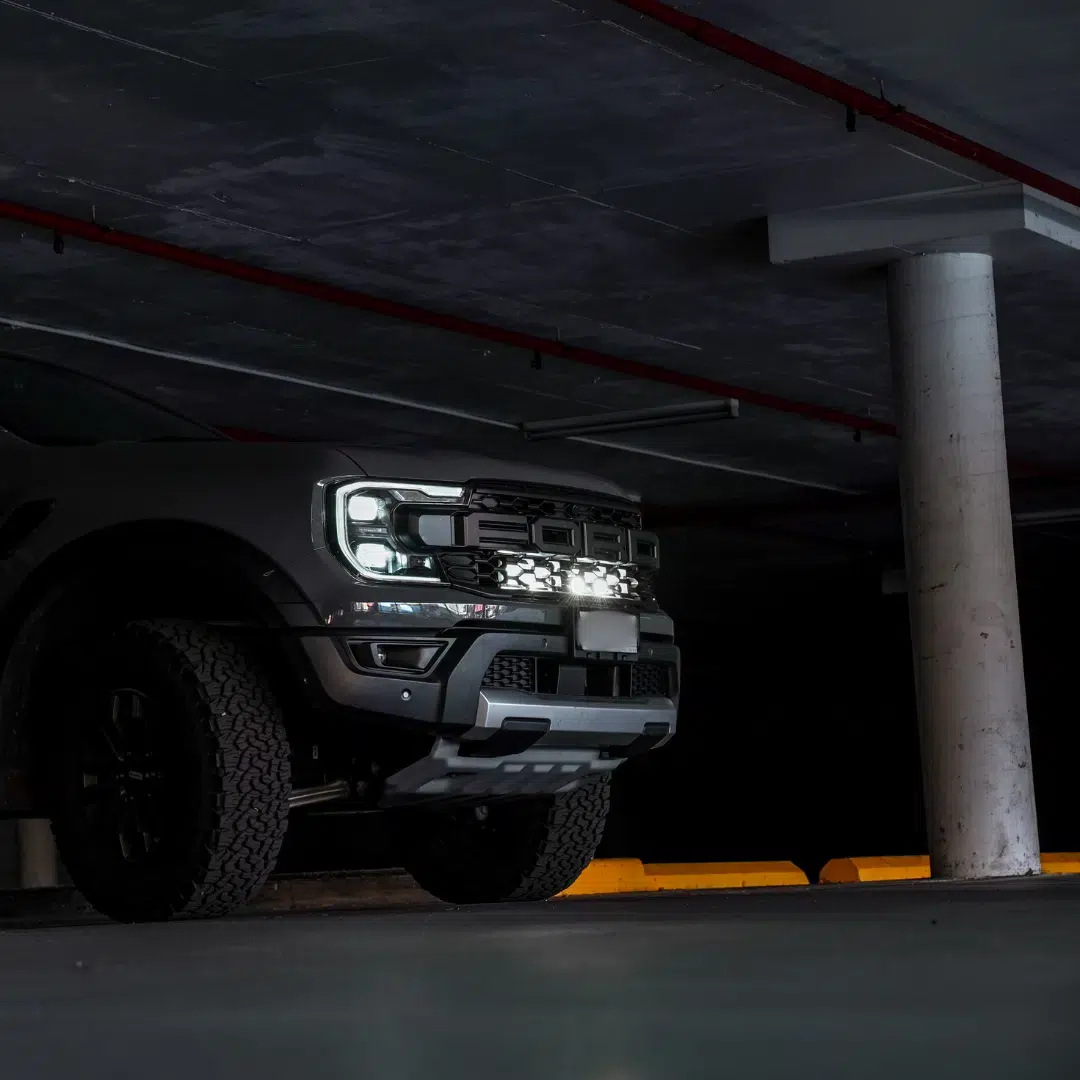

This kit mounts cleanly behind the grille, so you don’t need a bull bar or any cutting. As a result, your front end stays sleek while lighting up the darkest tracks. It’s the ultimate combination of strength, style, and simplicity.
Built for the Next-Gen Ranger Raptor
Because this kit was made precisely for the Raptor, every component aligns perfectly. It bolts to existing factory points, creating a solid, vibration-free fit. You’ll notice how sturdy it feels even on rough roads.
Additionally, you can choose between two setups — the dual Nitro Maxx 105 W 13-inch bars or the single Raptor 165 W 26.5-inch bar. Both deliver massive light output and wide spread, but each fits different preferences.
The Nitro Maxx bars include Ultra Vision’s Widr® Optic, a reflector that pushes distance while maintaining exceptional side coverage. Therefore, you see more of the track ahead and around you.
Easy Installation with No Hassle Light Bar Ford Ranger
Installation couldn’t be easier. Since the brackets use existing mounting points, there’s no need to drill or modify anything. Only the top grille shroud needs temporary removal for access.
Every kit includes:
-
Choice of Nitro Maxx or Raptor light bars (5700 K)
-
Custom black powder-coated bracket kit
-
High-beam plug-and-play wiring harness
-
Mounting hardware (nuts, bolts, brackets)
-
Full wiring and fitting instructions
Because everything is included, setup takes less time and delivers a cleaner result.
Strong Benefits for 4WD and Touring Light Bar Ford Ranger
No matter where you drive — from Sydney’s Northern Beaches to the outback — this kit performs brilliantly.
-
Greatly improves night-time visibility and reaction time.
-
Keeps your front end clean, with a factory-fit finish.
-
Eliminates the need for a bulky bull bar.
-
Installs fast, with no drilling or cutting required.
-
Includes a reliable 5-year warranty for peace of mind.
Moreover, the 6063 T5 aluminium housing and polycarbonate lens make these lights incredibly durable. They handle water, dust, and heat easily, ensuring long-term performance.
Choose Your Ideal Light Setup Light Bar Ford Ranger
Both lighting options are engineered for serious performance. Yet they cater to slightly different needs:
-
Dual Nitro Maxx 105 W (13-inch) – Compact, powerful, and equipped with Widr® optics. Excellent for wide, even illumination.
-
Single Raptor 165 W (26.5-inch) – High-output design for maximum distance and penetration. Ideal for open roads or desert runs.
Either way, you’ll enjoy intense brightness, a crisp 5700 K colour temperature, and consistent coverage. Therefore, you can drive confidently anywhere — from tight bush tracks to long country roads.
Technical Specifications
| Feature | Nitro Maxx 105 W (13″) | Raptor 165 W (26.5″) |
|---|---|---|
| Wattage | 105 W | 165 W |
| Light Source | 20 × 5 W LEDs | 24 High-Power LEDs |
| Raw Lumens | 12,320 lm | 18,609 lm |
| Effective Lumens | 8,865 lm | 15,240 lm |
| Voltage Range | 9–36 V | 9–36 V |
| Current Draw | 8 A | 13 A |
| Temperature Range | −40 °C – +80 °C | −40 °C – +80 °C |
| Waterproof Rating | IP68 | IP67 |
| Connector Type | 2-Pin Deutsch | 2-Pin Heavy-Duty Deutsch |
| Housing Material | 6063 T5 Aluminium | 6063 T5 Aluminium |
| Lens Material | Polycarbonate | Polycarbonate |
| Mounting Bracket | Sliding / Side Mounts | Side Mounts |
| Colour Temperature | 5700 K | 5700 K |
| Lifespan | 50,000 hours | 50,000 hours |
| Warranty | 5 Years | 5 Years |
Engineered Tough for Australian Conditions
Ultra Vision builds and tests all their lighting here in Australia. Consequently, the lights are ready for corrugations, dust, mud, and heat. Each bar delivers crisp white light close to natural daylight, which reduces glare and eye strain during long drives.
Because the kit mounts behind the grille, it’s better protected from stones, branches, and debris. Additionally, it keeps airflow unrestricted, helping your engine breathe freely. This stealthy design looks clean but performs hard.
Warranty and Local Support
Every Ultra Vision light bar kit includes a 5-year warranty, which covers manufacturing and performance. Ultra Vision’s Aussie support team is always available for advice, spares, or installation questions.
Their gear is built for local conditions, so you know it’ll last through years of touring and tough use. Consequently, it’s a favourite among 4WD owners who demand both function and reliability.
FAQs
Q: Does this kit fit the Bi-Turbo Ranger?
No. It’s designed for the Raptor only because of grille layout differences.
Q: Do I need extra wiring or accessories?
No. Everything required comes in the kit.
Q: Can I use other light bar brands?
No. These brackets are made specifically for Ultra Vision lights, ensuring perfect fit and warranty coverage.
Q: Is the light output legal for on-road use?
Yes, when installed correctly and wired through the high-beam circuit. Always confirm with local laws.
Q: How long does installation take?
Usually between one and two hours for most DIYers or installers.
Final Thoughts
If you’re chasing a premium light bar Ford Ranger setup that looks factory but performs like a beast, this kit’s for you. It’s simple to install, tough as nails, and designed by Aussies who know real off-road conditions.
Additionally, it keeps your Raptor stylish while boosting visibility tenfold. Whether you’re camping, working, or exploring off the grid, you’ll appreciate the power and precision of Ultra Vision.
👉 Light up your next adventure — with the Ultra Vision Behind-Grille Light Bar Kit for Ford Ranger Raptor.
