Description
POLY DIESEL TANKS
Boab Poly Diesel Tanks offer a simple, reliable way to carry extra fuel. Tough, lightweight, and easy to install, they fit perfectly in your 4WD or ute. With a smart gravity feed system, refueling on the go has never been easier. Ideal for long trips and off-road adventures.
Need more range without spending big or making major mods? The BOAB 42L Vertical Poly Diesel Tank is your answer. It’s a smart, simple solution that fits neatly in most dual cab utes or wagons.
Because it’s designed as a drop-in tank, there’s no cutting or complex install. Just mount and go! This tank uses a gravity feed system, so there’s no need for pumps or wiring. The quick, convenient way to extend your vehicles range without any major modifications or large expense! BOAB Poly Diesel Tanks are a ‘drop in’ installation with a simple gravity fuel feed.
The quick, convenient way to extend your vehicles range without any major modifications or large expense! BOAB Poly Diesel Tanks are a ‘drop in’ installation with a simple gravity fuel feed.

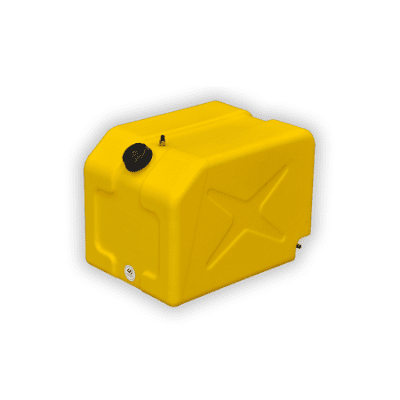

Key Features:
– Double jerry can shape and size
– Use as stand-alone tank or built in
– Supplied with screw filler cap
– Brass vent and brass outlet for 10mm hose.
– Dimensions (mm): 460(L) x 335(W) x 335(H)
Boab Poly Diesel Tanks

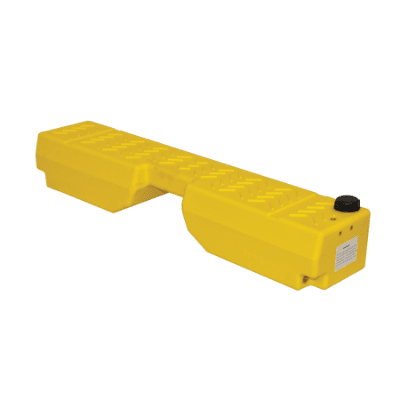

Key Features:
Shaped to fit in footwell behind front seats
Ribbed top is strong enough to support items stored on top of tank
Screw cap filler
1/2” BSPT brass outlet each end
Nutserts for handles & mounts
– Dimensions (mm): 1200(L) x 250(W) x 210(H)
Tunnel cutout dimensions: 110mm height x 420mm width at base
Console cutout dimensions: 60mm height x 200mm width
Total Weight: 5Kg

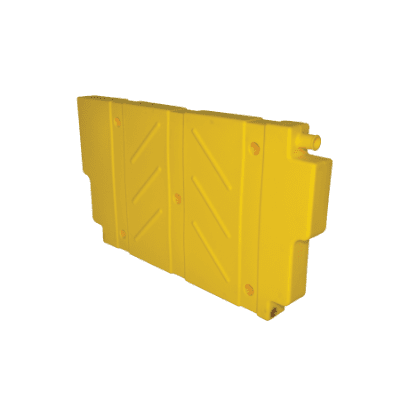

– Remote or close-coupled filler cap
– 1/2” BSPT brass outlet and breather fittings
– Spigot suits 38mm ID hose
– Dimensions (mm): 1090(L) x 90(W) x 580(H)
– Total Weight: 8Kg
– Optional Accessories: Filler kit FTPFK1 optional.
Boab Poly Diesel Tanks
– Screw cap filler
– 1/2” BSPT brass outlet in recess
– Dimensions (mm): 1300(L) x 75(W) x 600(H)
– Cut out dimensions: 275mm height x 200mm width
– An additional small rebate contains the brass outlet

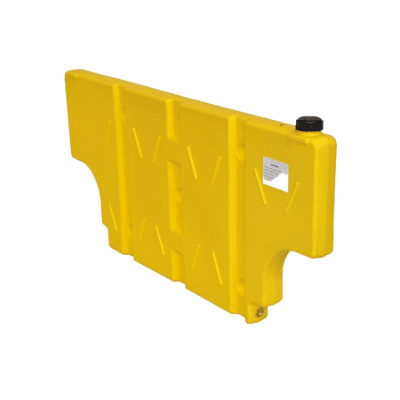

BOAB 42L Vertical Poly Diesel Tank – Easy Range Extension for Your 4WD
Built Tough and Ready for Adventure
Made from durable polyethylene, this tank is built to handle tough Aussie conditions. Whether you’re hitting the tracks or touring outback, it’s made to last.
It also features wheel arch cut-outs, allowing a neat fit over rear arches inside most vehicles.
Easy Fuel Connections
At the base of the tank is a ½″ BSPT brass female outlet. A hose adaptor for 10mm (3/8″) fuel hose is included. That means you can connect it up quickly and without extra trips to the hardware store.
Near the filler cap, there’s a ¼″ BSP brass insert. You’ll also get a vent and 500mm hose kit, so your tank can breathe properly. The vent hose is long enough to place above the tank, reducing the chance of spills or fumes.
Boab Poly Diesel Tanks
For Internal Mounting? Use a Vent Kit
If you plan to mount the tank inside the cabin or canopy, it’s highly recommended to use the optional vent extension kit (Part No: FTUVK). This gives you two options:
-
Extend the standard vent hose to a better location.
-
Or better yet, link it into your vehicle’s main fuel tank ventilation system.
This helps avoid fuel vapours inside your 4WD while keeping everything legal and safe.
Key Benefits at a Glance:
-
Adds 42 litres of extra diesel storage
-
Gravity-fed for simple, reliable fuel delivery
-
Drop-in design – no major mods needed
-
Strong, UV-stable polyethylene build
-
Includes outlet and breather fittings
-
Ideal for dual cab utes and wagons
-
Optional vent kit improves safety and setup
Part of BOAB’s proven touring range, this tank is made to go the distance. Whether you’re tackling big trips or just need extra fuel security, it’s a must-have 4WD upgrade.

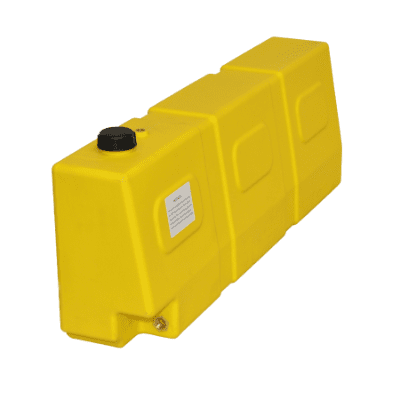

– Universal fit with tapered top to maximise space.
– Ideal for fitment behind seats, in wagons or in ute trays
– 1/2″ BSPT Brass Outlet
– Dimensions (mm): 1000(L) x 195(W) x 378(H).

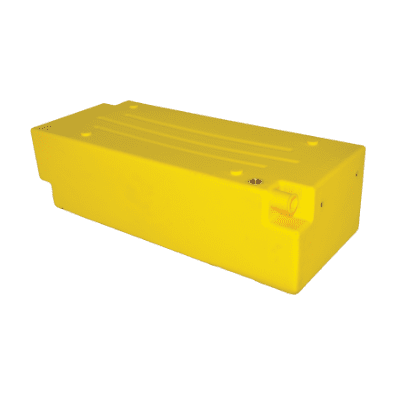

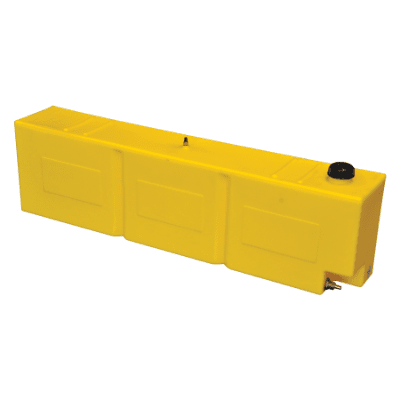

Key Features:
– For use in ute trays, built-in and other applications
– Pump or gravity feed
– Supplied with screw cap filler
– Brass vent and brass outlet for 10mm hose
– Dimensions (mm): 1120(L) x 190(W) x 305(H)
– Total Weight: 6Kg
Key Features:
– Spigot filler neck for flat or upright mounting and concealment in storage system or ute canopy with remote hose filler
– Can be stored vertical or flat depending on application and space
– 1/2” BSPT brass outlet and breather fittings
– Spigot suits 38mm ID hose
– Nutserts for mounting
– Dimensions (mm): 840(L) x 345(W) x 235(H)
– Total Weight: 6Kg
– Optional Accessories: Filler kit FTPFK1 optional

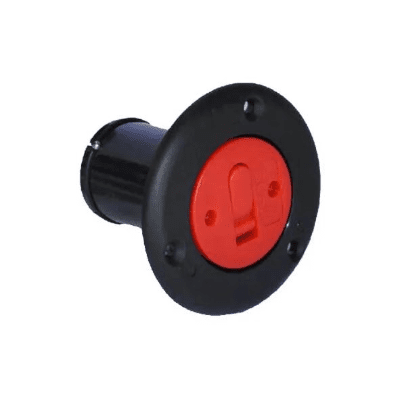

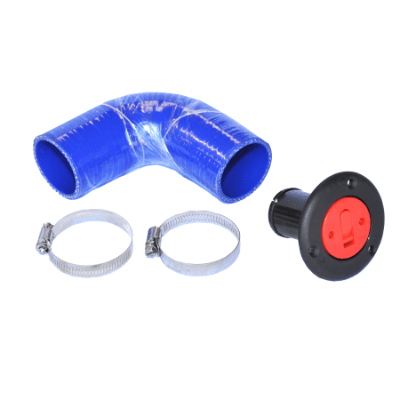

Key Features:
– Water Tank Filler kit suits: WTP45FV / WTP60FV
– 1 x elbow hose
– 2 x clamps
– 1 x Flush Fller cap
BOAB diesel tanks & accessories are a quick, convenient way to extend your vehicles range without any major modifications or large expense!

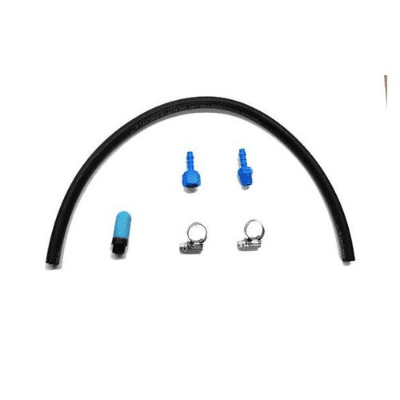

Included in the kit:
Fuel Line Tubing – 6mm
Pneumatic Silencer/breather with ¼” BSP male thread
¼” BSP male thread to 6mm barb
¼” BSP Female thread with 6mm barb
Thread Tape 12mm x 10m Roll (White)
Clamp (304 Stainless Steel) 10mm-16mm.

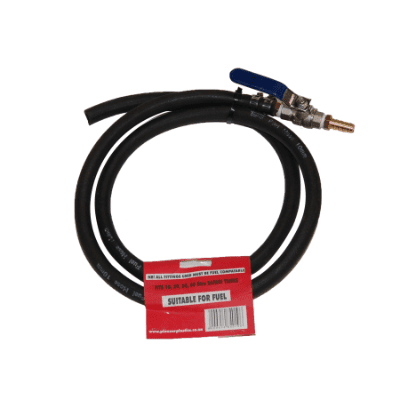

– Poly Diesel Tank 1.5M, 10mm Fuel Hose Kit with Stainless Steel Ball Valve.

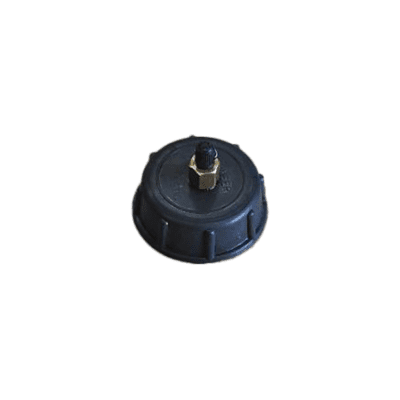

DIESEL TANK CAP W/BREATHER
Vented screw Cap suits Diesel Tanks with part numbers, FTP55U, FTP40J NOTE: Suits early model tanks stamped ‘AUGUST 2023’ or earlier (refer pic).

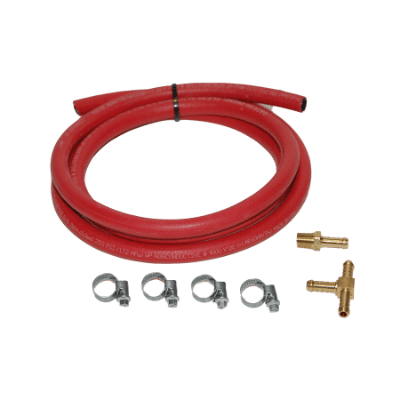

Included in the kit:
Brass 1/4″ BSP male thread to 8mm barb.
Brass Joiner three x 8mm barbs.
Hose clamp 10mm-16mm (304 Stainless Steel).
2 Metres Fuel Tube 8mm.
