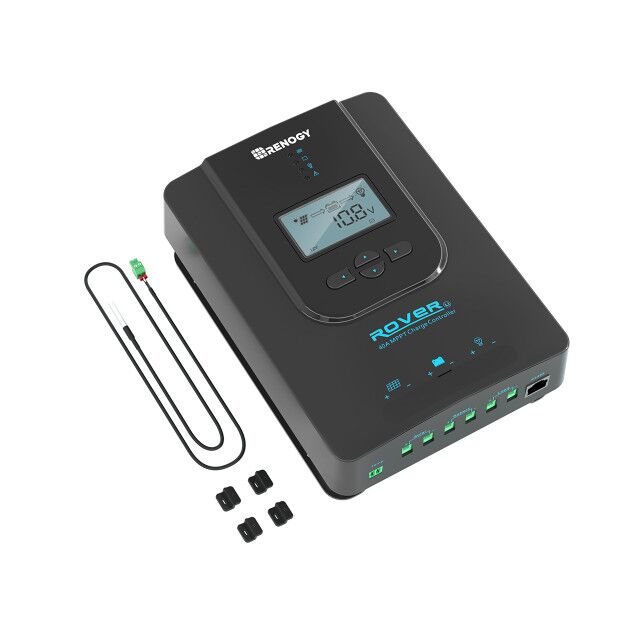

RENOGY ROVER 40 AMP MPPT SOLAR CHARGE CONTROLLER (RNG-CTRL-RVR40)
Electrical Parameters
Rover Li 40 Amp MPPT Solar Charge Controller
An advanced charge controller that maximizes the performance of your solar system.
Powerful Heat Dissipation
Operates at peak performance even in extreme temperatures, ensuring your system is always running smoothly and efficiently.
40A MPPT Charge Controller
Bring Dead Batteries to Life
Operates with 0 Volt batteries by sending small current to get them out of protection mode triggered by the battery management system (BMS).
40A MPPT Charge Controller
Exceptional Resilience and Long-lasting Performance
Designed with materials and coatings that prevent rust and corrosion, ensuring your solar energy system is durable and reliable.
Impressive Output, Enhanced Safety, Multiple Protections, Maximize Your System Efficiency.
The Rover 40A Solar Charge Controller is the ideal choice for both 12V and 24V systems, offering unparalleled versatility, superior performance, and peace of mind. By maximizing power from your solar panels, it ensures optimal charging efficiency, backed by smart features and the best warranty on the market. Perfect for customers who value top-class functionality and innovative design.
Wiring Steps
Do not insert the wires into the space below the socket/hatch, which will damage terminals because of loose connections.
Step 1
Loosen the screws above the terminals to make the socket/hatch descend.
Step 2
Insert the wires into the socket/hatch. The terminals on the Rover 40A can accept up to 8AWG of wires.
Step 3
Tighten the screws to elevate the socket/hatch to complete the wiring.
Power Your Wild Adventures
Designed to excel in a variety of scenarios including RVs, yachts, cabins, and camping. Embrace the freedom of renewable energy wherever your adventures take you.
Nominal System Voltage: 12/24V Auto-Detect
Rated Charge Current: 40A
Solar Input Voltage Range (Voc): 15VDC~100VDC
Max. PV Input Power: 12V/520W, 24V/1040W
Power Consumption: ＜100mA/12V; ＜58mA/24V
Battery Input Voltage Range: 10VDC~32VDC
Ground Type: Negative
Electrical Protection: Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.
Environmental Data
Protection Level: IP32
Operating Temperature Range: -35°C to 45°C; -31°F to 113°F
Storage Temperature Range: -35°C to 75°C; -31°F to 167°F
Operating / Storage Humidity: ≤ 90%, No Condensation
Temperature Compensation: -3mV/°C/2V
Mechanical Specifications
Dimensions: 238 x 172 x 77 mm;9.38 x 6.78 x 3.05 in
Weight: 2.0kg / 4.41 lb
Max. Terminals Size: 8 AWG 10mm2
Accessories
Temperature Sensor: 9.8ft cable length
Certifications
CE: YES
FCC Class B Part 15 Compliant: YES
Warranty
Material and workmanship warranty: 2 Year.
