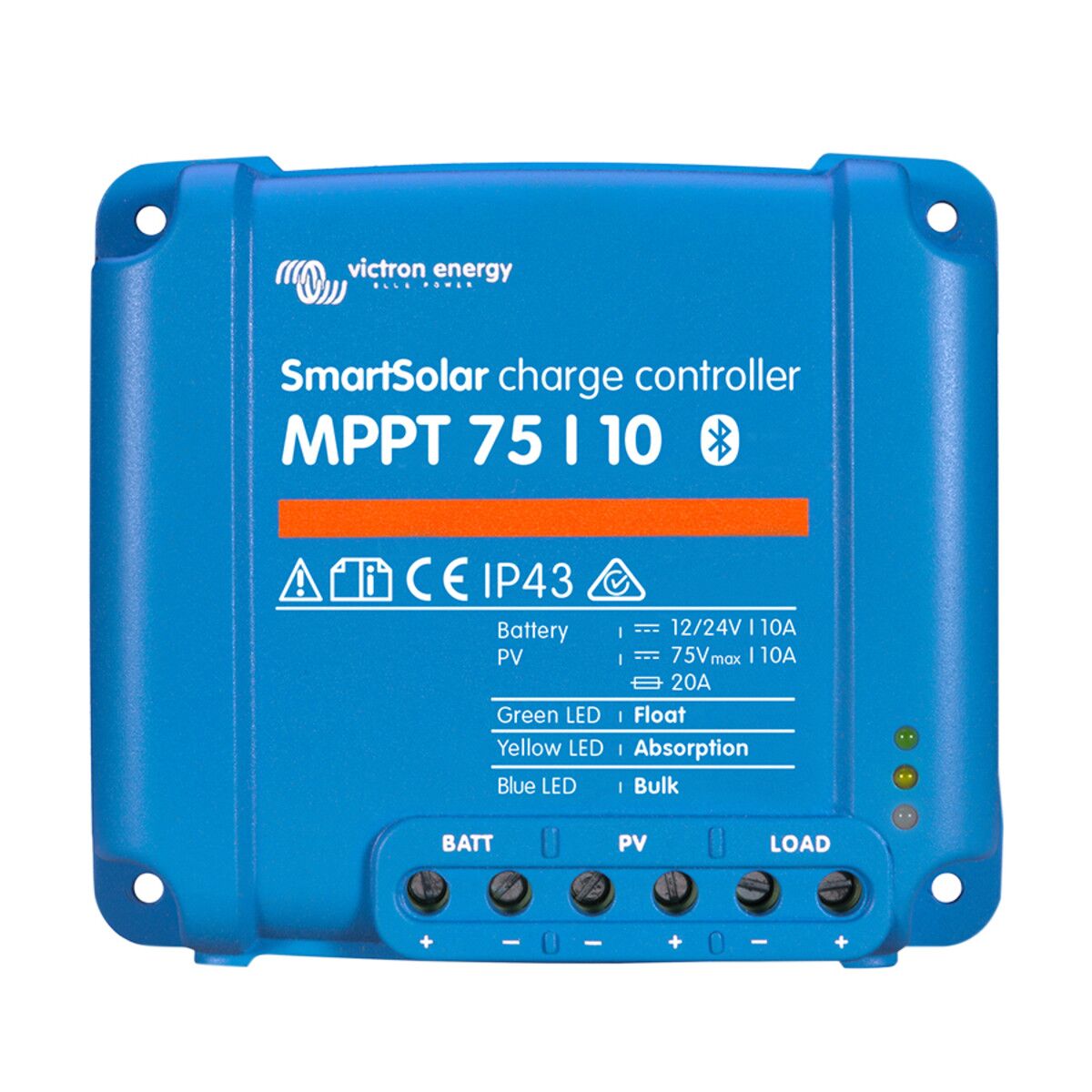

Victron SmartSolar MPPT Solar Regulator; 10A 12-24V / 75V

Suits 12/24V Batteries, max 75V PV arrays, 10A battery charging, 10A Load supply, with Screw Terminals
Victron’s SmartSolar MPPT Solar Charge Controller is a fully customisable, fully featured, connected, regulator solution.

– Flexible charging Algorithms, fully customisable charging features allows for the SmartSolar regulators to be used on a variety of battery chemistries including Lithium
– Outstanding Conversation Efficiency with over 98% efficiency
– Bluetooth Smarts Built-in for easy wireless setup, monitoring, and system synchronisation, including connections to VictronConnect App
– Remote On/Off for connection to VE.BUS BMS
– VE.Direct or VE.Can connections for wired data connection to a Colour Control GX, other GX products, PC or other devices
– Programmable relay, the regulator can be programmed to trip on an alarm, or other events
– Advanced MPPT charging algorithm for optimised charging even in shaded conditions
– Compatible with GX devices for integration into Victron Remote Management Portal (VRM) for monitoring and management
– Optional accessory, SmartSolar Pluggable Display provides a front-mounted screen to show regulator, solar and battery info. It may also be used to program and set-up the regulators.

Weight [kg] 0.5
Depth [mm] 40
Height [mm] 100
Brand Victron
IP Rating IP43 / IP22
Display Interface LED + Bluetooth & optional display
Operating Temperature Range [°C] -30°C to +60°C (de-rates above 40°C)
Compatible Battery Types Flooded, GEL, AGM, Lithium, Other
Maximum Output Current [A DC] 10
Low Voltage Disconnect [LVD] Yes
Adjustable Battery Charging Parameters Fully Programmable
Temperature Compensated Charging Yes – temp sensor sold separately
Mounting Wall
Maximum Solar Array Voc [V DC] 75
Suggested Solar Capacity for 12V Batteries [W] 145
Remote Communications Yes, optional accessory required
Load Control [A DC] 10
Width [mm] 113
Suggested Solar Capacity for 24V Batteries [W] 290
Family SmartSolar MPPT
Regulator Type MPPT Solar Regulator
Battery Bank Voltage 12, 24


Additional information

Weight .4 kg
Dimensions 15 × 15 × 5 cm
