UHF Antenna

UHF Antenna

Camping LanternHilux GUN EGR Valve

$419.00

UHF Antenna

SKU: CDQ5000-B+CDQ3000 Category: Tags: ,

Description

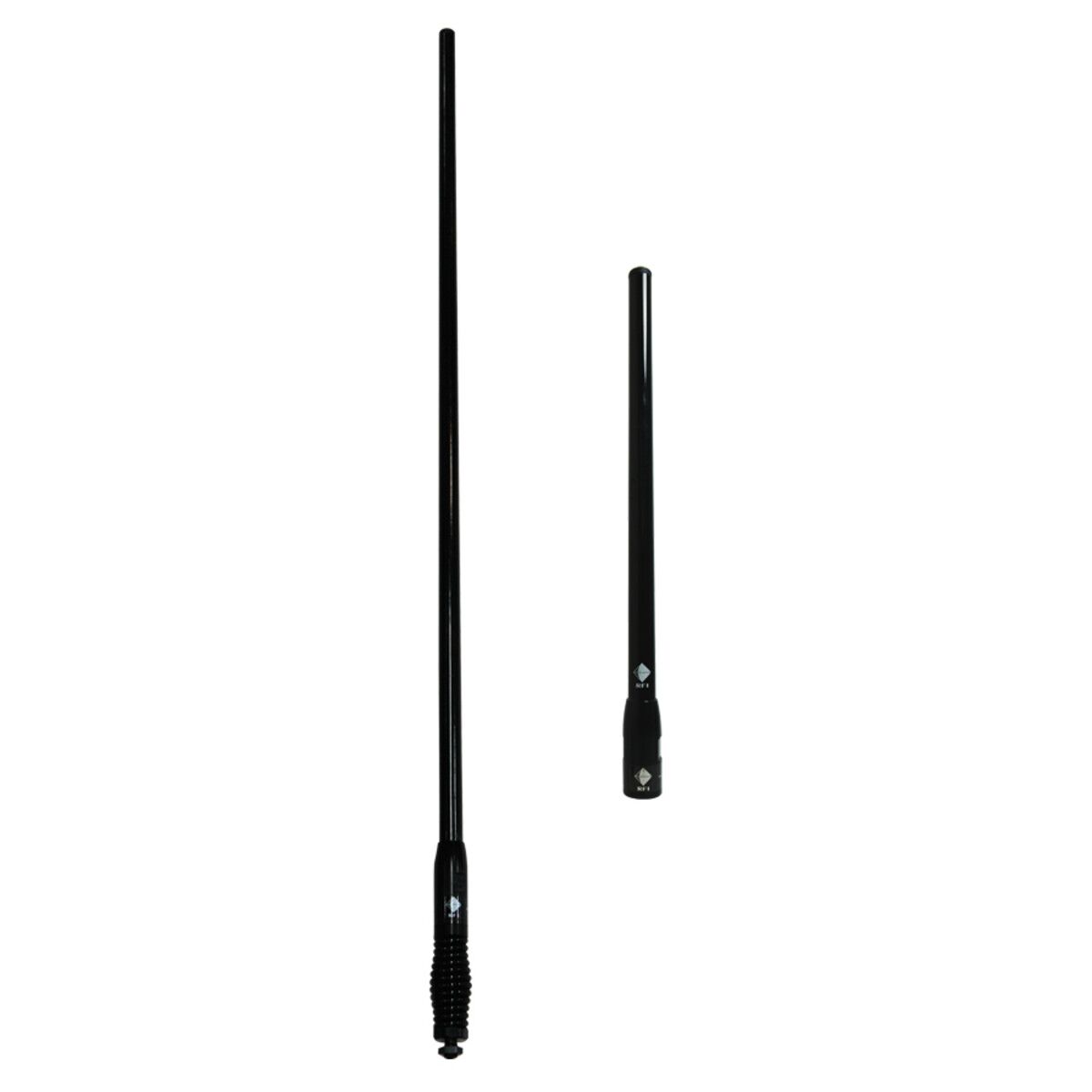

UHF Antenna

RFI UHF CB 5dBi Collinear Antenna (477 MHz); 5m FME(F), UHF(M) Adaptor + CDQ3000 – Black

UHF Antenna kit includes our hugely successful CDQ5000 and our new CDQ3000 whip. The CDQ3000 is super compact at only 515mm long and is based on our hugely successful CDQ5000 antenna and designed to the same revolutionary performance. The secret to this extraordinary performance lies in the use of a unique PCB radiator. The patented Meander™ circuit delivers exceptional consistency in gain and pattern.
CDQ5000-B+CDQ3000. This UHF Antenna kit includes the new CDQ3000 which both employ the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes.

UHF Antenna kit Features:

– Secondly Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
– 5dBi (CDQ5000) & 3dBi (CDQ3000) gain across the full 477 MHz UHF CB band.

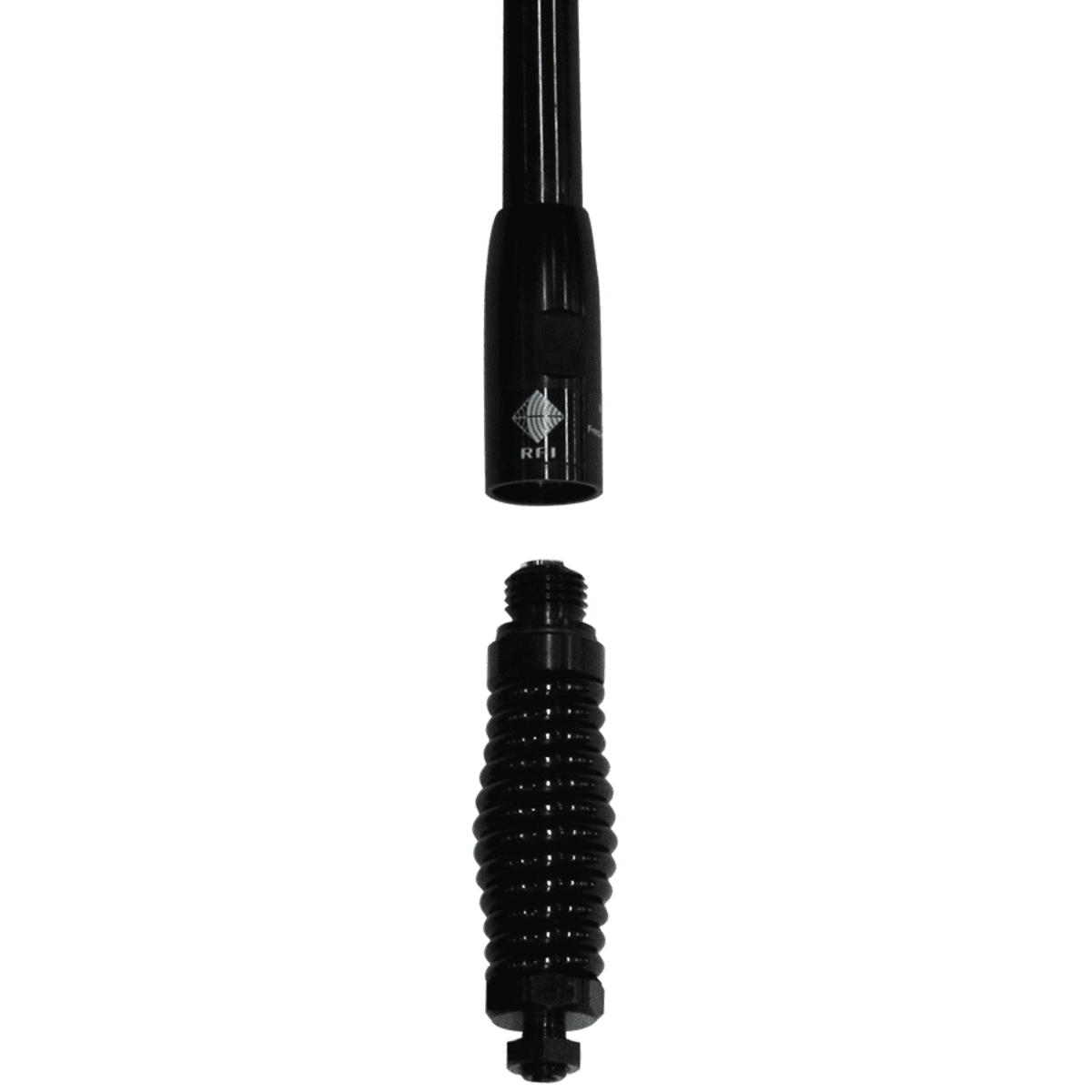

– Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security. – Ground Independent.

UHF Antenna kit Features:

Brand RFI
Mounting Spring Assembly with threaded stud & nut
Length [mm] 515
Frequency MHz 477
Tuned Bandwidth Full. No tuning required
Radome Diameter Mm 22.5 – 18.5
VSWR <1.5:1
Nominal Gain [dBi] 3
Power [W] 25
Frequency Range [MHz] 470 – 490
Connector FME(F), UHF(M)
Band 477MHz
Tuning Supplied pre-tuned
Cable And Connector 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
Whip Material PCB radiating element housed in tapered high impact fibreglass
Packaging Clear hanging bag
Antenna Type Omni
Antenna Application Vehicle Antenna
Frequency Band UHF 380-520 MHz
Antenna Configuration SISO

Additional information

Weight 4 kg
Dimensions 1.4 × 20 × 20 cm
