Description
Smart Lithium Battery

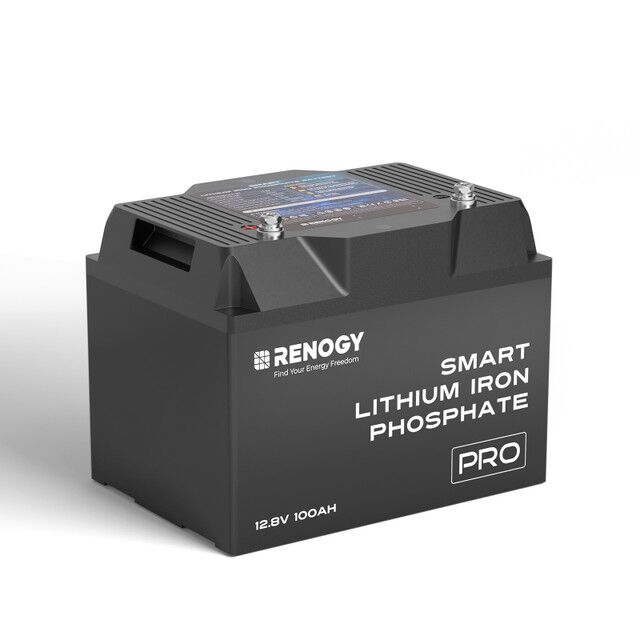

PRO 12V 100A Smart Lihtium Iron Phosphate Battery w/Self-Heating + Bluetooth (5000 Cycles)
Smart Lithium Battery Iron Phosphate with self heating plus bluetooth for easy monortoring run your camp lights even use an Induction cooker, your coffee macine your tv, with a Renogy 3000 watt inverter, charge it with power from the sun solar power can charge with 240 volt can charge with your alternator from your vehicle
- Delivers up to 6% more power than rated capacity for optimized performance.
- Provides 300A for 10 seconds, starting heavy loads efficiently.
- Supports series, parallel, or both connections for flexibility.
- Equipped with a 100A BMS and low-temp cut-off for superior safety.
- Includes a 5-year warranty and 24-hour support for peace of mind.
ELECTRICAL SPECIFICATIONS
Battery Type: Lithium Iron Phosphate
Rated Capacity: 100Ah
Norminal Voltage: 12.8V
Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
CHARGING PARAMETERS
Charge Voltage: 14.4V
Maximum Charge Current: 100A
Maximum Discharge Current: 100A
Charge Temperature Range: 0°C to 55°C / 32°F to 131°F
Discharge Temperature Range: -20°C to 60°C / -4°F to 140°F
Connection Method: Series (Up to 4); Parallel (Up to 8); Series & Parallel (4P4S)
Communication Protocol: N/A
Recommended Terminal Torque: 10 N·m
Protection Rating: IP65
Housing Material: ABS
Terminal Bolt Size: M8
Dimensions: 260 x 169 x 211 mm / 10.24 x 6.65 x 8.31 inch
Weight: 10.5 kg / 23.15 lbs
opc:
ACCESSORIES
Long Terminal Bolts (2): M8
opc:
CERTIFICATIONS
MSDS, UN38.3, FCC , PSE, CE, UKCA, IEC62619: YES
opc:
WARRANTY
Material and Workmanship Warranty: 5 Years Warranty
Renogy 12V 100Ah Core Series LiFePO4 Battery
100Ah Core vs. Lead-acid
Upgrade to lithium for next-level performance.

100Ah Core vs. Other LiFePO4
Unmatched performance for your most demanding energy needs
Extra Juice. More Possibilities.
The Renogy 12V 100Ah Core delivers more than expected. With a max. 6% extra capacity, you’ll be ready for unexpected storms, hurricanes, wildfires, and other challenges when you need it most.
Powerful to the Core
Providing consistent power that lasts nearly 10 times longer than a standard lead-acid battery, the Renogy 12V 100Ah Core LiFePO4 Battery uses EV-grade battery cells for long-lasting performance.
Year-round Protections

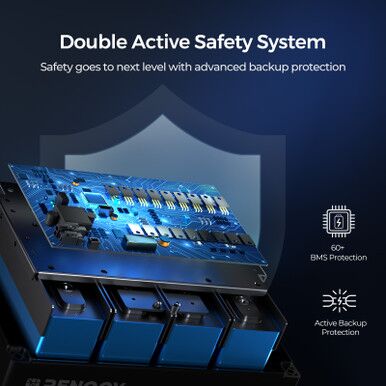

The built-in 100A battery management system (BMS) ensures peace of mind for year-round use. The low-temperature cut-off prevents charging when temperatures fall below 32°F, protecting your battery.
Protections Against Bumps
We know the road can be bumpy. That’s why the battery features a rugged structural design to keep components safe from impacts during your travels.
Connect in Series
Connect in Parallel
Connect in Series-Parallel
Extend Your Cabin Retreat
Transform your cabin into a comfortable, off-grid retreat. By connecting 8 100Ah Core batteries in parallel, you can power your cabin for up to 4 days, even running air conditioning and refrigerators. Experience total convenience and relaxation in your off-grid haven.
Power Your Journey Longer
Whether you’re a weekend adventurer or a full-time nomad, Renogy Core 100Ah LiFePO4 batteries provide easy power access. Connecting 4 batteries in series extends your RV’s power supply, offering 2 days of off-grid energy for added comfort.
Enhance Your Workshop Power
Connect 16 100Ah Core batteries in series-parallel for your off-grid workshop, ensuring ample power for your tools. With up to 2.5 days of uninterrupted power, fuel your DIY projects without a hitch.
Dimensional Reference Guide
Before installation, ensure you leave 1.97-3.94 inches (5-10 cm) of clearance above the battery, and at least 7.87 inches (20 cm) on the side with busbars for proper installation.
