Description

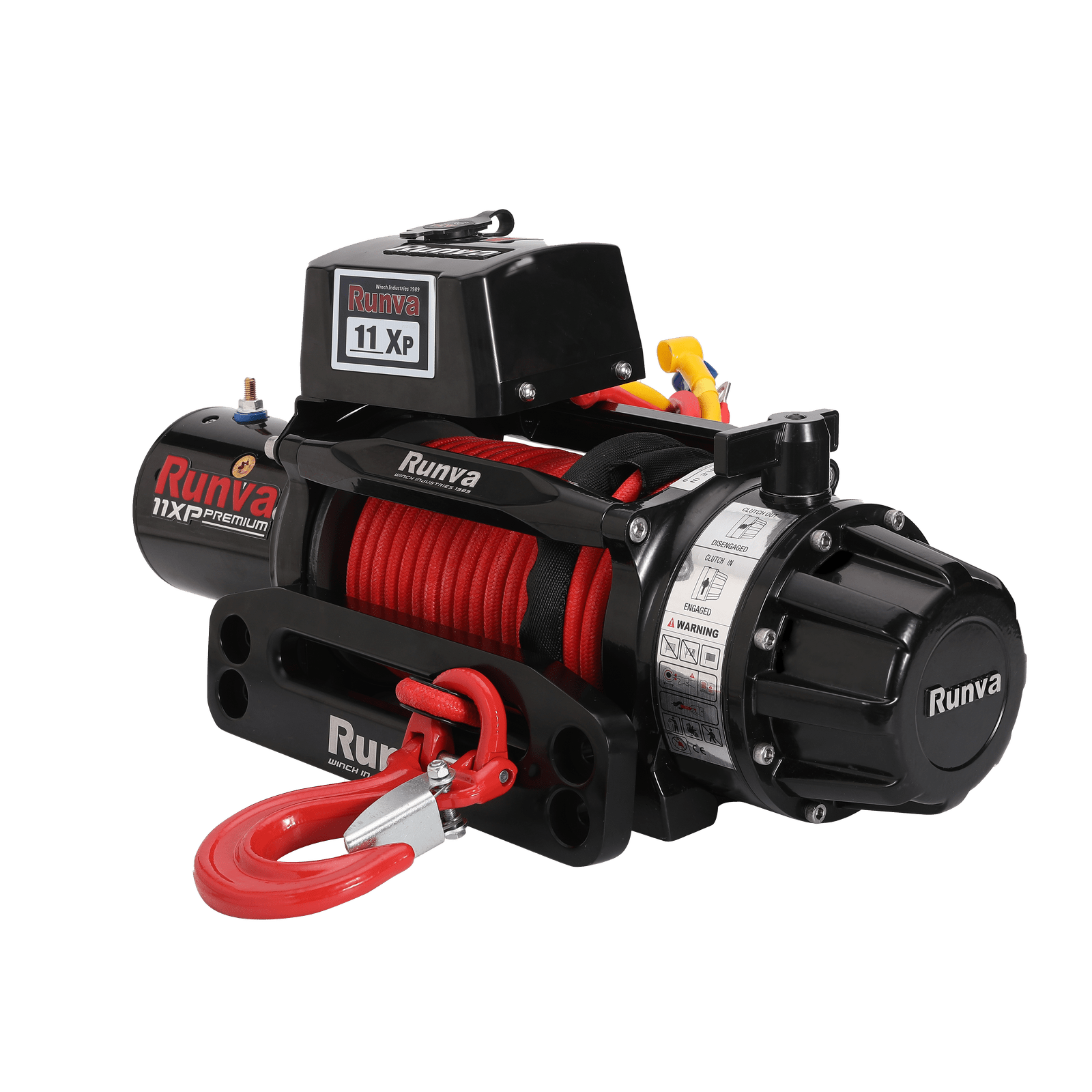

Runva Winch 11XP Premium RED Edition 12V Winch
The Runva Winch 11XP Premium RED Edition 12V Winch gives you serious recovery power. Plus, it stays simple to operate when things get tense. So, you spend less time guessing and more time getting unstuck.
It suits many popular 4WDs, including Hilux, Ranger, and LandCruiser. Also, 4WD 24/7 features this exact model with Shauno and Graham. Therefore, it’s proven in real-world recoveries.
[ADD IMAGE] Runva Winch 11XP installed on bullbar (hero image).
Suggested caption: “Runva Winch 11XP Premium RED Edition installed and ready for recovery.”
Runva Winch Power and Pulling Performance
This Runva Winch uses a strong 6.7HP motor. As a result, you get confident pulling power under load. It also delivers a big 11,000lb (4,990kg) line pull. So, it handles steep pulls and bogged recoveries with more control.
Just as importantly, the 3-stage planetary gearbox drives the drum smoothly. In addition, the 228:1 gear ratio helps deliver torque. Therefore, you get steady performance when you need it most.
[ADD VIDEO] 10–20 sec clip: winch spooling in + pulling under light load.
Suggested caption: “Fast control and smooth pull from the Runva Winch 11XP.”
Runva Winch Rotary Clutch and Fast Freespool
The stainless steel rotary clutch is a major upgrade. Plus, it feels solid in your hand. You can freespool the synthetic rope with less resistance. Therefore, setups feel quicker and easier.
Also, faster rope deployment helps in recoveries. For example, you can rig a strap sooner when weather turns. So, you keep the job moving.
[ADD IMAGE] Close-up of the rotary clutch.
Suggested caption: “Stainless rotary clutch for quick freespool.”
Runva Winch Rope Strength and Drum Safety
This Runva Winch includes a double-braid synthetic rope. It’s tough, and it also stays easier to handle than steel cable. In addition, it rates to 22,500lb. Therefore, you get extra strength in demanding pulls.
You also get Runva’s Rope Lock system. It secures the rope tightly to the drum. As a result, the rope sits better and can reduce movement during repeated use. Also, it adds confidence during heavy winching.
[ADD IMAGE] Rope drum + Rope Lock detail shot.
Suggested caption: “Double-braid synthetic rope with Rope Lock security.”
Runva Winch IP67 Protection and Ratchet Brake
This model carries IP67 protection. So, it handles water and dust far better on muddy tracks. Also, it suits harsh Aussie conditions. Therefore, you can tour with more confidence.
The winch also uses an automatic ratchet brake inside the gearbox. It helps prevent rollback. Plus, it avoids brake pads. So, you don’t rely on parts that wear out fast. In addition, it supports long-term reliability.
[ADD IMAGE] Winch in real off-road conditions (mud/water splash).
Suggested caption: “IP67 protection for harsh tracks and wet recoveries.”
Runva Winch Control Options
You get three control methods. Therefore, you can run recoveries your way.
-
In-cab rocker switch for quick control
-
Wireless remote for distance and safety
-
Handheld remote for close-range control
Also, these options help you choose the safest position. For example, you can step away from the line path. So, you stay in control with less risk.
Runva Winch Fitment and Dimensions
Installation is straightforward. Plus, the common mount pattern suits many bars. However, you should still confirm fitment on your setup.
-
Mounting bolt pattern: 254mm x 114.3mm
-
Drum size: 63mm x 217mm
-
Winch size: 574mm (L) x 177mm (W) x 196mm (H)
-
Includes two 1.8m heavy-duty battery leads
-
Finish: black powder coat
Also, the layout keeps things tidy. Therefore, it looks clean once installed.
Runva Winch Accessories and Air Clutch Note
This Runva Winch includes bonus gear to round out your kit. Plus, it helps speed up setup on the day.
Important note: this version needs the specific air clutch SKU: AIRCLUTCH3S. So, don’t order the standard model by mistake. If you want an air clutch setup, choose AIRCLUTCH3S to match this winch.
Runva Winch Shipping and Warranty
Shipping stays compact for a heavy-duty winch. Also, packaging protects the unit well.
-
Shipping weight: 42kg
-
Carton size: 0.63m x 0.33m x 0.33m
Warranty gives you extra peace of mind too:
-
5-year electrical warranty (limited)
-
Lifetime mechanical warranty
Therefore, you can buy with more confidence.
Runva Winch Key Features
-
11,000lb (4,990kg) rated line pull
-
12V 6.7HP (5.0KW) motor
-
Steel 3-stage planetary geartrain
-
228:1 gear ratio
-
Stainless rotary clutch for easy freespool
-
Double braid synthetic rope (10mm x 25m)
-
Automatic ratchet brake in gearbox (no pads)
-
IP67 water and dust protection
-
In-cab rocker + wireless + handheld remotes
-
Rope Lock system for added security
-
Compatible with a wide range of 4WD builds.
Why Choose the Runva Winch 11XP Premium RED Edition?
If you take recovery seriously, this winch makes sense. It combines power, control, and durability. Plus, it adds features that make setups faster. Therefore, it’s a strong choice for touring and tougher tracks alike.
Buy with confidence and head off-road ready. Because when conditions change, you want gear that works.
SKU: 11XPPREMIUM12VDREDWH
