Description
12 LED LIGHT BAR DRIVING LAMP LIGHT BAR SPOT BEAM 9-36V 60Watt 5,400Lmns
Per car quantity: 1

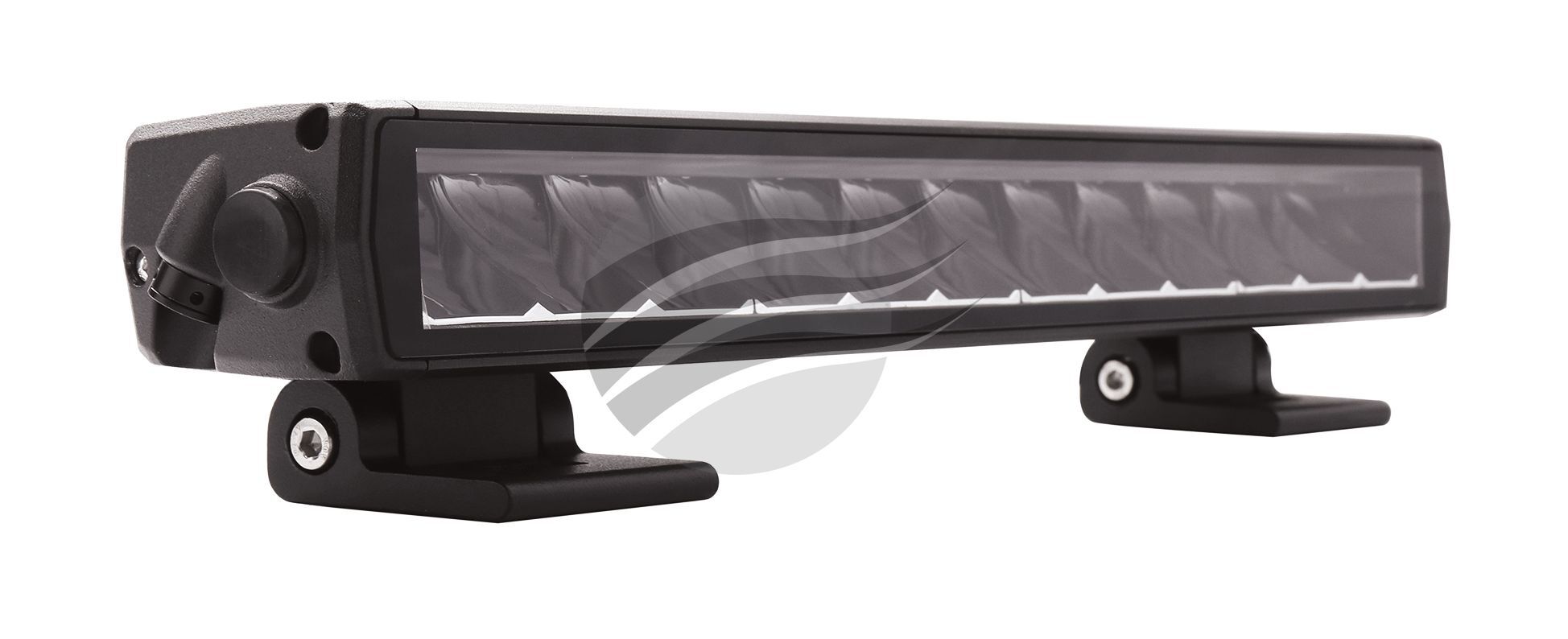

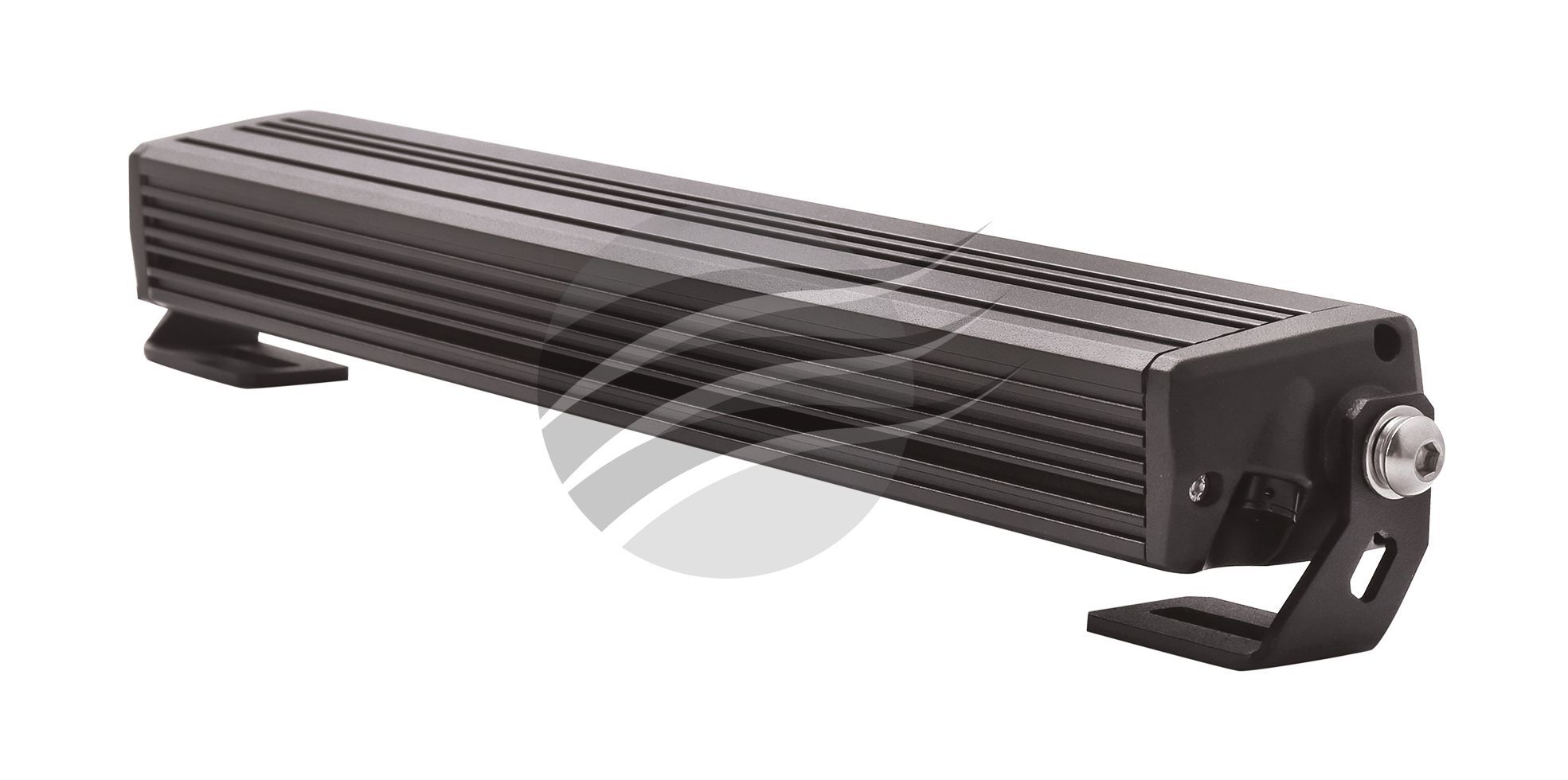

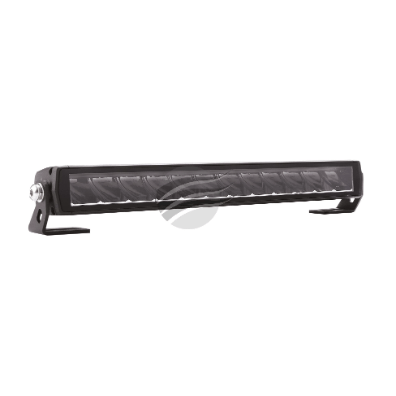

Ignite LED Light Bar Ultra Slimline Single Row LED Driving Lamp Light Bar 9 – 36 Volt 60 Watt.
Spot (Pencil) Beam Pattern 15 Degrees.
12 x 5 Watt High Intensity LG LED’s.
5,400 Raw and 4,600 Effective Lumens and 6,500K.
146,875cd Peak Beam Intensity.
Current Draw: 3.8amp @ 12 Volt and 1.66amp @ 24 Volt
Polycarbonate Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens.
Light Transmittance >95%.
Integrated Electronic Thermal Management (ETM).
Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent.
Wiring Harness to suit sold separately click here
Additional Information about this LED Light Bar:
Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets.
Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length.
500mm Lead with 2 Pin Deutsch Plug.
Over and Under Voltage Protection.
Reverse Polarity Protection.
UV, Water and Shock resistant.
Anti Rust, corrosion and freezing resistance.
50,000 Hours LED Lifespan.
ECE R112 (Ref 30), R10 and CE Approved.
IP68 and IP69K Rating.
Environment Temperature: -40°C ~ +60°C.
5 Year Warranty.
Weight: 800g
Parts for this LED Light Bar :-
| Specifications | |
| Series | Other |
| Type | LED |
| Voltage | Multivolt |
| Watts | 60W |
| Beam Type | Spot |
| Rows | Single |
| No. of LED | 12 |
| Mount | Other |
| Width (mm) | 358 |
| Height (mm) | 56 |
| Depth (mm) | 53 |
ILB602
